Active Storage

Background

I have been using shelving for storage and have run out of shelf space.  When looking at most shelves they are loaded in such a way that it's almost impossible to know what's on them because the stuff in front hides the stuff in back.  Shelving is good for displaying items when the depth of the shelf is slightly deeper than the item.

Storage has a meaning that relates to putting something into a warehouse or storage building in a remote location, aka dead storage.  So this page is called "Active Storage" since what I'm trying to do is have more things near where I am.

The problems with shelving:

•  don't know what's behind the front stuff
• can't easily access the back items
• inefficient use of the volume

A solution seems to be drawers.  Drawers are open on the top face rather than the front face and so are more efficient.  But deep drawers (or boxes) have the same problem as deep shelves in that it's hart to get to the stuff on the bottom layer and to access it.  So a solution is not just drawers, but shallow drawers.  The problem is there are not any on the market, or they are hidden.

Another problem is that the sides and bottom of a drawer take volume, so it would be best if the drawers were aluminum or other thin material rather than wood.

Shallow Drawer Design

It may be more efficient to just scrap the existing shelving, but I'd rather incrementally add shallow drawers so they need to be sized to fit on the existing shelves.

If you have already done this or know of a solution please let me know.

First Prototype Cardboard box
	Found cardboard boxes (S-4177) that fit shelves.  They do offer more efficient use of the volume but have a problem with accessing items on the bottom of the box.  If filled solid with books or paper, etc. one box can be too heavy to move. Three boxes fit on the large spaced shelves.
Second Prototype Cardboard Drawer
	at the right side of photo. Made four drawers from two cardboard boxes.  They do not "stack".  The heavier the drawer the less likely it will stack.  When pulling out a drawer with one or more drawers above it, the upper drawers drop down.  But so far that's not a problem.  It does not happen all at once.  With small drawers the contents are not too heavy.
Third Prototype Wood Drawer	11 Feb 2008 a simple wood drawer.
The wood thinkness wasts a lot of space.	Materials: Front, Back * Sides: 1x3 solid wood Bottom: 1/2" plywood #6 screws. Just to try the construction made a drawer for one of the shelves in front of my desk.  The opening is: 8.375 wide x 3.25 high x 11.75 deep,  about 320 cu in. The inside of the drawer is 8 wide x 2.75 hi (3.25 - .5) x 10.5 deep, about 231 cu in i.e. is only 72% efficient. This is simple construction using 1x for the front. Just looking at the surface area: 98 sq in for the case and 84 for the drawer, or 85%.
Forth Prototype Cardboard Drawer
	12 Feb 2008 - Drawer made from USPS Priority Box cardboard.  I get a number of items shipped in Priority boxes and so have this material on hand.  Looking for a source of it new for a battery adapter, if you know tell me. This drawer has 0.066" thick walls and bottom.  Notice the tape dispenser and next to it the stapler are standing.  This is a great solution.  The only problem that needs to get fixed is when you pull out the drawer you also pull out the shelf.  When the shelf gets a couple of inches out it falls off the rear support pins.  There are a number of ways to fix that, need to think about which to use.

Full & Half Size Boxes

S-4177 Box flat as shipped 28 7/8" wide x 23 1/4" high	S-4173 Box flat as shipped. 28 7/8" wide x 17 7/8" high.
Inside:    17 1/4" deep x  11 1/4" wide x 12 1/8" high w/ folding lid on top. Outside: 17 1/2" deep x  11 1/2" wide x 11 7/8" high	Inside: 17 1/4" x 11 1/4" wide x 6" high w/folding lid on top Outside: 17 1/2" deep x  11 1/2" wide x  6 5/8" high

Shelving

	Replacing board and brick shelving is an industrial metal storage rack.  The vertical columns are 36" long allowing the rack to be built either as shown at the left as one tall shelving unit, or they can be fitted side by side forming a 6' wide shelving unit that's 3' high.  There are a couple of coupling pins in the box to link the two side by side units together. Outside dimensions: 36 1/2" wide x 18 1/2" deep x 72" high. The height between the top of a shelf and the lip of the next higher shelf starting at the bottom is: 14 1/2", 14 1/2", 16", 14 1/2", to ceiling. The center shelf must be installed halfway so as to link the top and bottom columns. The width at the front between the two angle iron columns is 33 3/4".  Since the above boxes are 11 1/2" wide three of them need 34 1/2" which is a little more than the front gap width, but by either placing the left and right boxes first or by pushing the existing boxes all the way to the other side and angling the side box you can easily place three boxes side by side. In the lower left corner of the photo you can just see the wood of another shelving unit that will shortly also be replaced by another of these PR1200 Pro racks.
	After putting some of the boxes on the shelves.  The half height boxes ( S-4173) have had their top flaps folded down inside and so are more like deep trays than boxes.  Because of that the top box may not sit squarely on the one under it, but that's no big thing.  Having the tops open makes it very easy to access the contents. Note the top shelf has not been used yet.  This is not the final arrangement of boxes and test equipment. In the lower left of the photo you can see the wood bookcase with the FAX on top that will be replaced very shortly.
	There is another size of shelving unit that looks very similar to this one except the shelves are 24" deep instead of 18" deep.  It takes up more floor space and since I don't have boxes that are modular to that depth (i.e. 24" deep, or 12" deep, etc.) it's not a good choice for me.  Maybe good if the correct boxes were available.

These are being assembled in a shipping container. One person Assembly Dateline Products Model 01200 Same for the Gorilla Rack shelving Note: install shelf boards as each level is completed as a check to be sure that the locking pins are properly aligned. If they are not the shelf will no fit.	Adding top angle uprights

Wall Mount Bookshelves

The most economical way of adding a lot of bookshelves is using the wall mounted rail system with metal brackets.  The commercial system is much lower cost and stronger than the ones at the hardware store.
Econoco SS12/96 96 x 06875 x 040625 Heavy Weight Standard Single Slot Satin Zinc Staples Item # 218927  - 8' high
Econoco WBC12 12 Wood Shelf Bracket Satin Zinc Center Staples Item # 219130 - for 12" shelf

Fig 1 Using small magnets to visualize stud location.	Fig 2	Fig 3	Fig 4 PS the TV series Fortitude is a cautionary tale about climate change.	Fig 5
Fig 1 Econoco WBC12 12 Wood Shelf Bracket	Fig 2

Closet Shelves for Boxes

Before

Installed

Bracket Detail  1-1/2", 2-1/5" & 1-1/2" brackets.

I'd like to use the closet in my work room (spare bedroom) to store cardboard boxes as described above by adding shelving made up of 1" x 12" lumber which is really 3/4" (19mm) x 11-1/4".  Two 1 x 12 shelves side by side will make a shelf that's 23" deep.  From the back of the closet molding to the back wall is 23-1/2" so they will just fit.

To join the shelving and risers Häfele Minifit cam lock connectors and both single ended and double ended pins will be used.
It turns out these fittings are nearly impossible to get and require a precision fixture so that they will properly line up.  So plain old screws will be used.

My existing 3 foot span bookcases have some bow in the shelves because books are heavy.  So the unsupported span for these shelves will be just over two feet.  The vertical supports are four pieces of 1/2" plywood.

The design is based on two free standing cabinets with additional shelves installed between them after the two cabinets are placed inside the closet.

It was necessary to remove the two metal support brackets and the clothes hanger rod in order to fit the shelving.

Each shelf is made up of two 1" pine boards1 1 x 8" and  x 10".  All but four of the No.8 by 1-1/2" screws in a box of 100 were used as well as 24 right angle brackets for the center shelves.  The long brackets used between the two boards are Ace Hardware 5289277 2-1/2" Inside Corner Brackets and the short brackets used at the front and back are 1-1/2" by 3/4" 206-920 Inside Corner Brackets both of which are held on their sides by No. 8 by 5/8" screws and only the 2 top center shelves have screws up into the bottom of the shelves installed.  The other center shelves are just sitting by gravity.

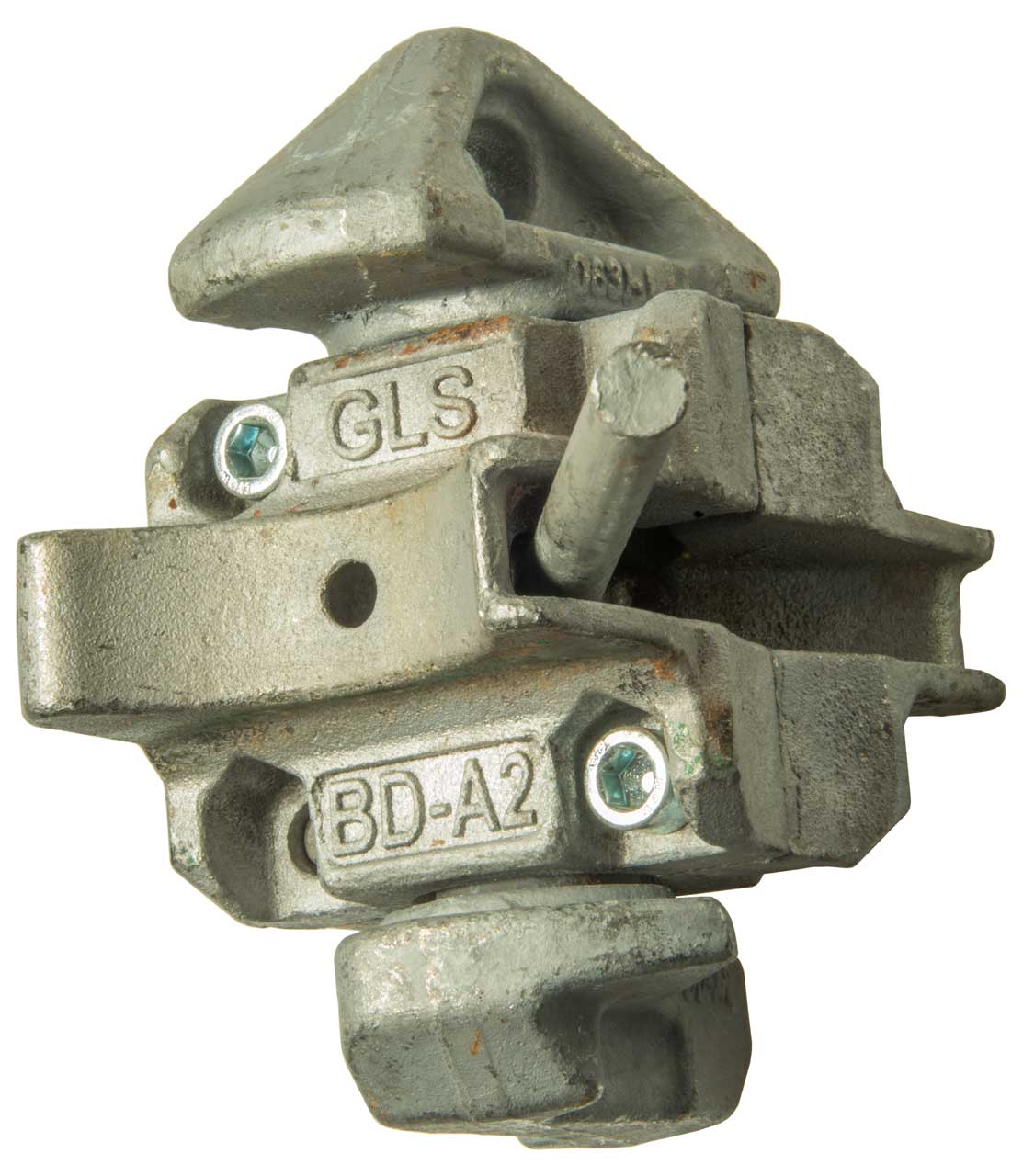

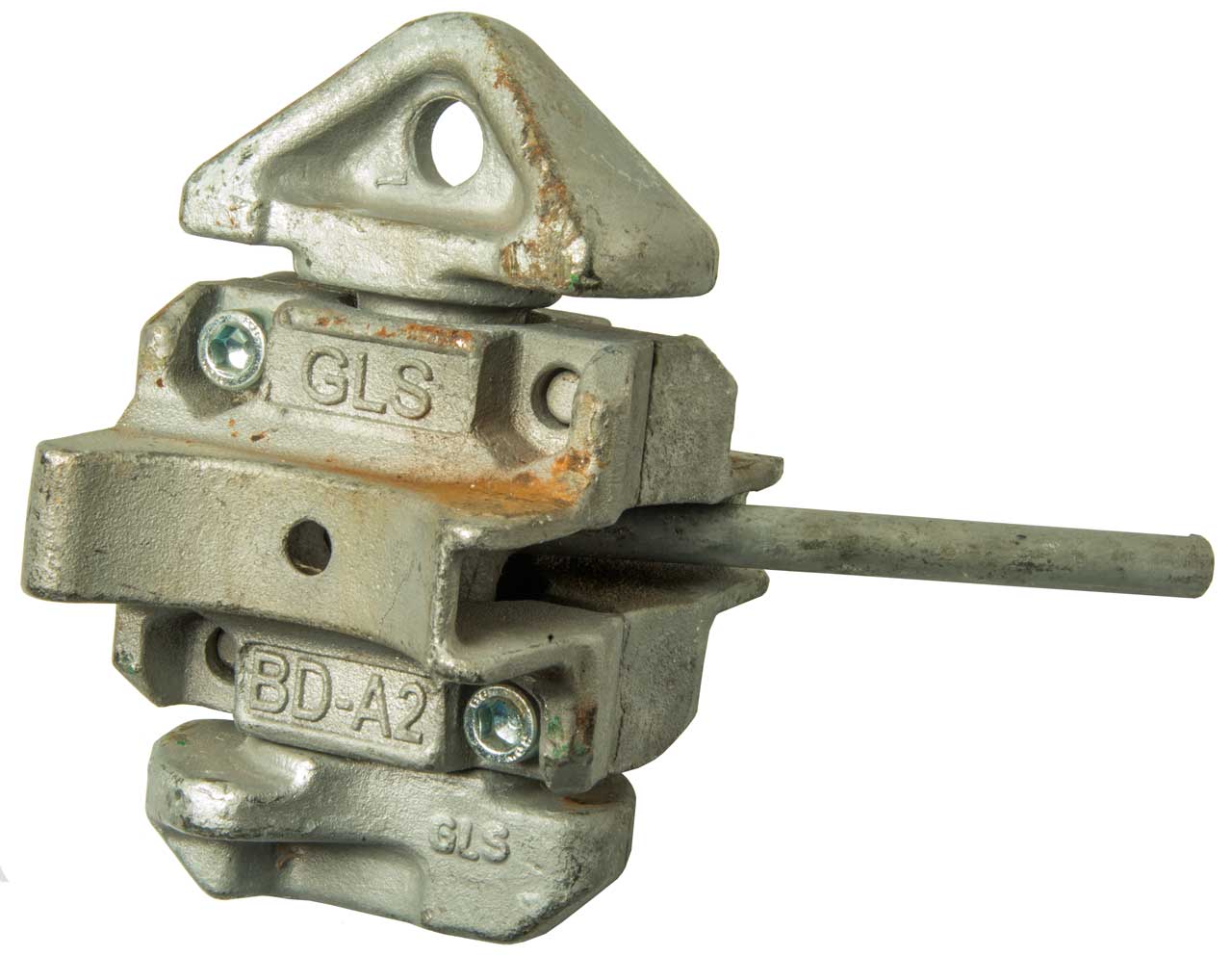

Shipping Container (20')

The left 20' shipping container is full and the one at the right is empty. The flat bed truck that delivered the new container needs a few feet on all sides so that the tie down straps can be removed. So the new container is not cheek to jowl to the old one.	See the 48" High Lift Farm Jack page for information on moving the new container.

2853968 Apparatus for shipping freight, Malcolm P Mclean (Wiki), App: 1954-08-26, Pub: 1958-09-30, - Ship to hold containers Fig 1 & 2 3,000 tons container weight, 600' ship. Fig 3 ship Section Fig 4 ship section Fig 5 ship section Fig 6 Three containers side by side Fig 7 a container seat, Fig 8, 9 & 10 seat sections
3027025 Apparatus for handling freight in transit, Keith W Tantlinger, Sea Land Service, 1962-03-27, - YouTube: How Shipping Containers Took Over the World (then broke it), 31:46 - Book on order: The Box: How the Shipping Container Made the World Smaller and the World Economy Bigger, 2nd Ed, Marc Levinson, 2016
page1 side with ship's hull	page 2 Box above trailer	page 3 side & top view of Box on trailer
page 4 Rear view box above trailer	page 5 Section 6-6	page 6 Section 8-8
page 7 End elevation	page 8 Interlocking box & trailer; section 12-12	page 9 cutaway box side elevation
page 10 cutaway box plan view	page 11 Elevation: Crane beam above box & connected	page 12 Two stacked boxes
page 13 Box on deck	page 14 Box to Box coupler	page 15 Lug vehicle body or box
page 16 Bottom view with Refer	page 17 Front corner & rear corner cross sections	page 18 Rear roof cross section & Wall C.S.

IBC Tanks

These are very economical if you can pick them up to avoid shipping costs.  Under $100 for either 275 or 330 Gal sizes.  Even with a new bottle under $400 is a much better deal than other tank configurations for the capacity.  The problem is these show up on the used market and you do not know what was in them.  If your use is for drinking water this is a problem.

Intermediate Bulk Container (Wiki: IBC) tanks are commonly available in a couple of sizes:

	Pallet Width	Pallet Len	Height	lbs
275 Gal	40"	48"	46"	135
330 Gal	40"	48"	53"	195

Note that a standard US wooden pallet (Wiki) is 40" x 48"x 6".  This allows it to be moved through doors inside a building.
A 55 Gal. drum (Wiki) has an outside diameter of 23" x 34.5" high, so two of them are 46" and a standard pallet will hold 4 drums.  But they only hold 4 x 55 Gal = 220 Gal and the height of the pallet and drum is 40.5".
The IBC tank holds more (275 Gal or 330 Gal) in the same floor space.

		4676373 Plastic pallet container, Helmhold Schneider, 1987-06-30, - fastens to standard wood pallet. Missing the metal parts that act as a pallet replacing the wood pallet. Has center fill cap and bottom discharge valve which all of the below patents have.
		5002194 Fold up wire frame containing a plastic bottle, Dwight E. Nichols, Hoover Group Inc, 1991-03-26, - Note in order to fold up the vertical corners are made up of two rods.  Fold up makes it more expensive to make. Modern cages do not fold up.
		5269414 Intermediate Bulk Container, Olivier J. L. D'Hollander, Dow Corning, 1993-12-14, - bag in an all plastic box. No stackable metal frame.

Have not found patent for the current system of all metal stackable and forklift compatible cage with polypropylene bottle.

120 Square Foot Permit Free Buildings

Pallet area is 40" x 48" = 1920 sq in = 13 1/3 sq ft.
120 sq ft permit free building / 13.3 sq ft per pallet = 9 pallets in the building
3 * 40 " = 120" = 10'
3 * 48" = 144" = 12'
So a building that was 10 x 12 feet on the inside could hold 9 pallets. But a building that is (permit free building)  120 sq ft outside dimensions can hold fewer, but how many?

The local building code has a provision for storage buildings where no permit is required if they meet some rules:
"1. What types of projects do not require a building permit?
a. One story detached accessory buildings used as tool and storage sheds, play houses and similar uses, provided the floor area does not exceed 120 square feet (electrical service requires a permit)."

So it may be possible to design a storage building optimized to hold the above metal storage racks where the cost of the building would be lower than buying an Intermodal Shipping Container.

Note the containers I have are 8' x 20' (160 square feet floor area) and the permit free storage shed is specified at 120 square feet maximum so it should cost 120/160 75% less than a container to be at the same cost per square foot of floor area.  So the 120 sf building should be on the order of $1500 max (2014 containers are about $2,000).

The internal dimensions of the storage shed should allow for a maximum number of metal storage racks and room to access them.
The construction should be weather proof and easy to build.

There's a 30 foot height limit on building in general that also applies to the permit free storage shed.  If multiple floors are used then some type of dumbwaiter (Wiki)  or stairs would be needed to move the items.
57928 Elevator, R.W. Lawrence, 1868-09-11 - counter balance, complex rope path
397228 Mechanism for operating dumb-waiters, G.M. Emerick, 1889-02-05 - electric motor and steel cable winch.

Temporary Car Port (Canopy)

I have a 10' x 20' one now and the problem is that the bungee cords with the ball on the end biodegrade because of the ultraviolet rays from the sun.  Another problem is that the tarp also disintegrated for the same reason.
The tarps seem to last a few years at most and maybe only last less than 2 years.  The main problem is UV breaking down the tarp and the bungee cords.  The parachute shroud lines hold up very well but they need to be installed with some slack so as to not cause excessive tension with the change in size caused by the summer to winter temperature differences.
19 Dec 2015
A possible improvement is to:
1. Use pipe insulation sleeving to lift the ridge line up off the pipe frame to lower wear.
2. Place the new tarp under the old tarp.  The idea is that the old tarp will offer some sun protection for the new (bottom tarp).
3. An idea is to paint the top of the tarp with white outdoor paint that's UV resistant to help protect it.  But have not tried that yet.

This one seems to have some improvements in terms of a flap that protects the bungee cords from the sun.
The ShelterLogic Max AP 10 ft. x 20 ft. White All Purpose 6-Leg Canopy might be an improvement.  It was designed to be easily transported, i.e. it fits into a carry bag (# 15577) that's 42" x 20" x 18".  Some of the tubes fit inside other tubes to save space.  This means that this shelter probably costs more than one that uses longer tubes or tubes that are harder to take apart to move/store.

There are a number of accessories:

Part No.	Description
25757	Max AP 10 ft. x 20 ft. White All Purpose 6-Leg Canopy
25772	Enclosure Kit with Windows & Zip Up Door
25730	Extension Roof Kit for both sides (adds 2 ea 7x20' roof panels & poles)
25775	10 ft. x 20 ft. Sidewalls and Zip Up Doors Kit  (no windows)
25777	Screen Kit (like enclosure kit except all sides screened)
10075	30" Earth Auger kit (replaces? 10073 Earth Auger kit)
15577	Store-IT Canopy Rolling Storage Black Bag

References

Ref 1. Shipping Containers: The Box that Changed the World, 18:33 -
Ref 2. DIY Storage Solution With A Secret (You Won't Believe How It Works!), 21:16 - based on Levrack, comes in 7', 8', 10' & 12' heights, all 30" deep x 7.5' wide.  Similar to Mobile Shelving except moving shelf units hung from a pallet rack rather than use ground mounted rails.  The comments have many ideas for improvement/lower cost.  Many accessories offered.

Size	Width	Height	Depth	$
7'	7.5'	7'	2.5'	3850
8'	8.5'	7' or 8'	2.5, 3' or 4'	5450 4700
10'	10.5'	7' or 8'	2.5, 3' or 4'	6550 5800
12'	12.5'	7' or 8'	2.5, 3' or 4'	7650 6900
