AN/GRA71-PRC316 Adaptor Unit
5280-99-110-7694
5820-99-114-5954 (hand written inside)

© Brooke Clarke 2000 - 2007

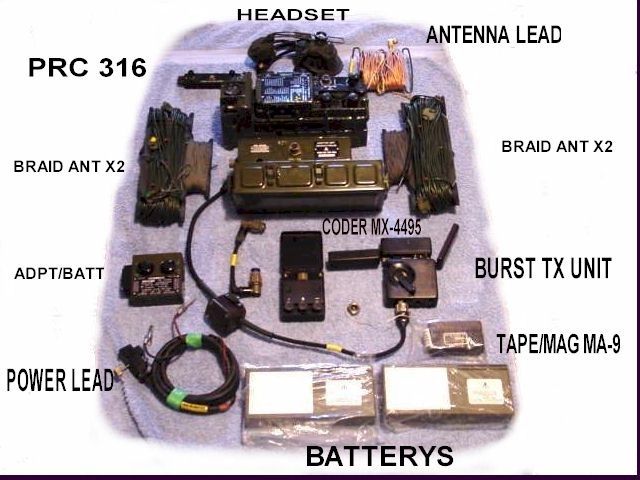

This is a vairant of the GRA71 that works with the British PRC316 1972 Long Range Patrol Radio HF (SAS UK). Photo of Set.

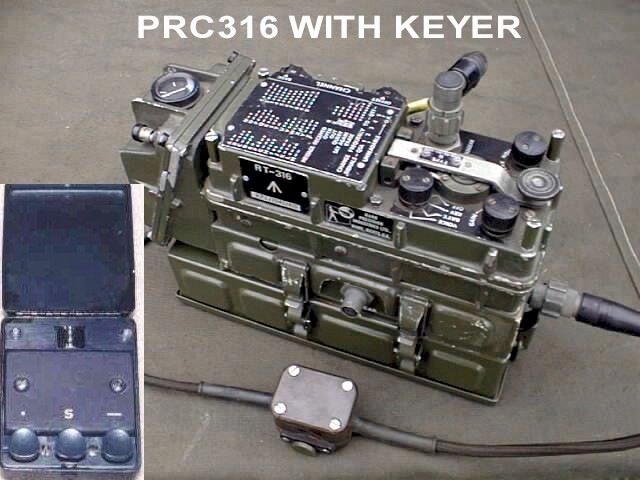

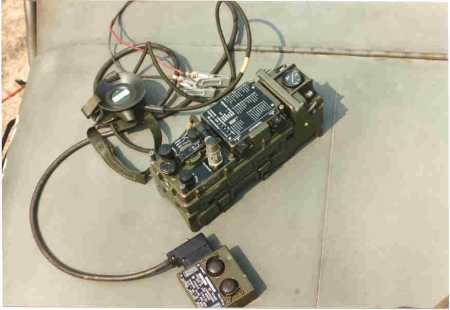

Photo of PRC-316 and PRC-316 Set -

From PRC Data series by Dennis Starks:

"UK/PRC-316; Manpack portable HF/AM/CW transceiver. Built in the United Kingdom originally as the A16, the PRC-316 is similar in concept and purpose to the U.S. PRC-64. Though extremely small and lightweight, it must be set up for operation & cannot be operated while in motion. Features: Very simple operation, 45 xtal control channels. Built in antenna adjustments allow the use of 1/2 wave dipole antenna.

Code burst operation at 300wpm using GRA-71 code burst generator. Ops 2-7mc with a peak RF output rated at 4 watts. Power is derived from a 12vdc battery mounted under the set, or any external 12vdc source. Size 7.9 x 4.4 x 3.5in. Weighs just under 5 lbs less battery. Known accessories include a 1/2 dipole antenna adjustable to frequency. Optional single unit microphone/receiver or conventional double receiver/boom microphone. Ref: "RADIO BYGONES" Issue #43 Oct/Nov 1996 & #45 page 4,"

Adaptor Unit AN/GRA71-PRC316

This box has a storage compartment that holds the 4 GRA71 components.

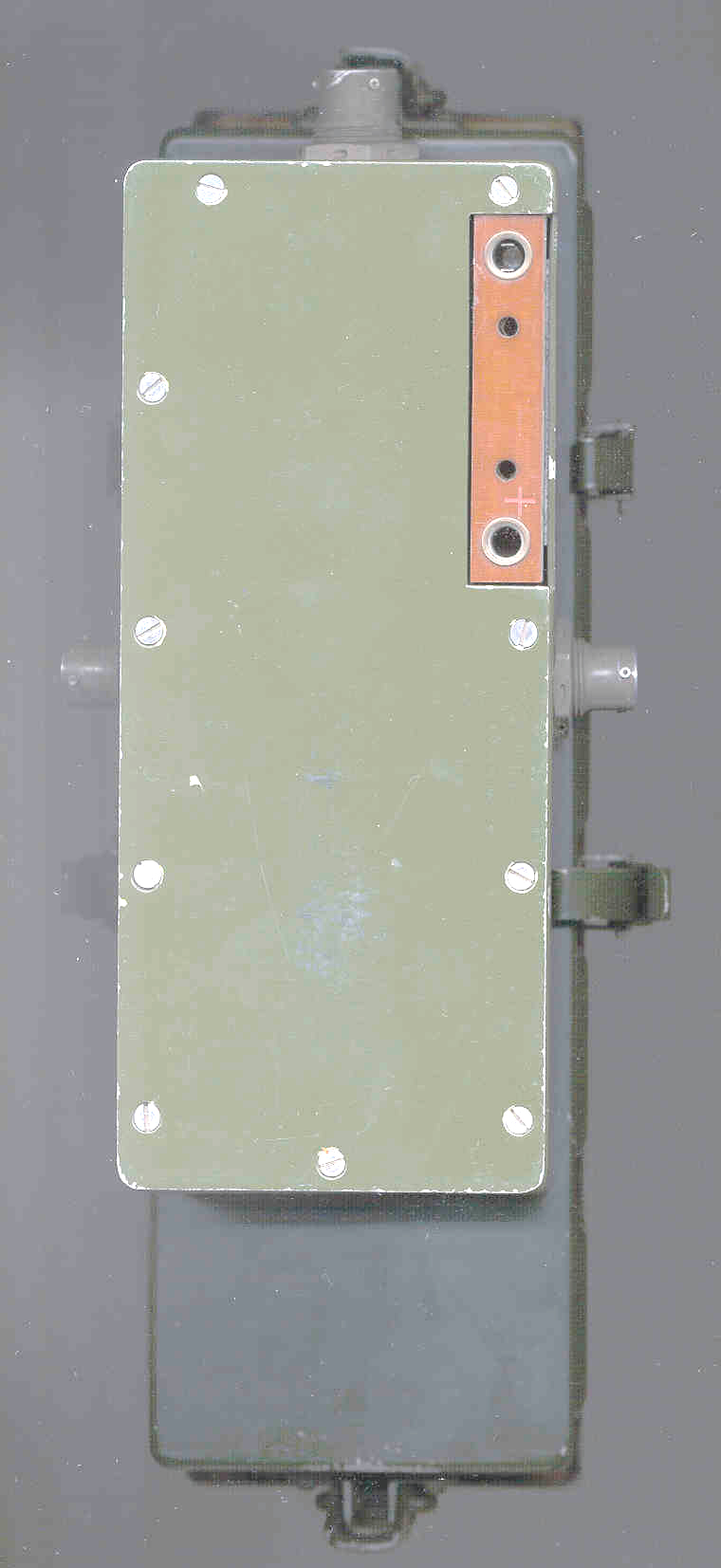

This box has 2 pairs of plugs (and sockets on the bottom) that appear to be there to connect to a couple of batteries?
On each side there are 4-pin sockets. One marked PRC-316 and the other marked Headgear.  They are exactly the same socket, that is to say the dog bone cable will fit either socket.

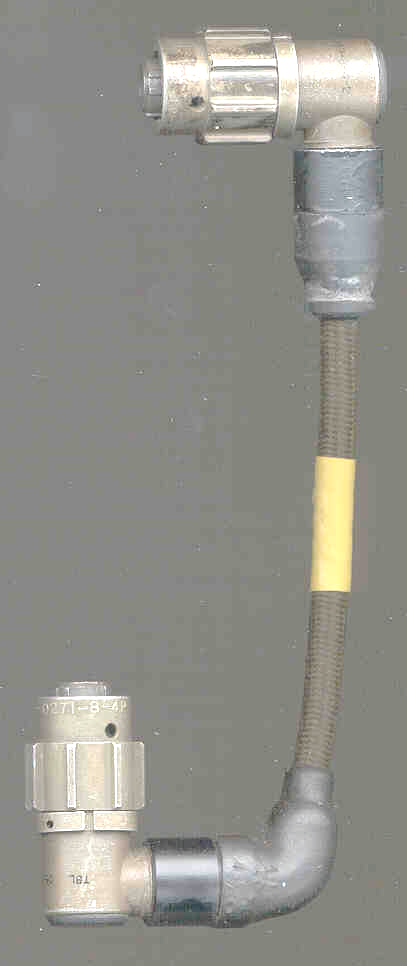

5820-99-110-6651 Dog Bone Cable

There is a 4-pin socket labled "PRC-316" and a short dog bone cable that connects the adapter box to the PRC-316.
Both 4-pin connectors on this cable are the same and are: Thorn 05-0271-8-4P, TBL 05-1001-8-4-2

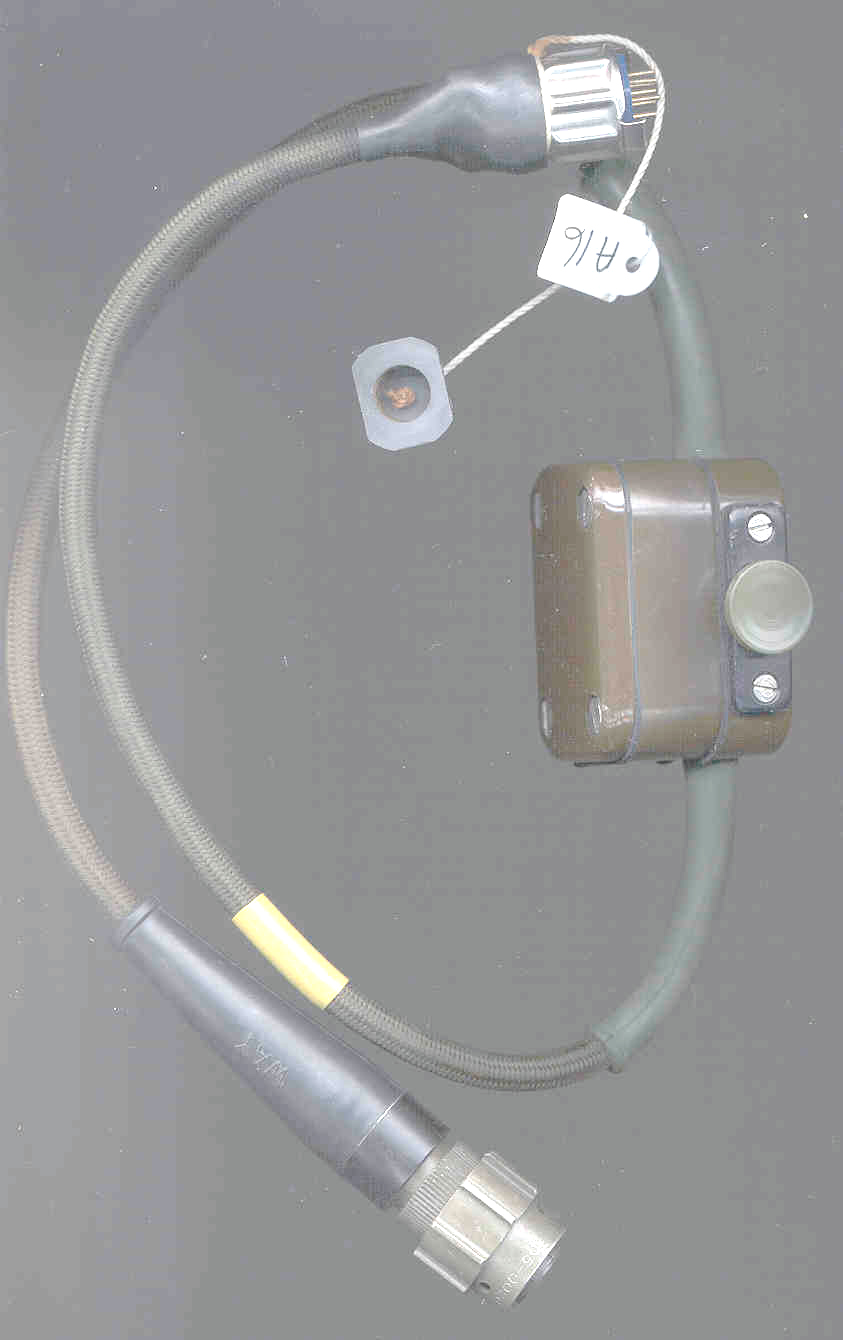

5820-99-110-6652 Interface Cable

The "Keyer" 6-pin socket on the Adapter Unit connects to the TBL 05-0020-10-6P connector on this cable.
The other end of the cable with the 7-pin connector connects to the Keyer.

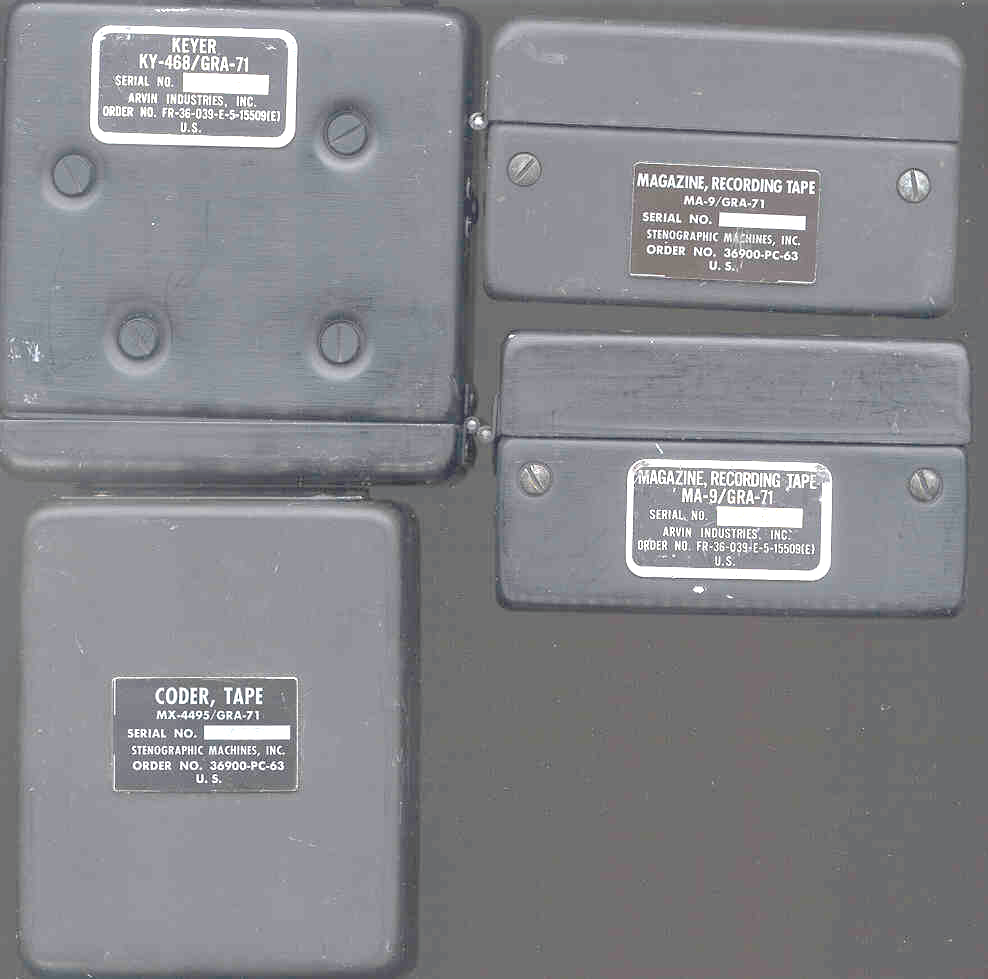

Scan of the 4 GRA71 Modules

KY-468/GRA-71 Keyer

This spring would keyer plays the message tape.  It's marked:
Serial No. 968
Arvin Industries, Inc.
Order No. FR-36-039-E-5-15509(E)
U.S.

MX-4495/GRA-71 Coder, Tape

This is the unit that puts themessage onto the tape.
It has 3 keys: dot, Space, Dash.  It's marked:
Serial No. 402
Stenographic Machines, Inc.
Order No. 36900-PC-63
U.S.

MA-9/GRA-71 Magazine, Tape

This is the one of two magazines that come with this set.  It's marked:
Serial No. 909
Stenographic Machines, Inc.
Order No. 36900-PC-63
U.S.

MA-9/GRA-71 Magazine, Tape

This is the the other magazine that came with this set.  It's marked:
Serial No. 1820
Arvin Industries, Inc.
Order No. FR-36-039-E-5-15509(E)
U.S.

CW-358-AT-339/PRC   Canvas Bag

Manuals

?
"An Appreciation "By Tom Harrison. Mag article Radio Bygones Oct/Nov 96. about PRC-316
