Background

I've had this printer for many years and it's been great.  Recently I upgraded my desktop motherboard and the new board does not have a printer connector.  A short term fix was to get a USB to Printer cable.  A better solution is to cable the printer to my 2Wire DSL router and connect via LAN.  The reason this is better is that now a wireless laptop can connect directly to the printer instead of going through the desktop via. a share printer.  This will work for the laptop even if the desktop is down, like during a power failure.

27 Feb 2013 - using the LAN to drive the printer is noticeably faster than the parallel port and faster than the USB-to-Printer cable.

Upgrades

The unused DB-9 jack is marked Accessory.

The RS-232 cable is used when a laptop is used in place of the desktop computer and there's no other way of connecting.

Below the RS-232 jack/cable is a DIN jack marked FIR.

The Printer cable has a USB adapter on the other end to allow a USB port to make the connection.

An optional hard drive is installed in the EIO2 slot..

A LAN cable goes to the at&t 2Wire DSL router allowing direct wireless connection to the printer from any computer on the 802.11 WiFi network.

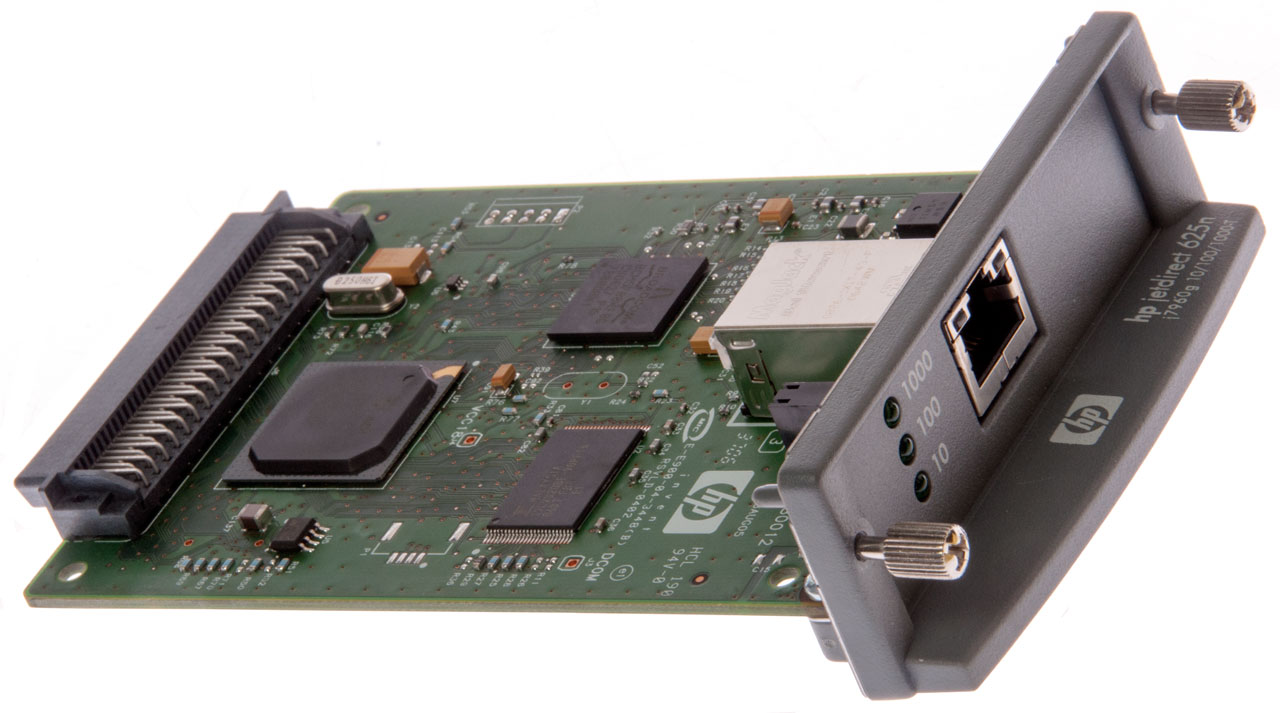

The LAN card is an HP jetdirect 625n is installed int he EIO1 slot.

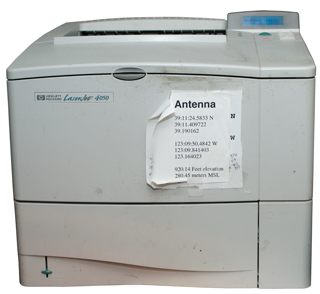

HP LaserJet 4050N
                  Printer Back Options
The optional duplexer is installed and is a great thing.  It cuts the paper useage almost in half.

The duplexer rear door is broken and so has been removed.

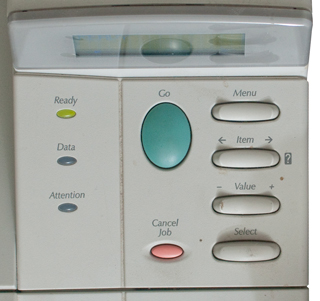

HP LaserJet 4050N
                  Printer Control Panel

Configuring LAN operation

Cold Reset Printer

This will force the LAN card to get an address from the router.

Print Printer Configuration page (WIN XP)

Computer Printer Configuration



Click on image for larger image.
If cursor is (+) click again

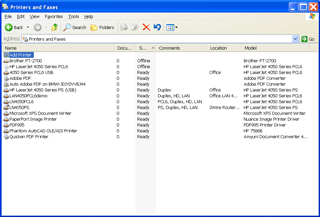

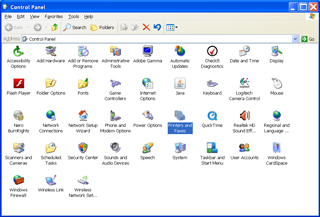

Open Control Panel and Open Printers and FAXes
Double click on Add Printer
Fig 1
WIN XP Add LAN
                  Printer

Double click on Add Printer
Fig 2
WIN XP Add LAN
                  Printer

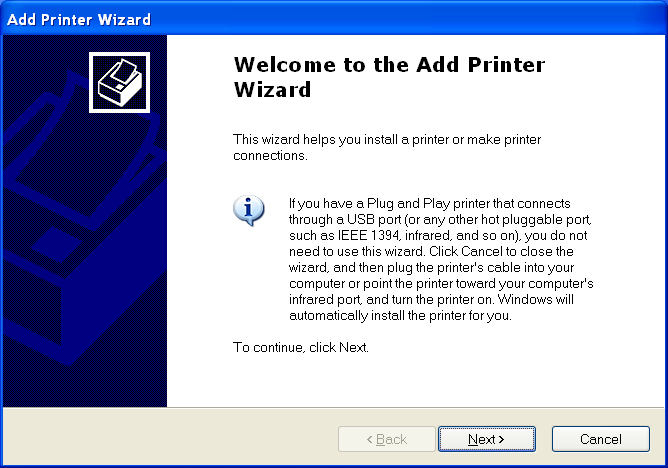

At the Add Printer Wizzard title page click NEXT
Fig 3
WIN XP Add LAN
                  Printer

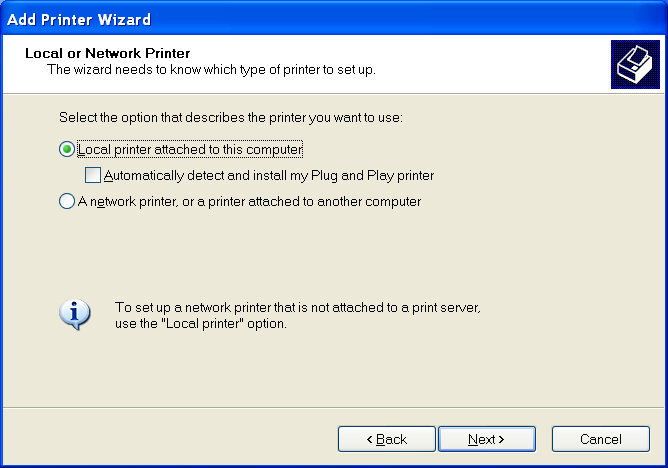

Check the circle for "Local printer attached to this computer" & do NOT check "automatically detect . . . .", click NEXT
Fig 4
WIN XP Add LAN
                  Printer

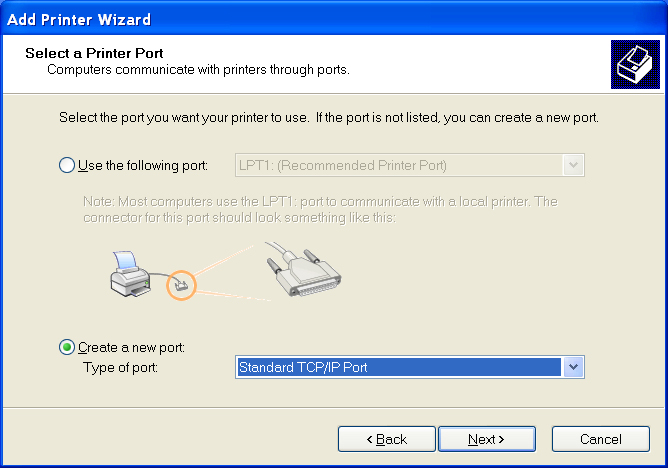

Check the circle for "Create a new nort" and select "Standard TCP/IP Port", cleck NEXT
Fig 5
WIN XP Add LAN
                  Printer

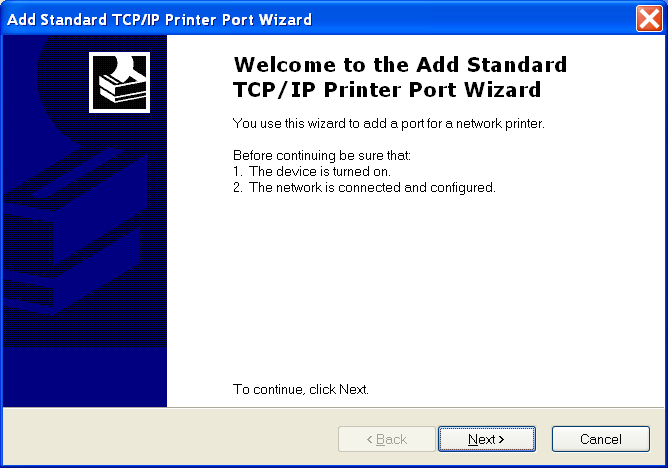

A new window will open on top of the prior Add Printer Wizzard window called "Add Standard TCP/IP Printer Port", click NEXT
Fig 6
WIN XP Add LAN
                  Printer

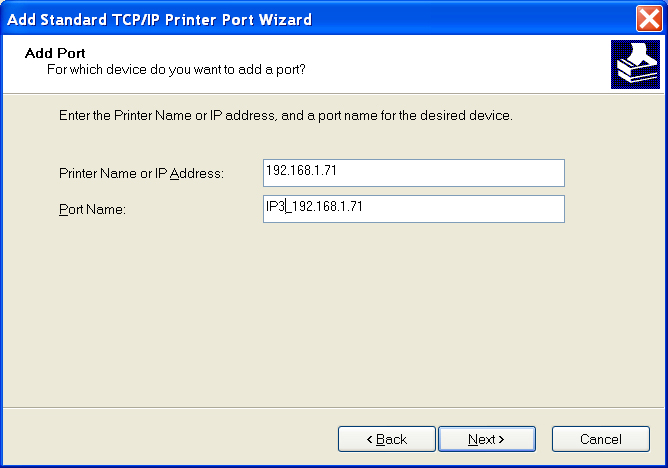

Enter the IP address of the printer you found on the printer configuration printed page above (192.168.1.71).

I've added a 3 in the Port Name field because I've already used the names IP_192.168.1.71 for a Post Script (PS) printer and IP2_192.168.1.71 for a PCL6 printer so am using IP3-192.168.1.71 for this description.
Fig 7
WIN XP Add LAN
                  Printer

If there are no error messages you should see the summary window for the Add Standard TCP/IP Printer Port wizzard.  Click FINISH.
FGig 8
WIN XP Add LAN
                  Printer

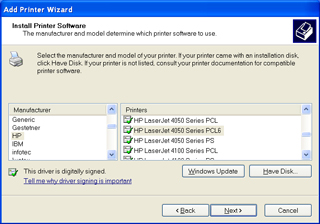

The Add Printer Wizzard now will display a list of printer drivers allowing you to select your printer and printer language.
Click NEXT.
Fig 9
WIN XP Add LAN
                  Printer

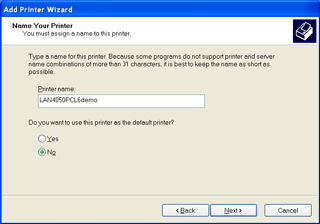

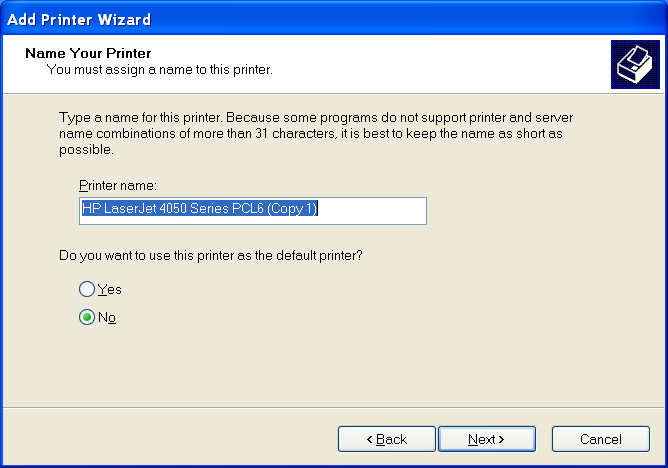

The Add Printer Wizzard will make up a long name for the printer, but it's better to come up with your own much shorter name.
Click NEXT.
Fig 10
WIN XP Add LAN
                  Printer


In this case LAN4050PCL6demo (because I already have  used LAN4050PCL6
Click NEXT.
Fig 11
WIN XP Add LAN
                  Printer

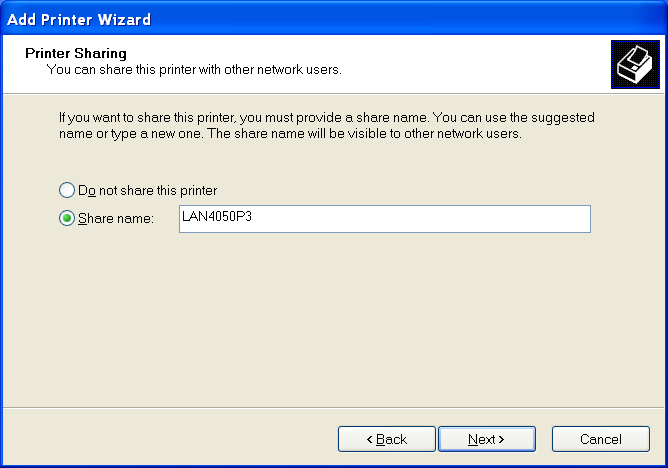

For a Share Name I used LAN4050P3
Click NEXT.
Fig 12
WIN XP Add LAN
                  Printer

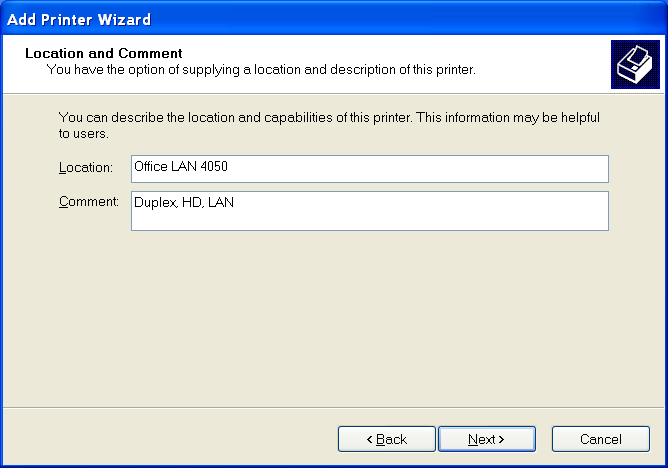

You can fill in (or not) Location and/or Comment info.
Click NEXT.

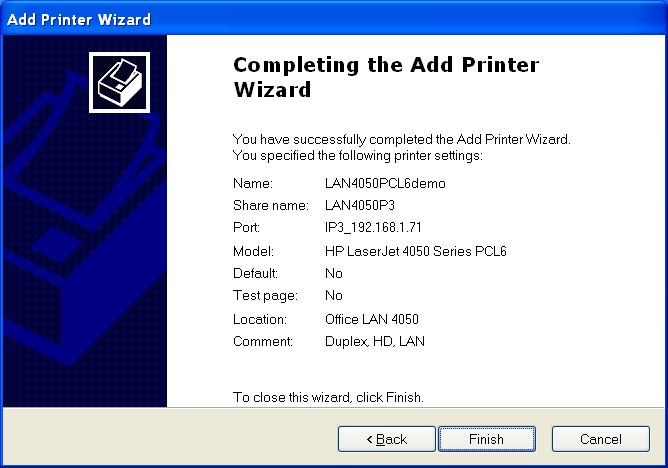

Fig 13
WIN XP Add LAN
                  Printer

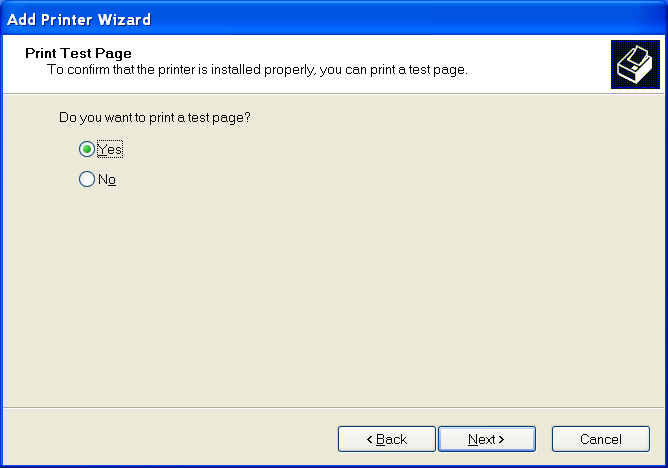

It's a very good idea to print a test page to be sure it's working.
Click NEXT.
Fig 14
WIN XP Add LAN
                  Printer


Here's a page showing that data.
Click NEXT.
Fig 15
WIN XP Add LAN
                  Printer

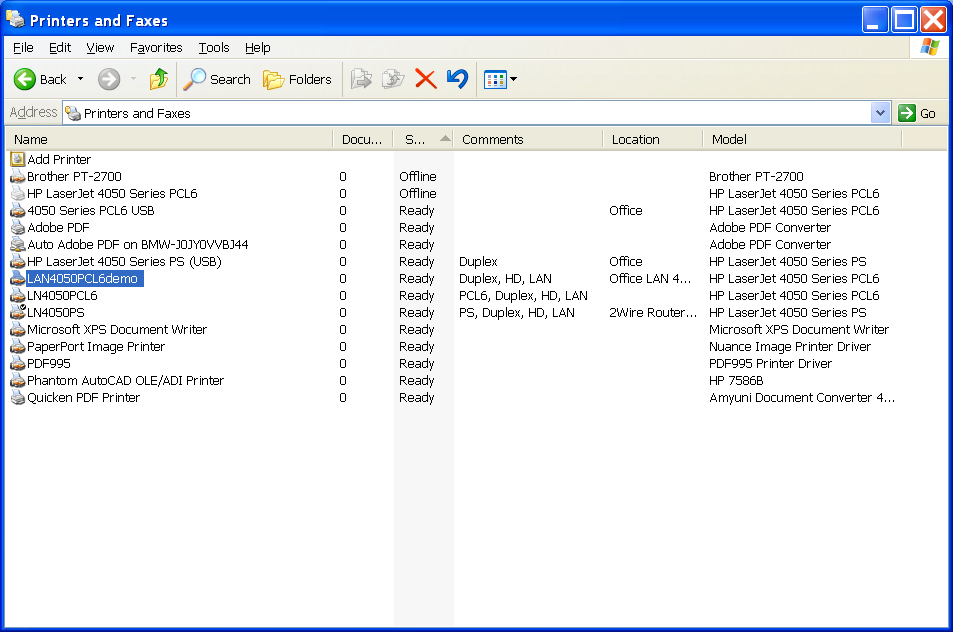

Upon restarting the Control Panel Printers and FAXs window you will now see the new printer.
Right click PROPERTIES.

You can come back to this window from Control Panel and select any printer and right click and "Use as default printer".
Fig 16
WIN XP Add LAN
                  Printer

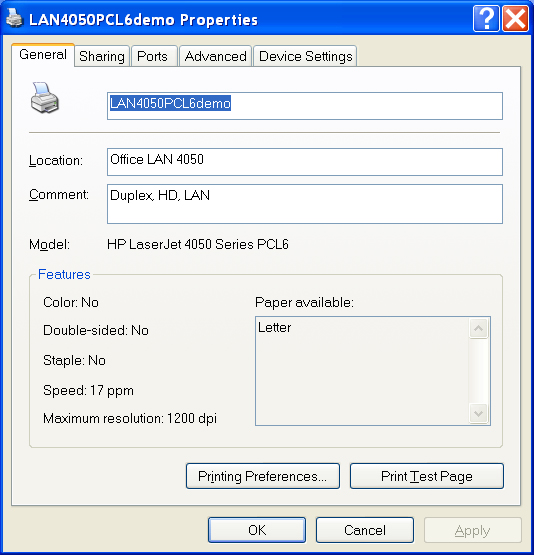

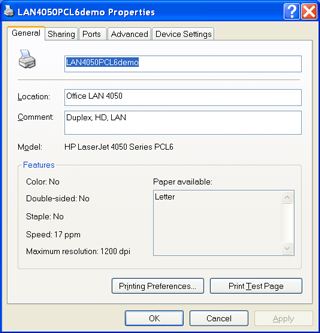

In the properties window there are tabs:
General - Information
Sharing - turn sharing on or off
Ports - Add, Delete or Configure a port (it comes up with the selected printer highligted)
Advanced - spooling, sperator page, defaults, etc.
Device Settings - enable the printer options like Duplex, Hard Drive, Expanded RAM memory, etc
Fig 17
WIN XP Add LAN
                  Printer
