HOBO^® 4-Channel External Logger

Brooke Clarke 2000 - 2007

This is a small battery powered data logger with 4 analog inputs each takes 0 to +2.5 volts. It is powered by a CR2032 3 volt Lithium button battery. The "Boxcar" software package is required to "launch" (set up the sampling rate, which channels are active, etc.) the Hobo and to read back it's data.
Radio Shack can order as RSU12045522 or get from Onset Computer Corporation - HOBO® 4-Channel External Logger -

Also see my Onset G-Pendant web page.

NOTICE

Using Readout on the 4-Channel unit stops the data logging. The instructions are clear that launching the unit will clear the memory, but if reading the data stops the logging function that's the same as clearing the data because to get it going again you need to launch it!

The inputs have 2.5mm stereo audio jacks.

2.5mm Plug is Tech America 910-0727 in catalog but may not be on their web site

Sleeve is ground (Black wire on "CABLE-2.5-STEREO")
Ring is 2.5 volts out to sensor (Red wire on cable)
Tip is 0 to +2.5V Hobo input (White wire on cable)

Internal Design

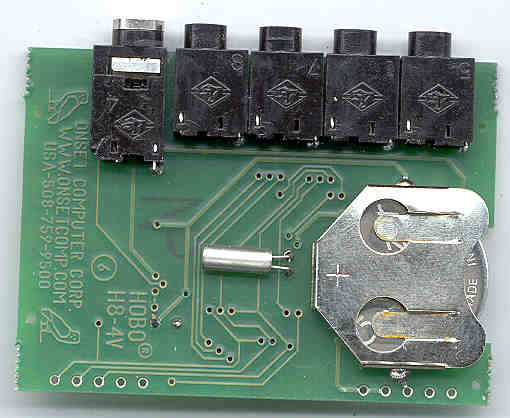

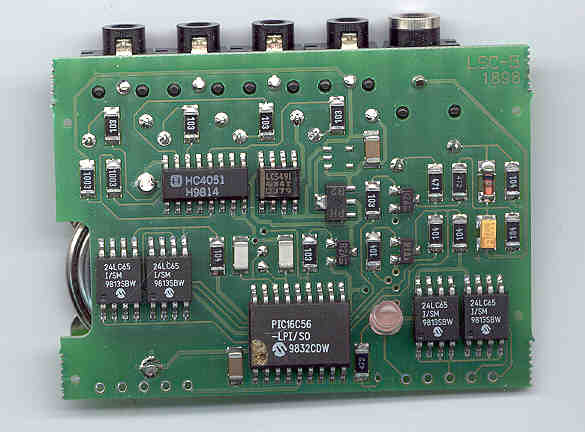

Chip Side of Board, Battery Side of Board

PIC 16C56 microcontroller
4 ea. 24LC65 8k x 8 bit serial EPROM memory chips (the 24LC64 is listed but not the 24LC65)

74HC4051 8 to 1 MUX
TLC549 8 bit A/D I²C converter

Hobo to Computer Cable

The cable that comes with the Boxcar software package has a 3.5mm stereo audio plug ( Digikey CP-3502-ND, Tech America 910-0754) to connect to the Hobo and a DB9(f) that connects to the computer serial port (DB9(m).
CUI Stack carries both 2.5mm jacks and 3.5mm jacks -

Sleeve to pin 5 Signal Ground

Ring Hobo Tx data to pin 2 Computer Rx Data

Tip Hobo Rx data from pin 3 Computer Tx Data

TSL250 Light Sensor

By using the following parts I made up a light sensor:

TI TSL250 3-lead Light Sensor (Radio Shack RSU 11673308)

4.5 Volt computer back up battery (had one so used it)

CABLE-2.5-STEREO (Radio Shack RSU 11915527)

10 K Ohm & 2.2 K Ohm resistors to divide output down from 3 volts (full sun) to 2.4 volts

Data Logged

Chan 1 Outside Temp RSU 12045530

Chan 2 Inside Light

Chan 3 Cloud Sensor

Chan 4 not used

Here is a file that was "exported" in Excel format for July (July5.txt)

Also see the G Pendant 3-axis Onset Data Logger
