URC-68 Receiver-Converter Module A3

© Brooke Clarke, N6GCE

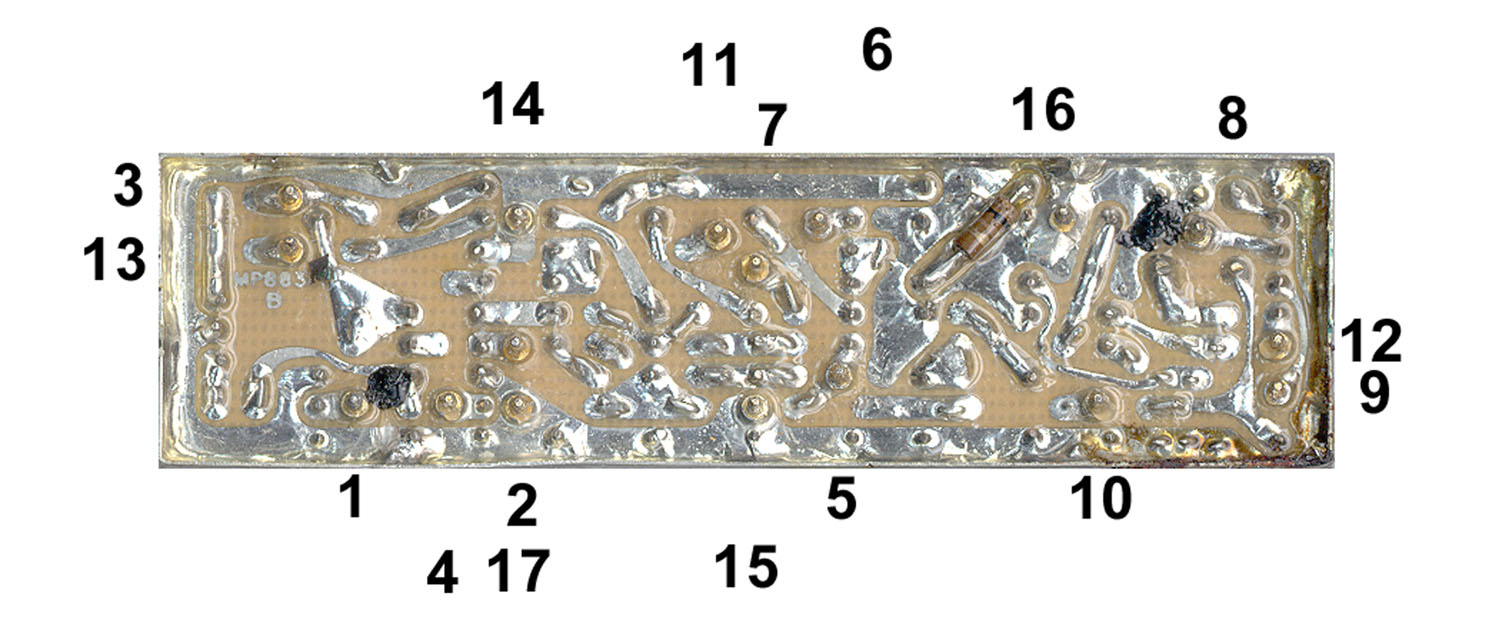

Receiver-Converter Module A3

This module is the receiver for both FM and UHF.  I think one of mine is bad.
Here are some measurements using a Fluke 87 DMM in Ohms and Diode mode comparing a good module and a bad one.
All measurements made to ground


Bad A3 Module


Pin #
Description
Ohms
Diode V
1
UHF Sig In
infinity

2
FM Rx B+
infinity

3
UHF Rx B+
6.4 M
2.63
4
FM Sig in
infinity

5
+9n V In
14.8 k
2.28
6
10 MHz Out
GND

7
AGC In
9.84 k
2.455
8
Xtal
infinity

9
Xtal
473
.378
10
50 MHz Out
12.3
.011
11
200 MHz Out
53.5
.047
12
Common B+
4.44 M
2.32
13
UHF Tx B+
infinity

14
GND

15
GND

16
GND

17
GND
