Background
This relates to my interest in Time and Frequency.
Description
This appears to be a harmonic or comb generator, similar in concept to the HP 8406 Frequency Comb Generator. The main difference is the HP 8406 uses 1, 10 or 100 MHz comb separation with a maximum frequency of about 4 GHz. This comb generator has selectable comb separation frequencies (input frequencies) of 50 or 100 MHz, but with outputs between 50 MHz and 11 GHz. Another difference is that this unit is based on vacuum tubes.
The 50 MHz crystal is adjacent to V2 (12AT7WA). This dual triode is rated as an oscillator up to 300 Mhz. But the circuit is strange in that the crystal is connected between the two cathodes.
Label
VHF-UHF Frequency Calibrator
Range: 50 Mc to 11,000 Mc
Supply: 115 V. 1 (phase) 50 - 440 cycles
Model No. 121 Serial No. 55
Control Electronics, Co., Inc.
Huntington Station, Long Island, N.Y.
AC Input Connector
See Fig 1 below.
Three male pins.
O.D.: 0.618 (male threads)
I.D.: 0.458
Connection
A
C23
B
chassis
C
C22
Tube Table
Nomenclature
Common Use
V1
6X4W
B+ Rectifier
Transformer 386 V c.t. (6.3 VAC fil)
V2
12AT7WA
Oscillator
50 MHz crystal (pins3 & 9)
V3
5654 (6AK5W)
pentode
Freq Multiplier
V4
5654 (6AK5W) pentode Freq Multiplier
V5
5686
5 Watt Amp
Power Amp up to 160 MHz
Test Points
Description
DC
AC
TP1
Osc Out, V3 Grid 1
0
TP2
V4 Grid 1
TP3
V5 Grid 1
TP4
Output
Photos

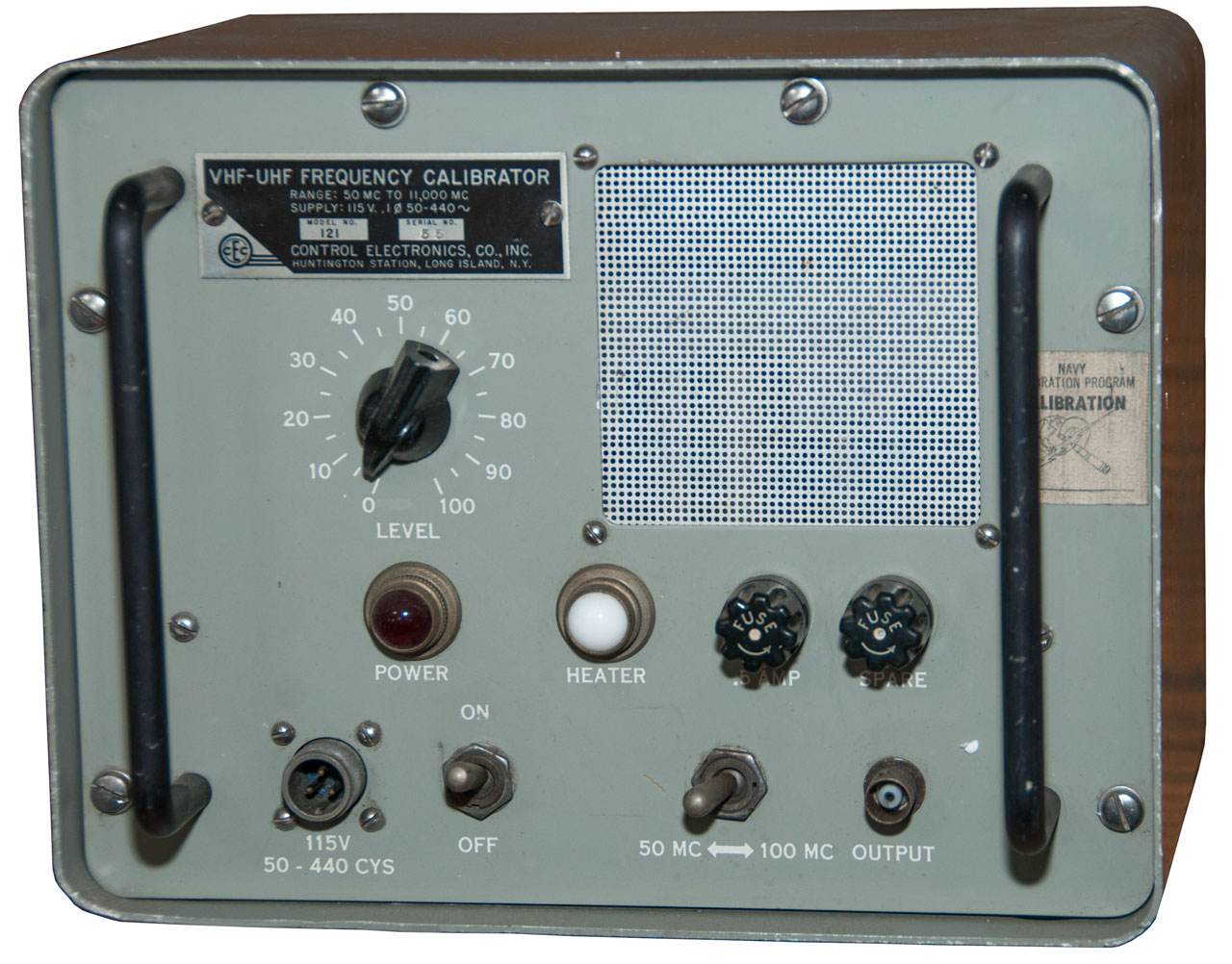

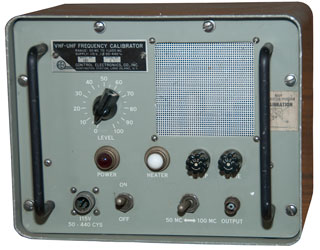

Fig 1 The grill is for ventilation.

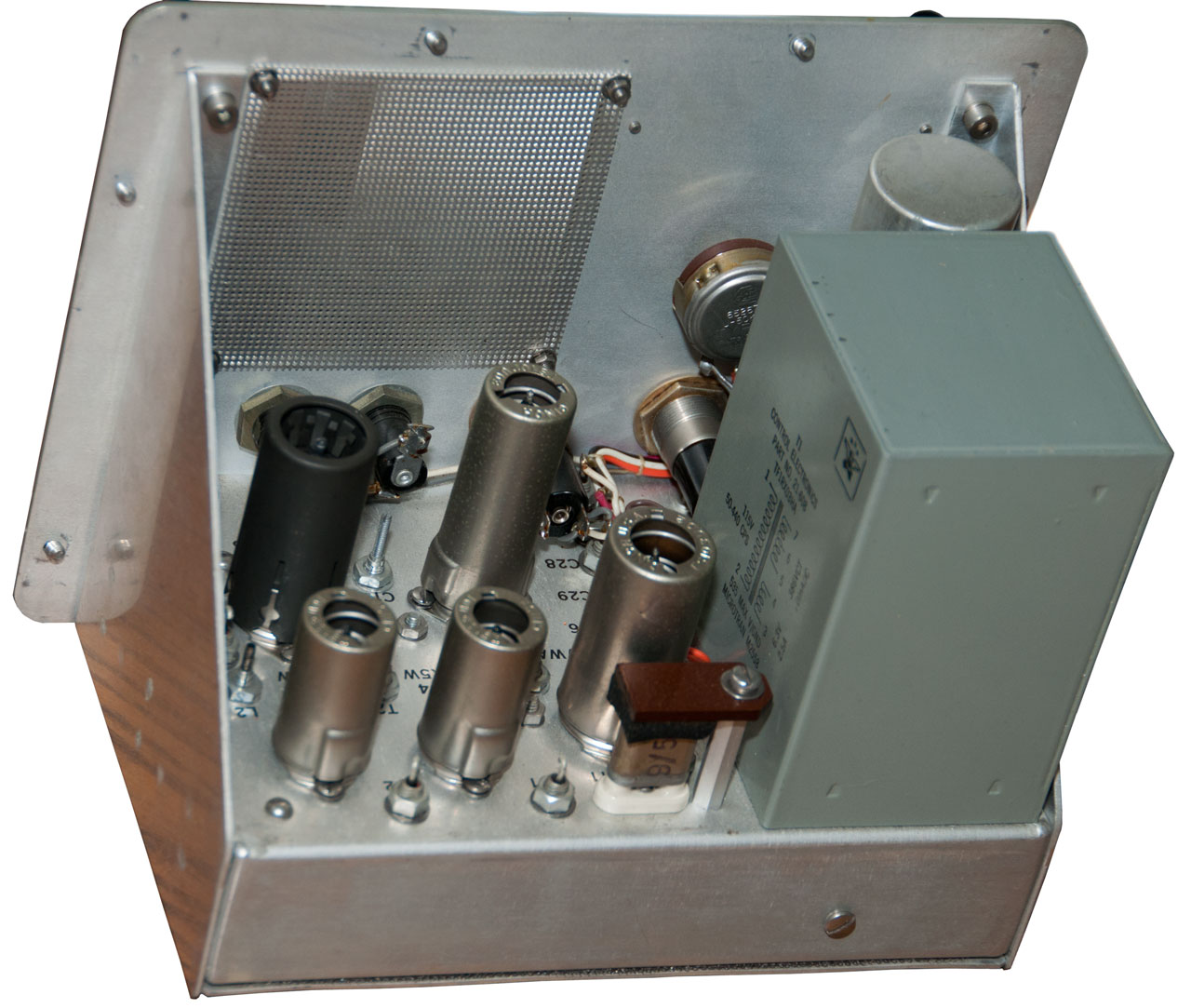

Fig 2 The crystal is 50.000 Mc.

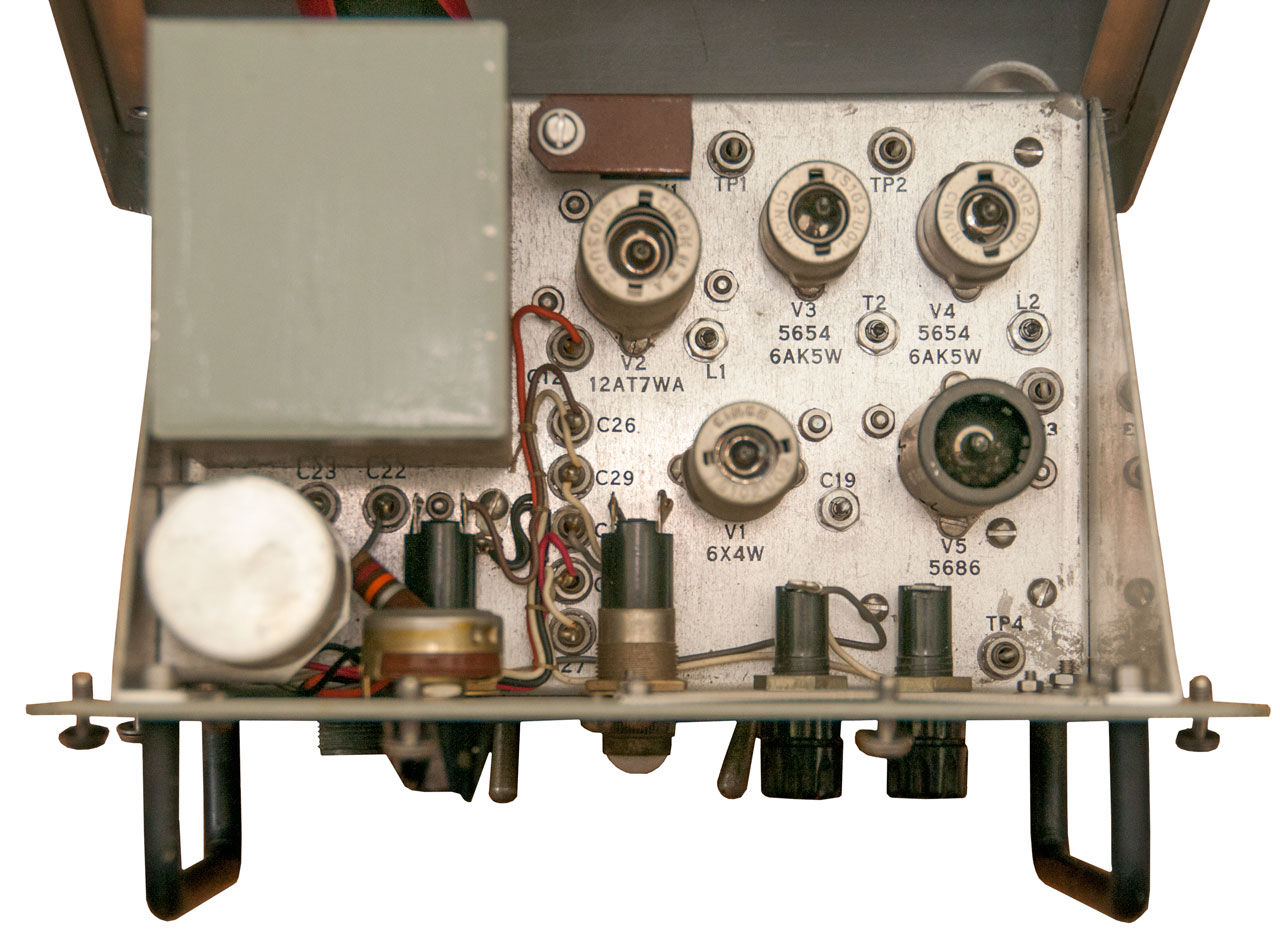

Fig 3 Top: Tubes & Test Points

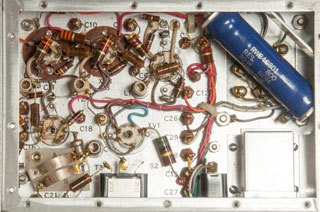

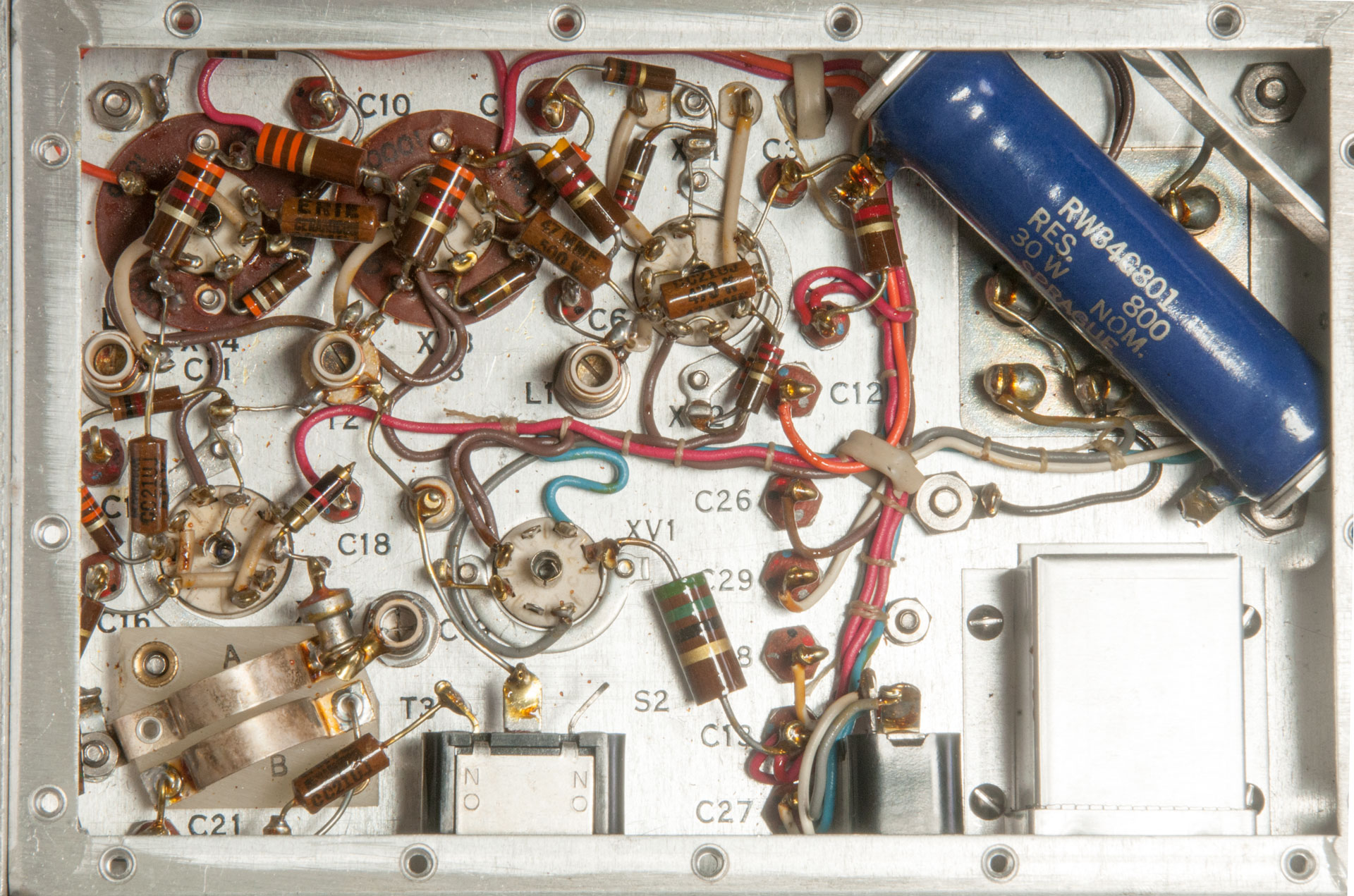

Fig 4 Bottom Cover Removed
Schematics

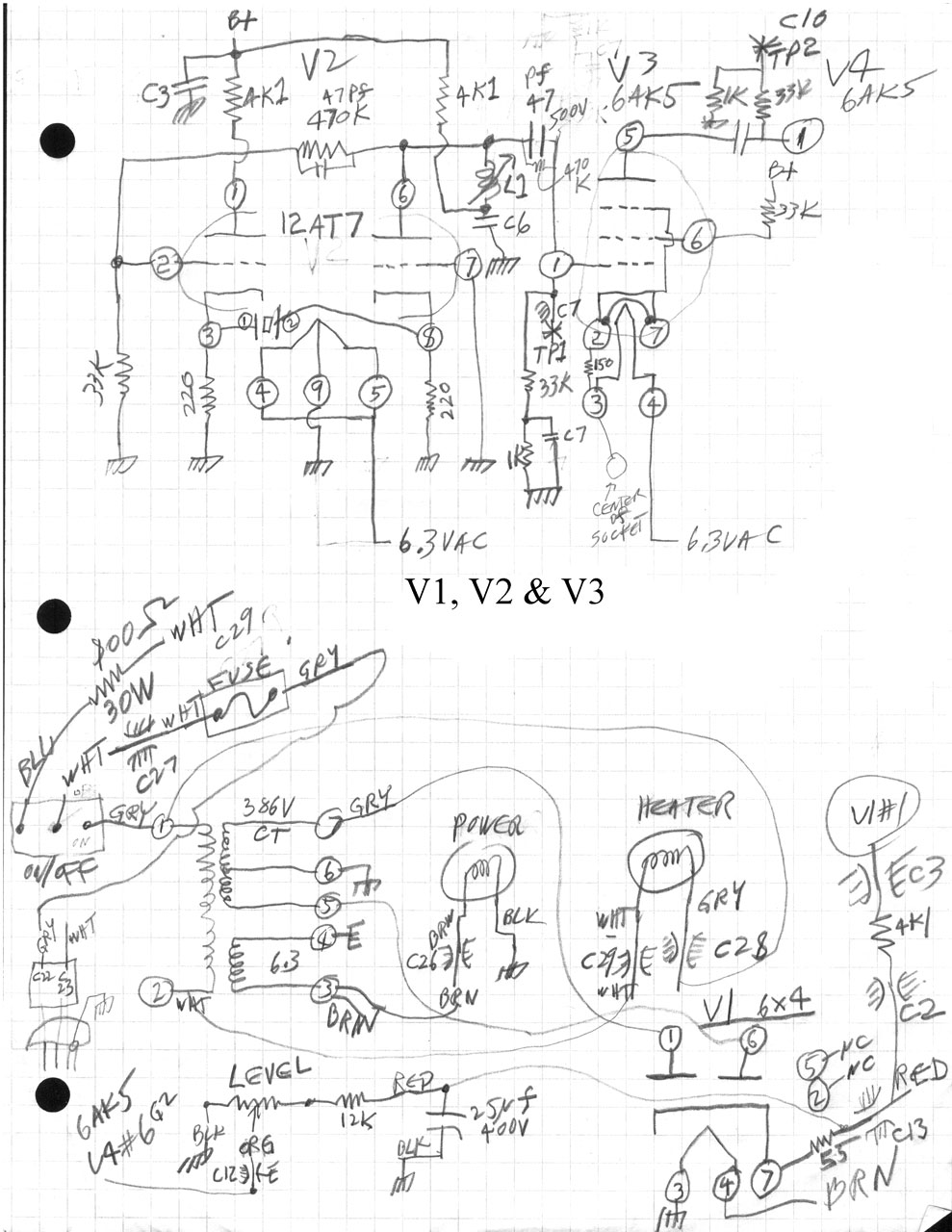

Fig 10

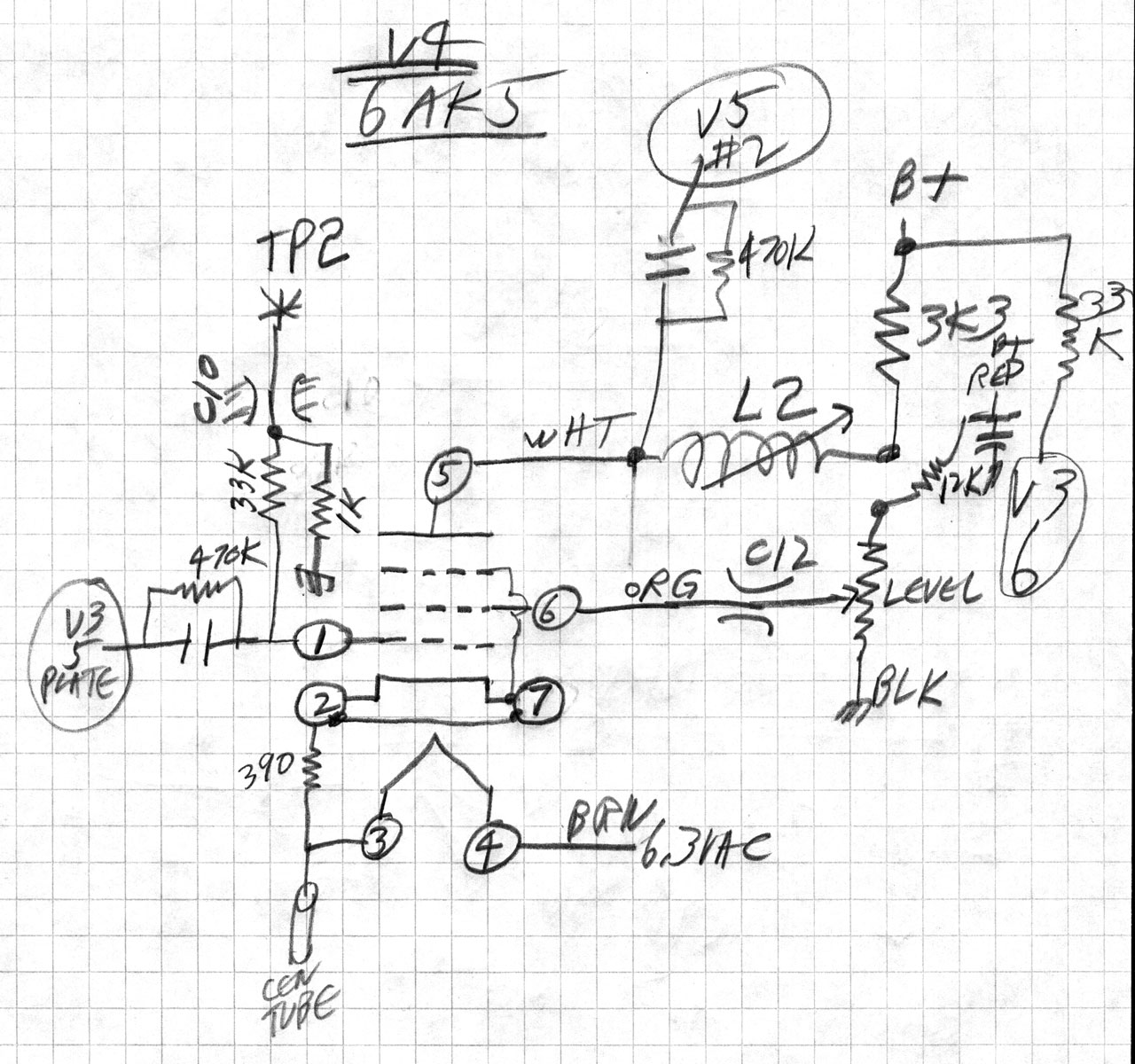

Fig 11

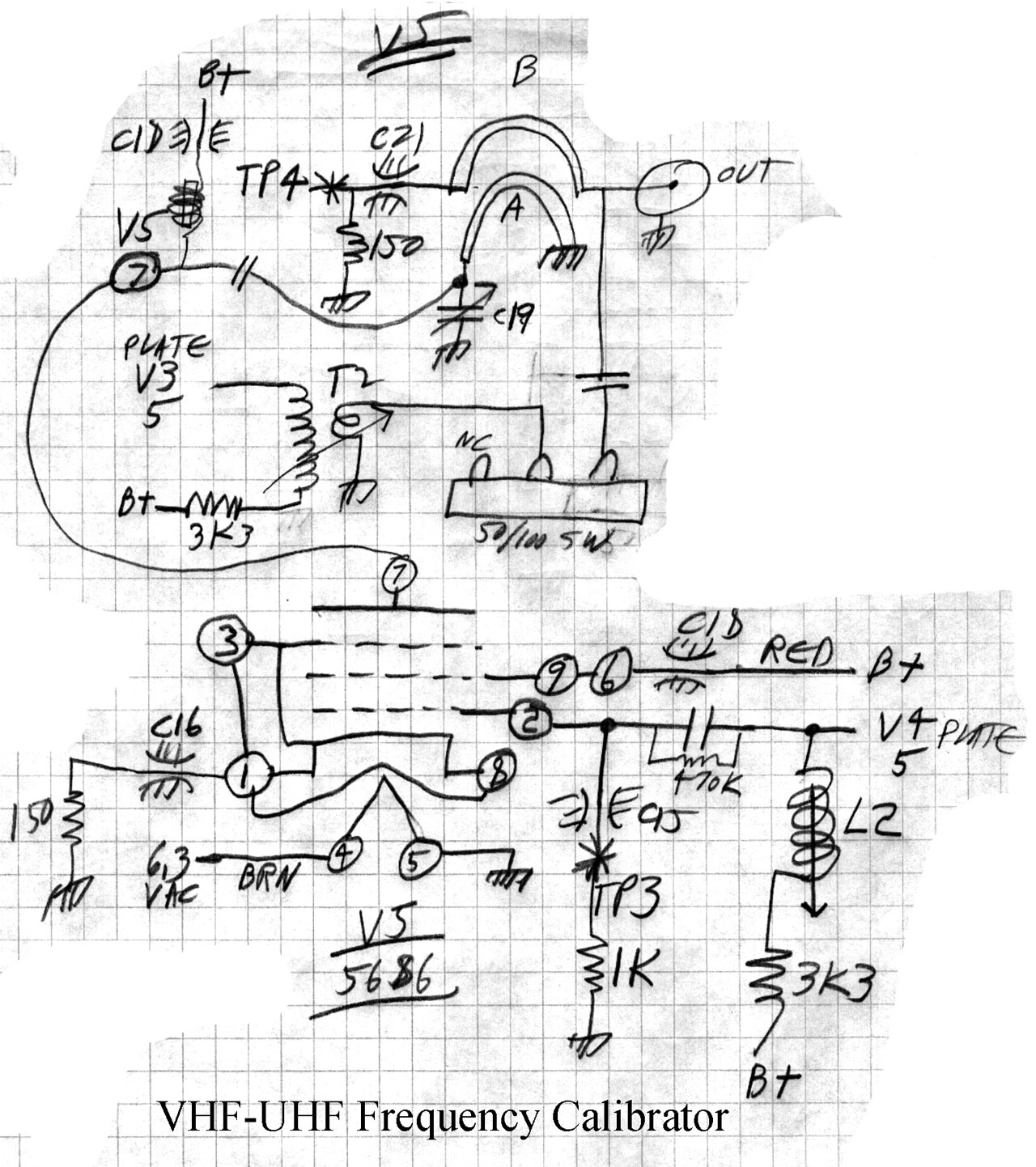

Fig 12
Patents
Related
References

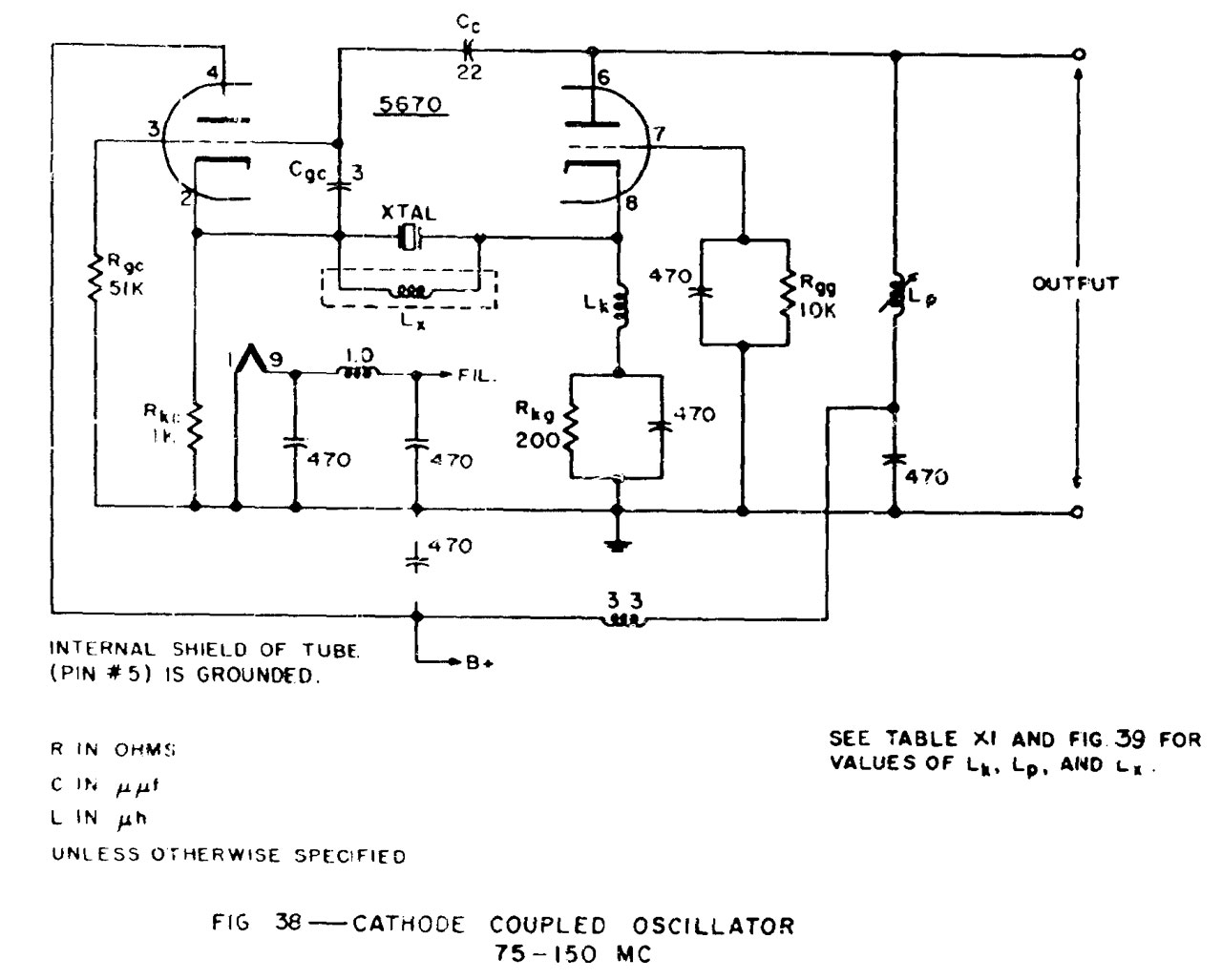

DTIC AD0149085: A Study of Crystal Oscillator Circuits, 1957 - The Cathode Coupled Crystal Oscillator aka Buttler Oscillator is the circuit for V3.
