Background

There are a number of 3D printers that are affordable for home use.  To go with these there are ways to capture the shape of 3D objects so they can be duplicated.

The first book I'm getting is: Make: Ultimate Guide to 3D Printing.  Most of the early 3D printers took some "tuning" i.e. adjusting the temperature and timing along with step size to get a given part to come out as expected.

It seems that  you can do rapid prototyping with a 3D printer, but it's not going to be an economical way to manufacture items in quantity.  Great for one off items.

TED TEDSalon London Spring 2011 - Lisa Harouni: A primer on 3D printing
She doesn't seem realistic regarding the cost of the parts, that's to say the machines that can do metal are very expensive so using many hours to make a single part costs a lot.
Even for the hobbyist grade plastic parts it's not a competitive way to make parts unless they are too complex for conventional machining.  So, even here expensive.
It makes sense to make a prototype not as a manufacturing process.

Staples has 3D printers and supplies in some stores.

Printers (Wiki: List, Table)

I'm putting printers above scanners because they came first.

Creality (Wiki) - best known consumer-grade 3D printers, but also make industrial-grade 3D printers. Ender Series ($99 - $500), Laser Engravers ($190 - $1600)

Bambu Lab (Wiki) - servers in China

X1-Carbon $1200 (enclosed) Review;
P1P             $600 (no enclosure, striped down X1)

X1-Carbon Combo - 4 spools (Wiki: Multi-material)
A1 recall update -

Maker Bot (Wiki)

Has a few different models.
http://www.colbertnation.com/the-colbert-report-videos/388966/june-08-2011/bre-pettis
2024 seems aimed at the STEM market.
MakerBot Replicator+ at $2100 ranked best 2024 for engineers by PC magazine.

RepRap (Wiki)

An open source project where the machine can make most of the custom parts needed to build another machine.
Wowser LLC, Willits, CA

Cubify

Cartridge feed, comes in different sizes with one or two extruders.
Manual DSLR beta software for capture.
2024 gone, support from 3D Systems.

Defense Distributed  (Android App)

Has downloadable files for a number of firearms.  Their first AR-15 lower receiver broke after a small number of shots and the pistol is probably good for only a few shots.
This has created quite a stir at the BATF.  Photos of failed plastic flare launcher pistol after firing live ammo.

PRUSA (Wiki: Mini, i3); YouTube - the i3 at $900 is ranked by PC magazine as the best 2024 overall. - excellent customer support.

YouTube: Printing Sheets, 1:30: Smooth: PLA; Textured: PETG; Satin: ASA, FLEX, PC, PLA, PETG, Polyamides (Nylon), PA11CF,
Original i3  assembled $899
Base i3 Mk3S Kit        $649
Enclosure Kit               $299
up to 5 colors               $299
YouTube: Should you buy a NEW Prusa MK4 in 2023 or rather a Bambu Lab X1/P1P?, 18:24 -
Original Mk4 assembled $1200
Mk 4 kit                            $799

UP!

Has the UP, UP+ and UP Mini.  The UP was the printer at the Willits, California Mini Maker Fair at the table next to me.

There are a couple of ways of starting a part.  The iBP, intermediate Base Plate is a glass plate that you clip to the machine.
Either green paint or Kapton tape is used between the part and the support.
A "raft" is a layer of plastic that can be put down below a part to support it.
It's not clear why you would use either of the three methods described above.

In the Youtube videos by X-object (now up3Dusa) they show how to replace the build plate heater+thermocouple assembly.  But did not use any thermal grease, which should be there.

It's possible to print a bearing including the balls all in one go.  It's not clear how the software knows what parts of something are separate objects and what's all one thing.
Up! 2024 gone.

MendelMax 2 (Wiki) - Makers Tool Works - YouTube - 2024 gone

Lutzbot - TAZ - almost a 1 foot cube build volume

Review1, Review2
2024 now offering more models with larger build volume

Open-source metal 3-D printer - based on MIG welder.

MarkForged Mark One 3D printer - carbon fiber, fiberglass and plastic
I'm guessing that it puts down a single fiber so that needs to all be in a single layer (not necessarily in the same plane but that makes it easier).  It would also be possible to put down a spiral.
2024 offering: Metal, Industrial & Desktop 3D printers (>$6,000).
Dremel 3D Idea Builder -  3D20 (Amazon & Home Depot $999)
Maximum Build Volume: 9” x 5.9” x 5.5”
Layer Thickness: 4 mil
ONLY builds Dremel PLA filaments
Shapeoko 2 - 2024 CNC routers
Work area is approximately 12" x 12" x 2.5" but can be enlarged and can accept long sheets in steps.
Expansin kit for 1 x 1 meter X-Y area.
Laser upgrade kit at J Tech Photonics (they make a number of laser upgrade kits for other 3D printers)
These will cut balsa wood, cardboard, tag board, plastic, foam board, %etc.

Hand Held Printers

This amounts to just the extruder without the X, Y & Z positioning stages.

3Doodler - this is the first one I heard of and Version 2 will be out  toward the end of May 2015.

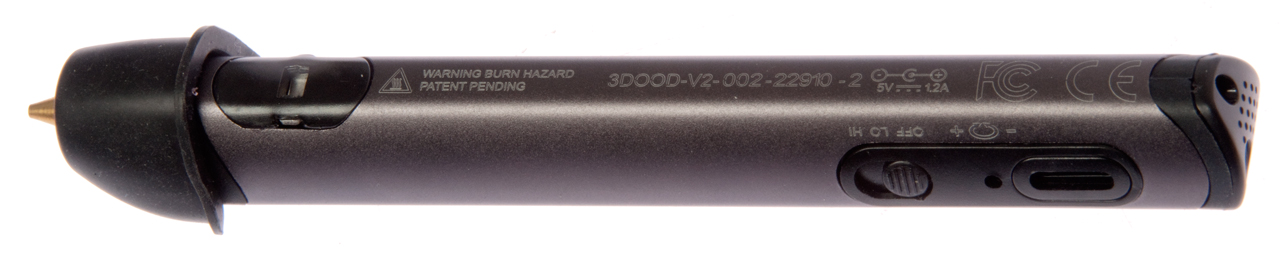

Fig 1 Pen
3Doodler

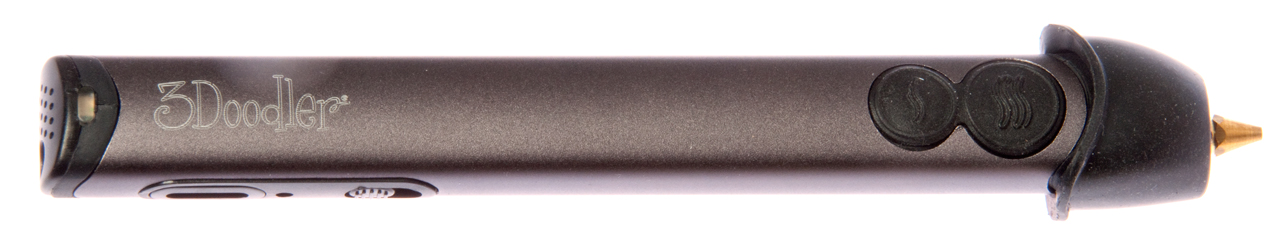

Fig 2 Pen
3Doodler

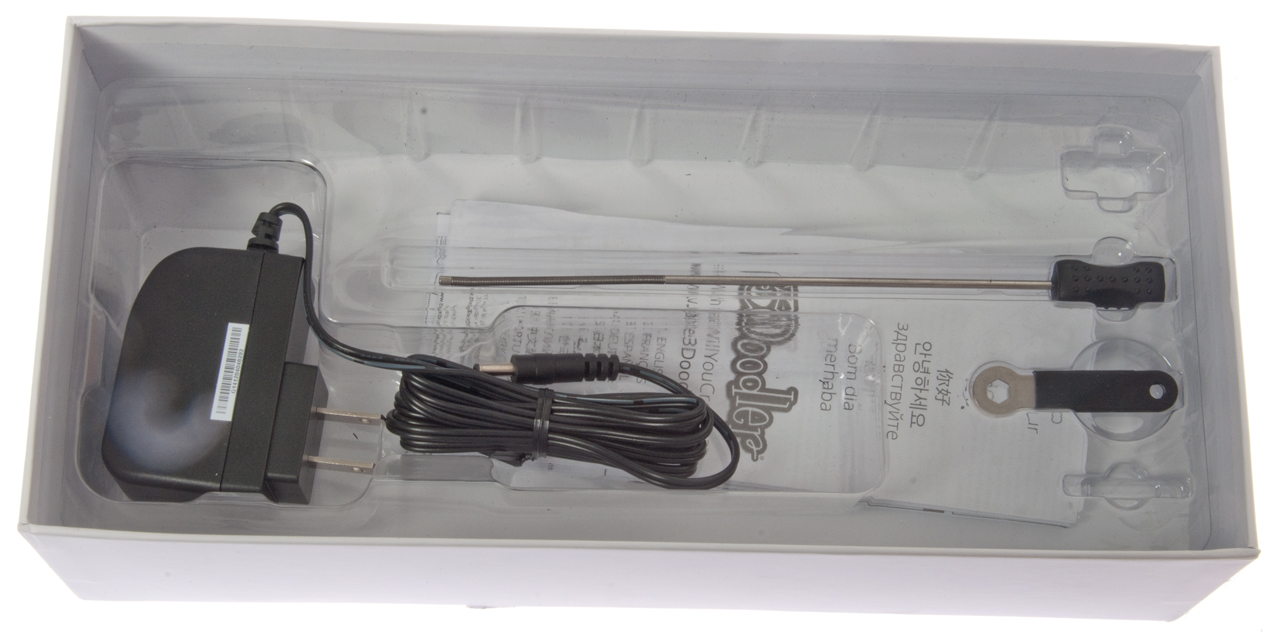

Fig 3 Bottom of box w/ Power Supply and tools
3Doodler

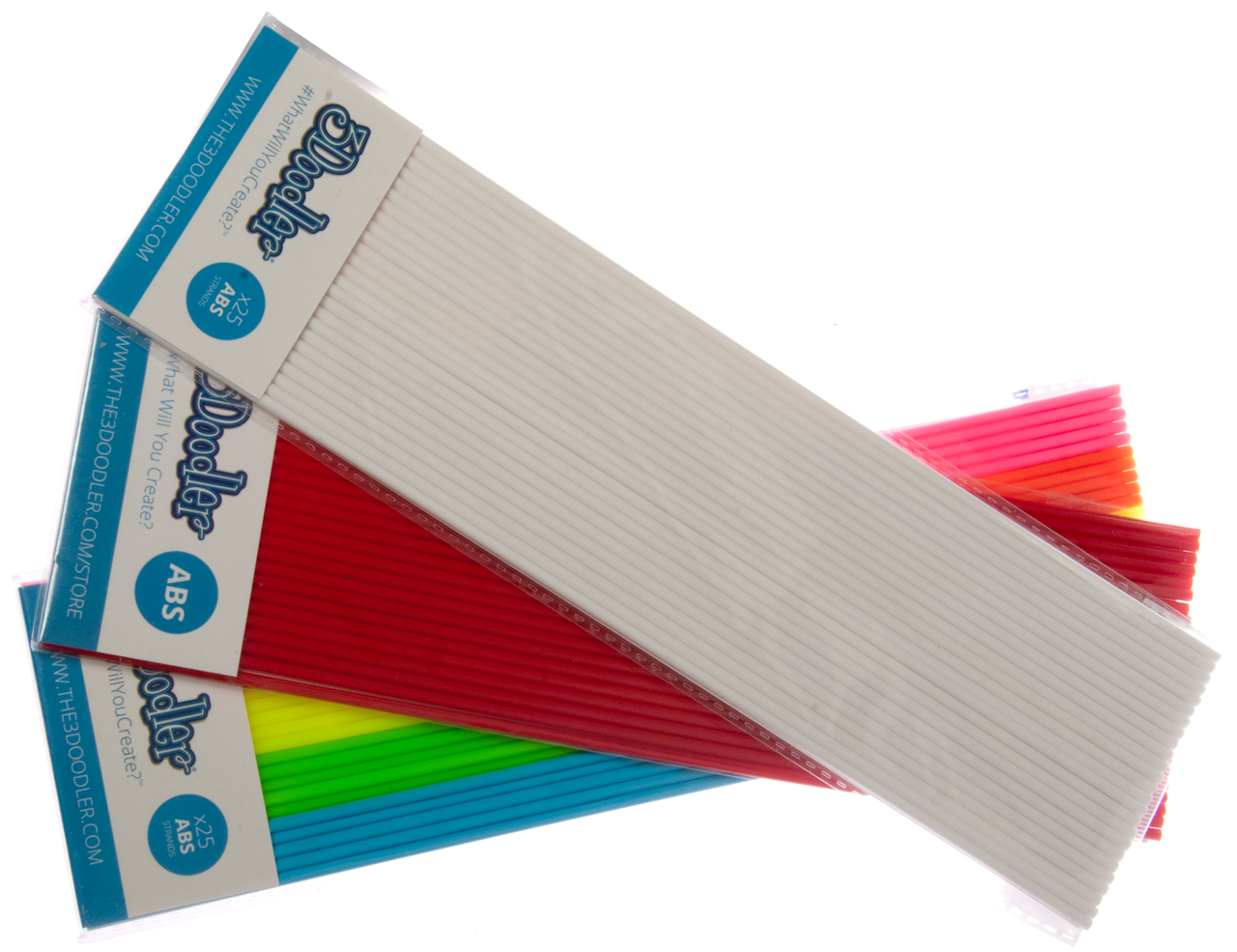

Fig 4 ABS sticks
3Doodler

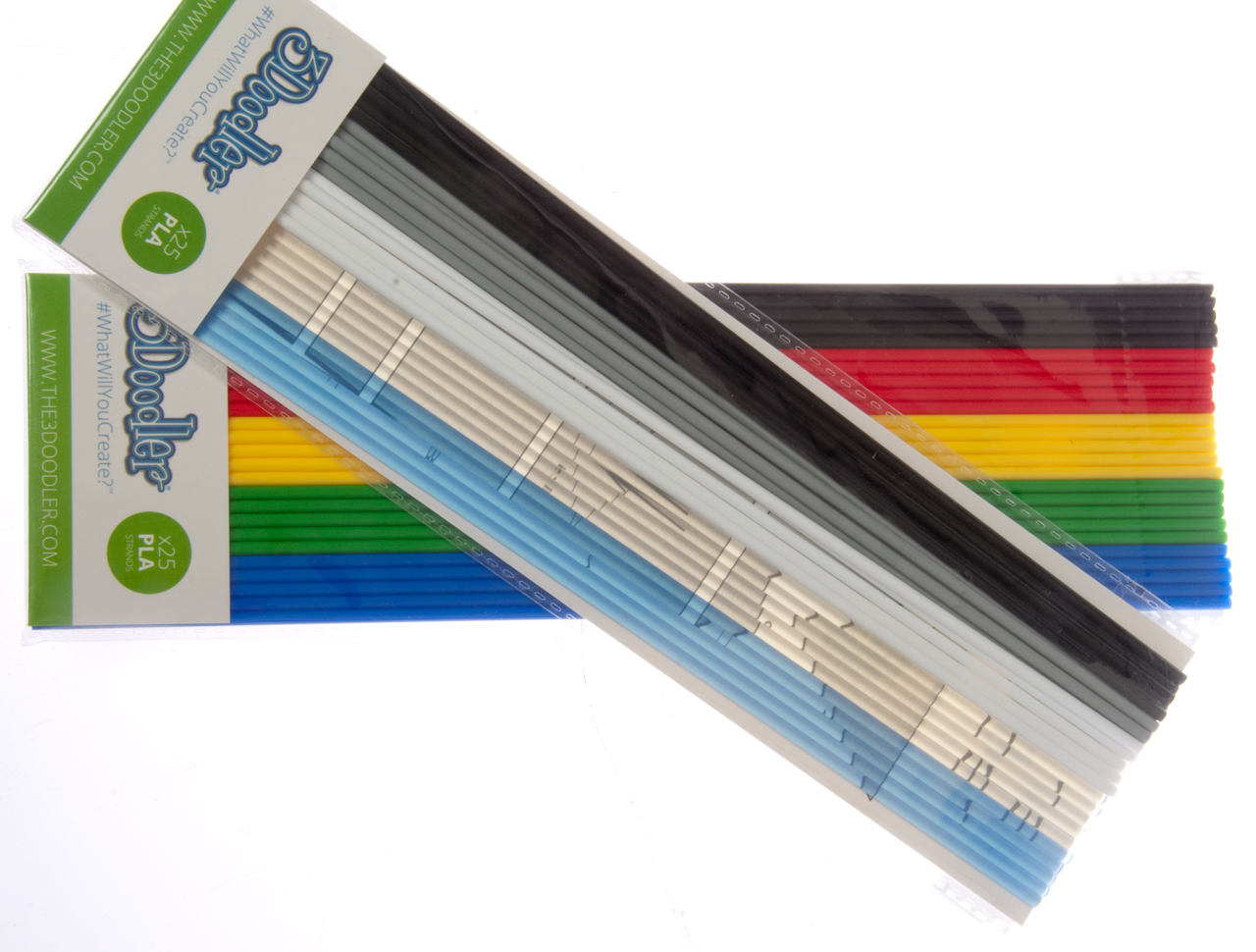

Fig 5 PLA sticks
3Doodler

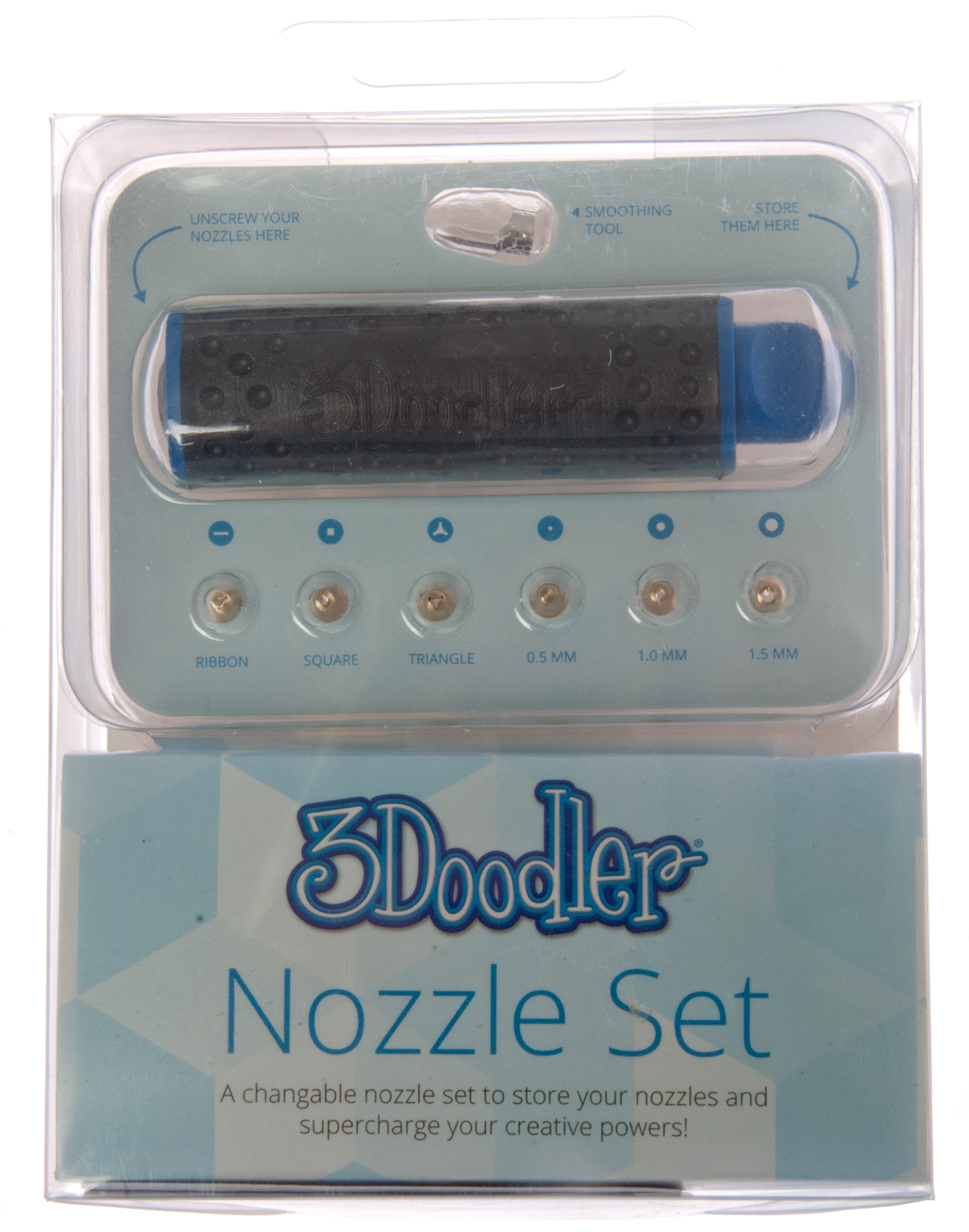

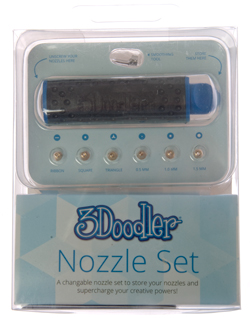

Fig 6 Nozzle Set
3Doodler

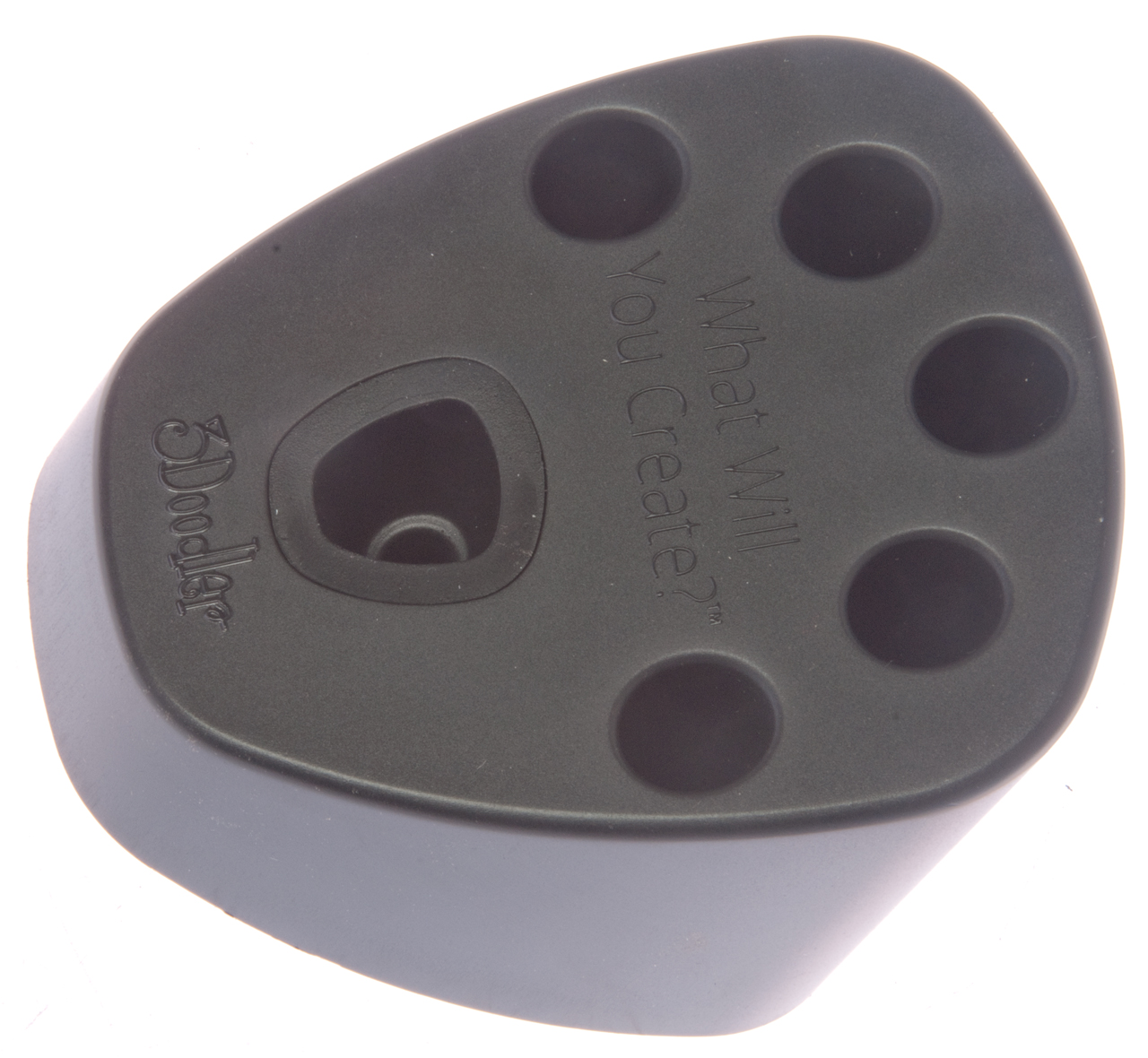

Fig 7 Stand
3Doodler



ABS or PLA plastic - YouTube videos - Facebook
US 20140154347 A1 Hand-held three-dimensional drawing device, Peter Dilworth, Maxwell Bogue, Wobble Works LLC, Jun 5, 2014, 425/87
3mm dia plastic, two heat settings (ABS and PLA).
On order 29 April 2015 - expect end of next month.
PC Magazine review of version 1.
engadget review of version 1 "
It's easy to use, but hard to master."

China Vision makes a 3D pen for about half the cost of the 3D doodler.

Lix Pen - "smallest", runs from a USB power port, fixed 392 def F tip which works for both ABS and PLA (1.75mm dia) , no fan, not released as of 29 Apr 2015, $140, Kickstarter - July 2014 started development, March 2015 still in development, they make a ball point pen with the same look.

The 3Doodler on steroids =
Protopiper - similar to a packing tape dispenser modified to produce hollow tubes of controlled length with various joints on the end.

Scanners

Manual Digital Camera

One way of capturing a 3D shape is to use a DSLR and take a series of photos circling the subject and at two elevations.
The problem with this approach is that there's no dimensional information inherent in the process and if too few photos are taken the software will not be able to stitch them together.  If too many photos are taken it will take a very long time to do the stitching and modeling.

Matterform 3D Dual Laser Scanner


Trivia: the movie Looker (IMDB, Netflix) has a scene where a women is 3D scanned.

Software

3D Object description File Formats

A common file format for 3D printing is STL(STereo Lithography) (Wiki).
An OBJ(Wiki) file format includes surface color and texture to allow rendering of color 3D animated cartoon figures. (maybe overkill for parts?).
A newer file format is AMF (Wiki) - Additive Manufacturing file format

A common file type to feed a 3D printer is G-Code (Wiki) (List of commands)

Some open source type printers accept this file format, but the proprietary printers have their own file format.
You may or may not be able to make file conversions.  For example I got an automated 2D cutter that can cut very heavy card stock and some harder materials, but it only accepts it own file format so can not be used to do what I want, only what the manufacturer allows (and charges money for).

Drawing

This is software that allows you to draw a 3D object.
3Ders - List of 3D Software-

Slicing Software

Makes horizontal slices through a 3D mesh file and outputs the layers that are going to be printed.
This is the file that's fed to the 3D printer, typically in G-code.

Slic3r - free - Slic3r reads STL, AMF and OBJ files while it can output G-code and SVG files.
KISSlicer - free & Pro versions
Cura - free from Ultimaker open source 3D printer - mentions setting hot end temperature

File Checking Software

netfabb Basic - free version

Machine Control

A regular computer (Mac or PC) can be used to drive the printer, or dedicated firmware can be used on the printer.

Repetier- Software - Firmware - If you have no board yet, get an Arduino Mega 2560 with RAMPS 1.4 shield.
supports Slic3r & Skeinforge (requires Python language)

Designs

There are web pages were you can post your designs (and maybe make some money from them) or download free or for a fee existing designs.

Thingiverse -
pinshape -
MyMiniFactory -
Pritables.com - PRUSA linked?
thangs.com - a search here is  a search of most other design web pages.

Modeling

Software

Autodesk Fusion 360 - $680/year

Services

Fiverr - Gig work
Upwork

References

Ref 1. 2023Jan16: The 3D Printer I'd buy if I started over, 12:55 - PRUSA Mk 4 (Toyota) (they sell 10,000 per month), Bambu Lab X1 (Tesla); they both just work.  The speed of the X1 is due to "input shaping" that may be offered on the Mk 4. Recommended Bambu Lab P1P or the Prusa Mk3S+ kit; fantastic performance for the price.
Ref 2. 2023June: Which is BETTER: Prusa MK4 or Bambu Lab X1 Carbon 3D Printer?, 17:14 -
Ref 3. Selecting a free 3D CAD option - 3D design for 3D printing pt1, 15:10 - Play List 23 parts

Beginner's: Tinker Cad (not SketchUp, Audodesk123D);
Parametric 3D: SolidWorks, Solid Edge, FoFreeCad, Autodesk Inventor, Autodesk Fusion360-has limited free version,
OnShape his best choice. - browser based, requires stable internet connection.
Ref 4. 5 FREE CAD Programs to Design Any Project, 16:06 - Onshape (most intuitive), Fusion 360 (excellent workflow), Flexispot Desks, Solid Edge (has structural, thermal analysis; generative design), FreeCAD (dated, clunky), Inskcape (drawing,

Related

Cricut - makes a 2D stylus cutting that can cut not only paper but other materials including thin aluminum sheet (maybe brass?).
The Explorer Air is their newest machine that has the "Print To Cut" feature allowing first printing (black & white or color) then cutting.  This is done by printing alignment marks and then recognizing them on the cutting machine.
8708590 System and method for printing and cutting, Provo Craft And Novelty, Inc., (Jun 2, 2008) Apr 29, 2014, 400/619, 83/72, 83/74, 271/226, 101/485, 400/621

Glow Forge - 2D laser cutter/engraver with height following optics to make precision cuts on uneven surfaces.
Working bed: 12″ x 20″ max focus following movement 0.5"

Othermill - 3D milling machine 1/8" tool shank, Build Volume 5.5 × 4.5 × 1.6 in

Links

Make web page - 3D Printing  Manufacturing dreams on a desktop.
Amazon - 3D Printers & Supplies - one of the search locations is "Additive Manufacturing Products".
