LS-147 Intercom
© Brooke Clarke 2014
These intercoms are part of my interest in military audio devices.
The LS-147(*)/FI provides two-way audio communications between two or more points. The LS-147(*)/FI may be used in an intercommunication system for a maximum of seven shelters or offices. All stations are connected in parallel to a single pair of wire.
Install the LS-147F/FI at the location where it is to be operated. The unit may be wall or shelf-mounted, or one end may be mounted on a wall and the other end on a shelf.
Photos
Fig 1 Shipping Box

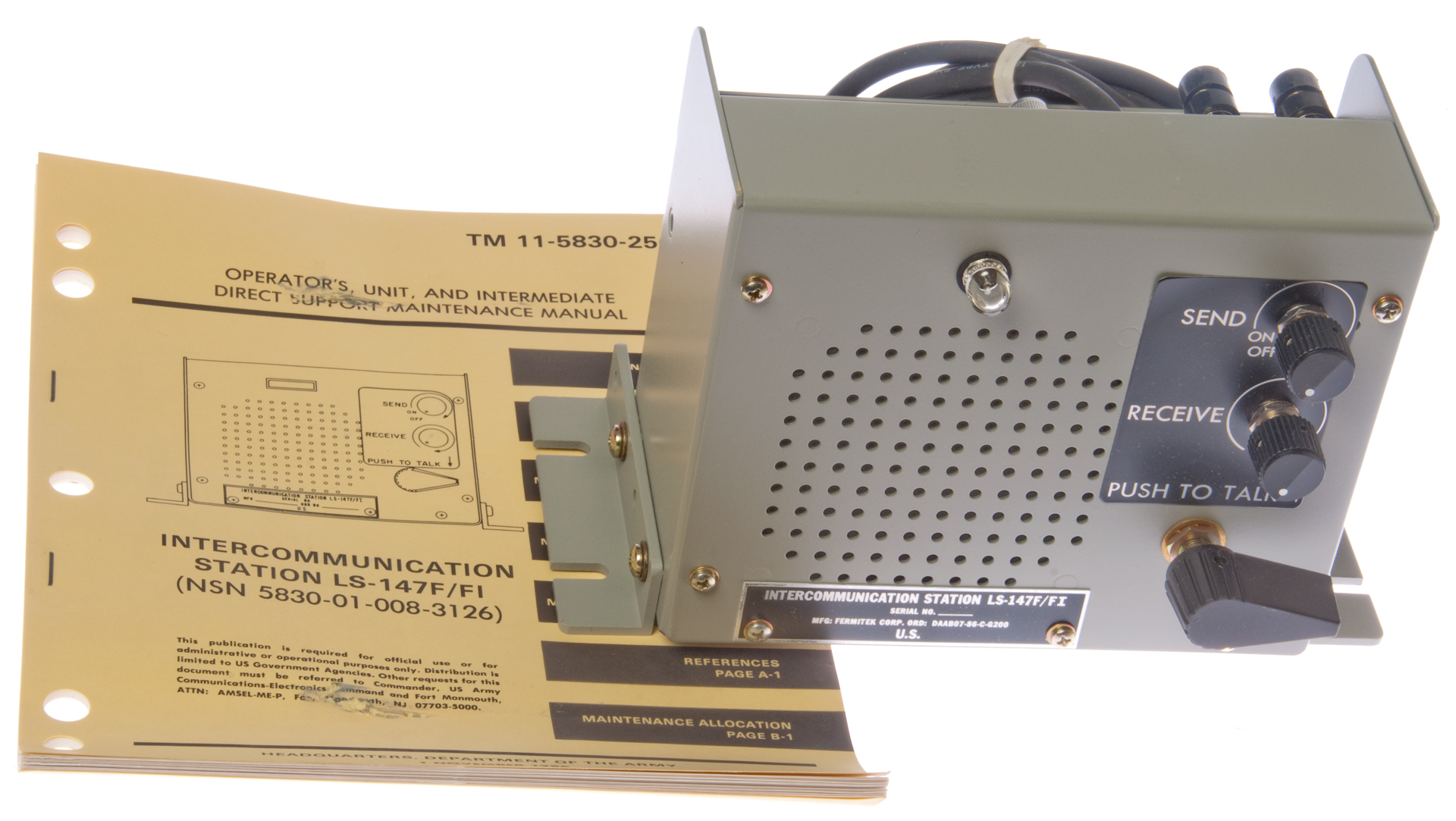

Fig 2 Front w/TM 11-5830-256-13

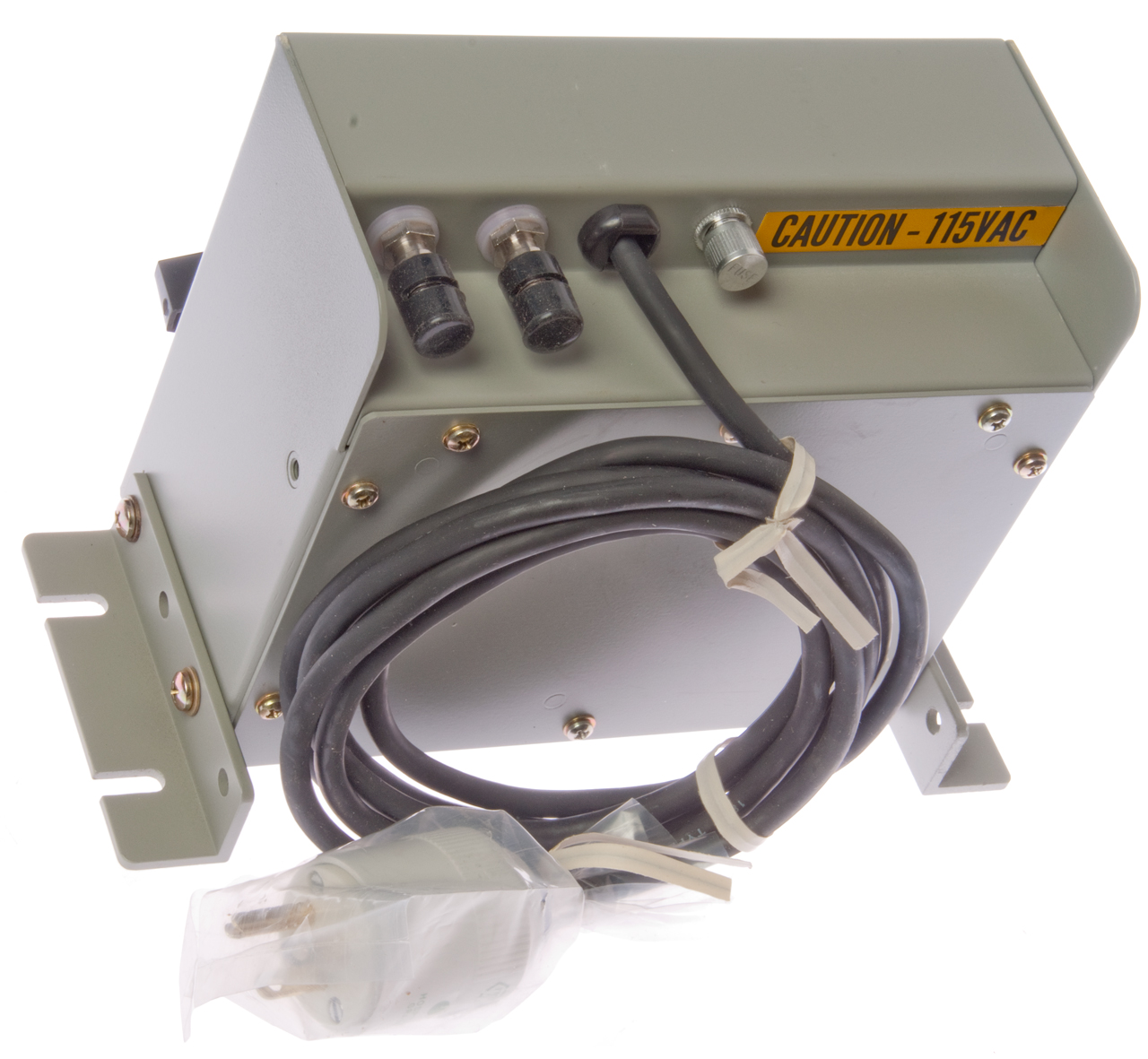

Fig 3 Back
For Testing terminate Binding posts with 10 Ohm (10%) 5 Watt Resistor.

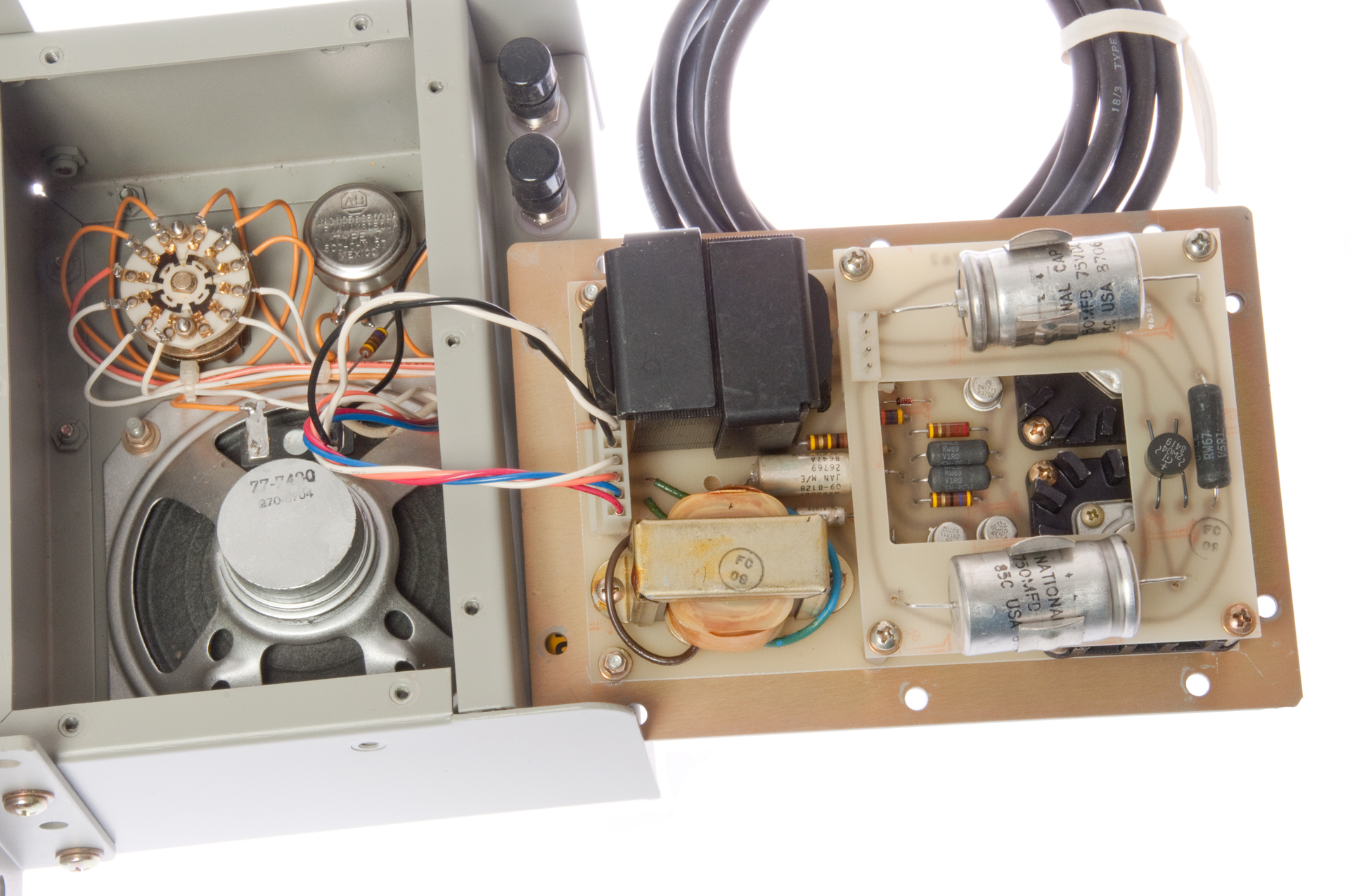

Fig 4 Inside
Power Supply Board 4 test points top to bottom A, B, C, D
A - D = 60 +/- VDC
B - C = 45 +/- 4 VAC
Warning: it's easy to blow the FM02 3/4A fuse when
probing these test points!

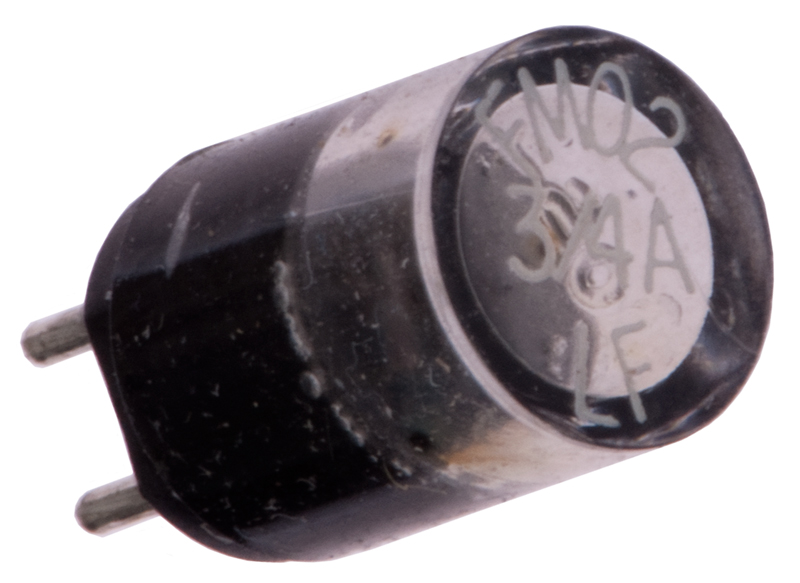

Fuse
Little Fuse (LF) FM02 3/4A Digi-Key p/n: F866-ND Little Fuse 0273.750H
0.243" O.D
0.025" pin O.D.
0.100" pin Center to Center
You can make a "U" shaped jumper (which has no fuse protection) using common 22 AWG hookup wire with the insulation left on the bottom of the "U" so it will not short to the cap.
I've done this to allow measuring the actual current on the AC line and hopefully an find a resettable fuse that will replace the function of this very hard to get fuse. The lack of a readily available fuse may be why these intercoms are on the surplus market. If you know about this tell me. Note: Unlike most military equipment that has a fuse this box does not have a spare fuse.
Version
Cabinet
Pilot
Lamp
Rx
Vol
AC
Plug
Line
Connection
Active
Devices
A
Wood
Behind
Panel
No
2-prong
Screw
Tubes
B
Metal
Behind
PanelNo
2-prong
Screw
Tubes C
Metal
Front
Panel
Yes
3-prong
Push
Tubes D
Metal
Front
Panel
Yes
3-prong
Screw
Tubes E?
F
Metal Front
PanelYes 3-prong Push
Solid
State
TM 11-5830-221-12 Operator's and Organizational Maintenance Manual Intercommunication Stations
LS-147A/Fl FSN 5830-222-1661 - Volume Control, Press to Talk
LS-147B/Fl FSN 5830-681-8616 - Volume Control, Press to Talk
LS-147C/Fl FSN 5830-752-5257 - Rx Vol, PTT, Pilot Ligh (above), Tx Vol
LS-147D/Fl FSN 5830-752-5355 - Rx Vol, PTT, Tx Vol (grouped) Pilot Light (above)
5 June 1961 Change 1; Change 2: 11 Dec 1973; Change 3 14 Sep 1979;
This manual supersedes TM 11-5830-221-12, 7 December 1959.
TM 11-5830-221-24P Organizational, Direct Support, and General Support Maintenance Repair Parts and Special Tools Lists for
TM 11-5830-221-35 Field and Depot Maintenance Manual, Intercommunication Stations:
Telecommunication Station LS-147C/Fl (NSN 5830-00-752-5357
27 May 1977
LS-147A/FI
LS-147B/FI
LS-147C/FI
LS-147D/FI
TM 11-5830-256-13 Operator's, Unit, and Intermediate Direct Support Maintenance Manual Intercommunication Station LS-147F/FI (NSN 5830-01-008-3126)
1 Nov 1986; Change 1 1 Jan 1988;
TM 11-5830-256-23P Organizational and Direct Support Maintenance Repair Parts and Special Tools List
(Including Depot Maintenance Repair Parts and Special Tools) for Intercommunication Station LS-147F/Fl
(NSN 5830-01-008-3126) 15 DECEMBER 1988
