30 MHz to 1230 MHz Birdie Search

FMW
It turns out that in FM Wide mode there are a large number of birdies.  I think that there are two main sources for these:
(1) harmonics of the 20 MHz oscillator that is the basis of the LO for the wideband converter. This is mentioned in the manual.
(2) something related to the band switching points.  Most of the birdies go away when in any mode other than wide FM.  These same birdies are at band switch points.

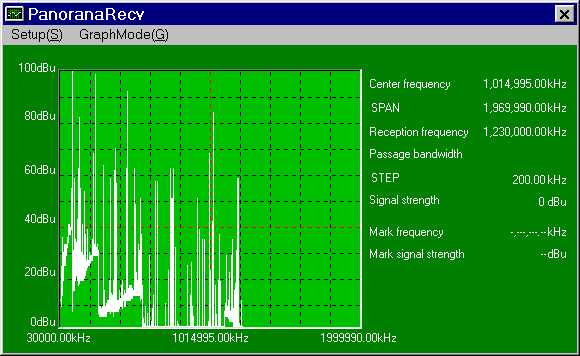

search

Frequency MHz S meter (0 - 10) Computer is Source Change with Atten

102.4 3.5   No
106 10 !!!!!   No
108 0 noise fell off!
120 6.6   No
123.65 7.9   No
140 4   No
144.1 10.0 !!!!   No
149.8 6   No
150.5 8.5   No
152.7 10.0   No
160.0 5.5   No
174.5 5.8   No
185.5 6   No
208.2 3.8   No
360.0 5.6   No
381.65 6   No
392.4 6.5   No
462.25     No
516 6   No
520.0     Yes
554.4 6.5   No
594.9 6.5   No
655.8 5.5   No
664.4 5.5   No
701.5 2   No
741.85 1   No
752.6 6   No
757.95 5.5   No
759.75 4   No
767.6 5   No
774.0 6   No
928.15 5.5   No
942.45 4   No
965.4 2   No
1010.6 6.5   No
1026.65 5.5   No
1032.00 8   No
1120.0 1   Yes
1132.25 5   No
1160.0 2   Yes
1201.8 5.5   No
1290.0 6   No
1295.35 6.5   No
1296.4 6   No
1304.25 1.2   No
1305.0 5   No
1311.4 6   No
1479.85 4.5   No
1548.0 6.5   No
1569.4 7.5   No
1691.15 4   Yes
1692.25 10.0 !!!   No
1703.5 2   No
1713.6 6   No
1732.2 5.6   No
1756.3 10.0   No
1758.45 6   No
1762.0 6   No
1762.7 8.5   No
1764.85 10.0   No
1772.25 5.5   No
1786.7 6   No
1832.1 3   No
1921.8 6   No
1996.5 4   No
