136 to 138 MHz Specturm

30 March 2002

©Brooke Clarke, N6GCE

Frequency - Power Table

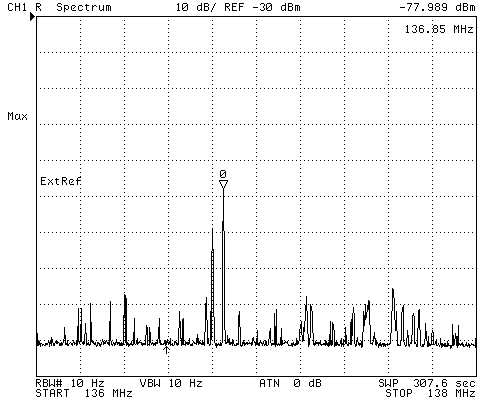

The first run is using an unamplified  Radio Shack scanner antenna 20-176.  The second run is using an eggbeater antenna with a Radio Shack 15-1170 preamp at the antenna.

Freq MHz
Power dBm
Radio Shack ant
Eggbeater Ant

noise floor
-137


136.405
-107

Ariel-1
136.4450
-114


136.1275
-116


136.1900
-111


136.2025
-111


136.2225
-115


136.2475
-110


136.3350
-109


136.4450
-114


136.5025
-117

 NOAA Weather sat 12 and 15
136.5150
-116


136.5575
-114

Ariel-2
136.6500
-112

 Transit 5B N-5
136.6650
-114


136.7725
-108


136.8000
-89

ACRS
136.8500
-78

 ACRS
136.9250
-112

 ACRS
137.0025
-117


137.0625
-117


137.0825
-112


137.0900
-111


137.1125
-117

 ATS-6
137.2250
-108

Bhaskara-2
137.2475
-110


137.3350
-115

Kosmos-1602
137.3475
-115


137.4050
-116


137.4375
-113


137.5075
-109


137.6200
-106

NOAA 14
137.6675
-110


137.7150
-113


137.7400
-111


137.7700
-115


137.8000
-117


137.8925
-115
