Scope
The telescopic sight has some problems.
1. the horizontal cross hair is broken, but both sides seem to stay in the same place and the left side crosses the vertical hair so the aim point is still there.
2. the adjustments do not go far enough to put the scope aim point on the point of impact.
3. for me the biggest problem is that it's very difficult to get your eye in just the correct spot. This may be because this is a 4 x 15 scope. That means it's a 4 power scope with a 15mm dia objective. So, dividing the 15mm by the 4 power gives an exit pupil of 3.75mm and that image size needs to be matched by the pupil of your eye. Looking at scopes on eBay with a 3/8" dovetail shows that a common scope is the 4x32 which has an 8mm exit pupil and the same power, so much more forgiving in terms of eye placement.
I have on order from eBay this scope: CenterPoint Rim Rifle Scope 4x32mm with 3/8" Dovetail Rings, Duplex Reticle by seller: atlanticsmall (under $40 including shipping) This scope gets high marks in a YouTube on air rifle scopes and is the one made by Crosman for their air guns.
YouTube: Trotliners - has the best info on sight adjustment that takes into consideration drop with distance and various parameters related to the ammo used.
Straight Shooters offers a box with 25 each of 18 different pellets so you can see which work best in your gun. These come in different calibers.
Pyramyd Air - one of a number of air gun dealers that knows how to ship pellets without damaging them.
Airguns of Arizona - another major air gun dealer
Crosman P1377 American Classic Pellet
Pistol
Red Ryder model 1938B Fig 1 & 2
This is the classical lever action repeating BB rifle.
The stock is made from a board that's slightly more than
13/16" thick.
1938B was made between 1979 and 14987.
Quick Skill (Quick Kill) Model 95B Fig 3
& 4
The stocks on the 95B are very similar to the stocks on a real
rifle. It's intended for training in instinctive
shooting, i.e. without relying on the sights. This can
be done by having someone throw objects into the air.
(The box contains two eye protection glasses). The box
is marked Model 197B, which may be the number for the set
rather than just the rifle? The instruction booklet says
Model 199B B*B Gun. Model numbers 197B and 199B do not
appear in the Daisy Outdoor Products Air Rifle Chronology.
95B was made between 1978 and 1998.
Related
Figures:

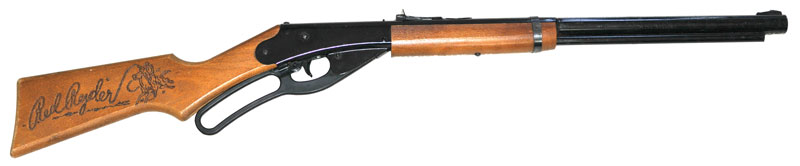

Fig 1 (right) & Fig 2 (Left) Model 1938B "Red Ryder"
Fig 3 (right) & Fig 4 (left) Model 95B "Quick Skill"
Fig 7 Model 120 break action, Scope Replacement

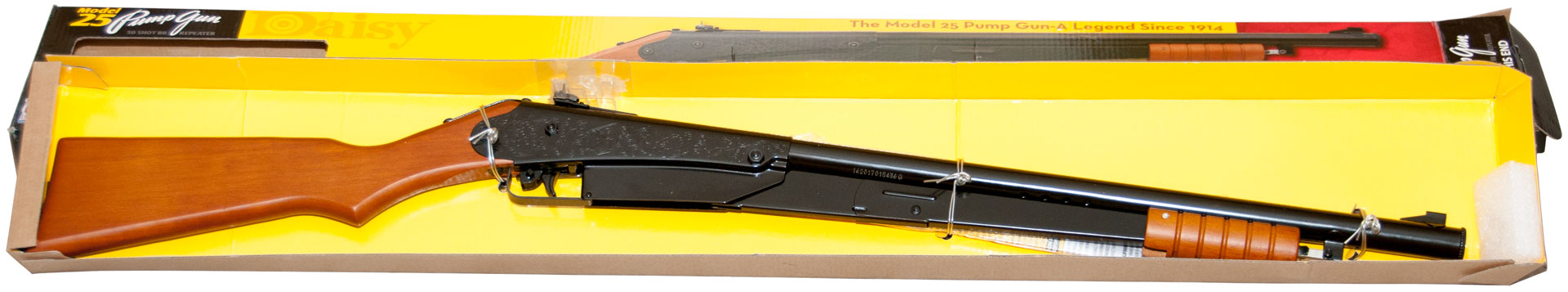

Model 25 Fig 1 New in the box

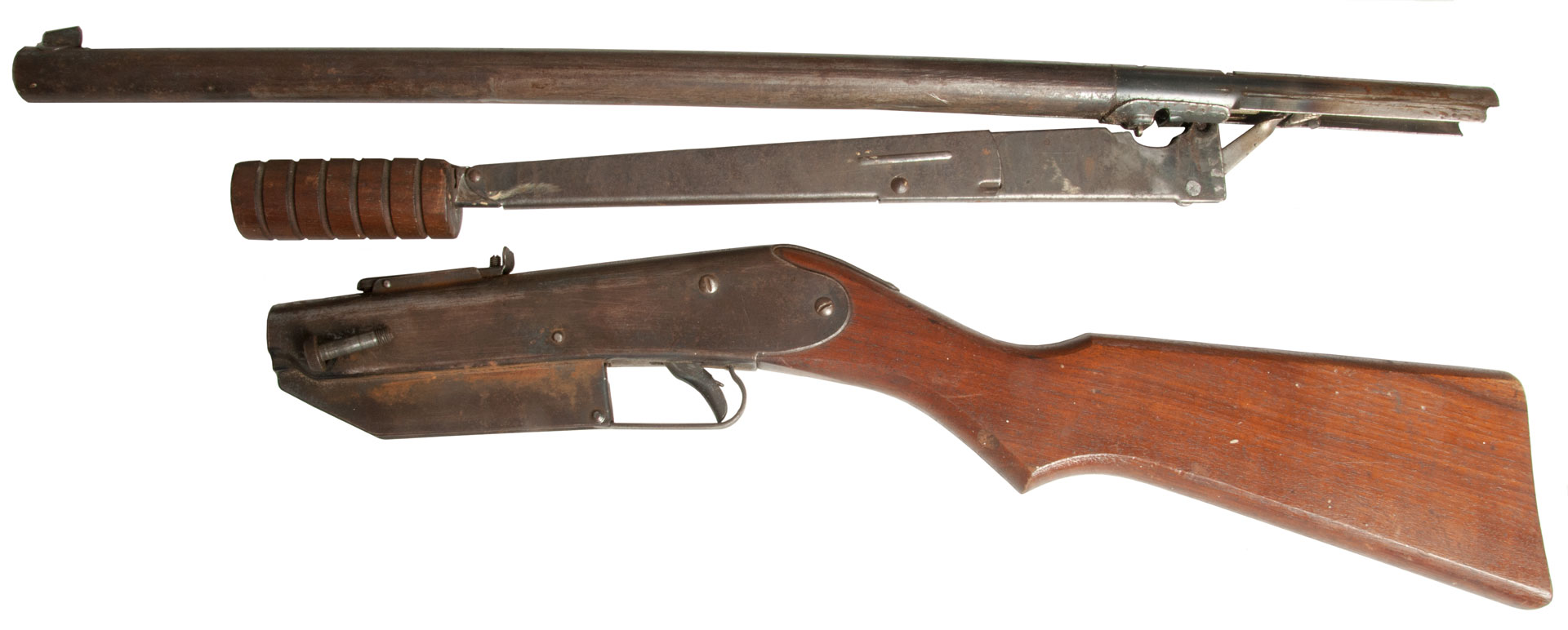

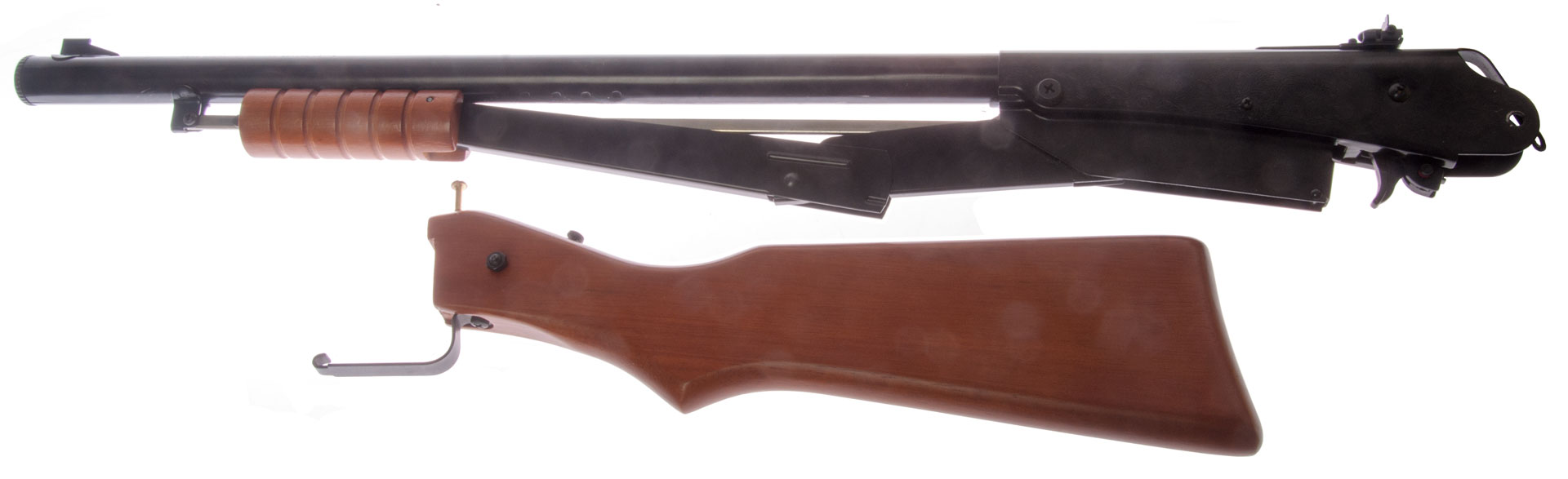

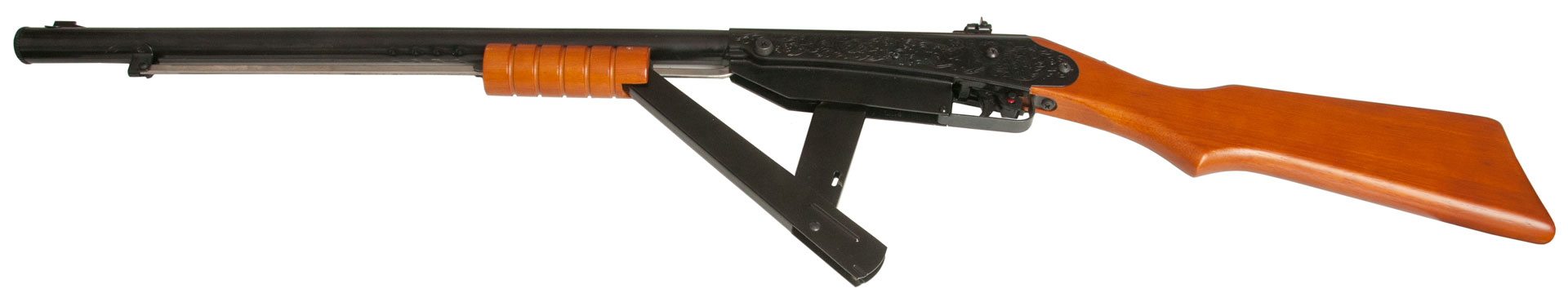

Model 25 Fig 3 Shipped with stock off, not using take-down screw.

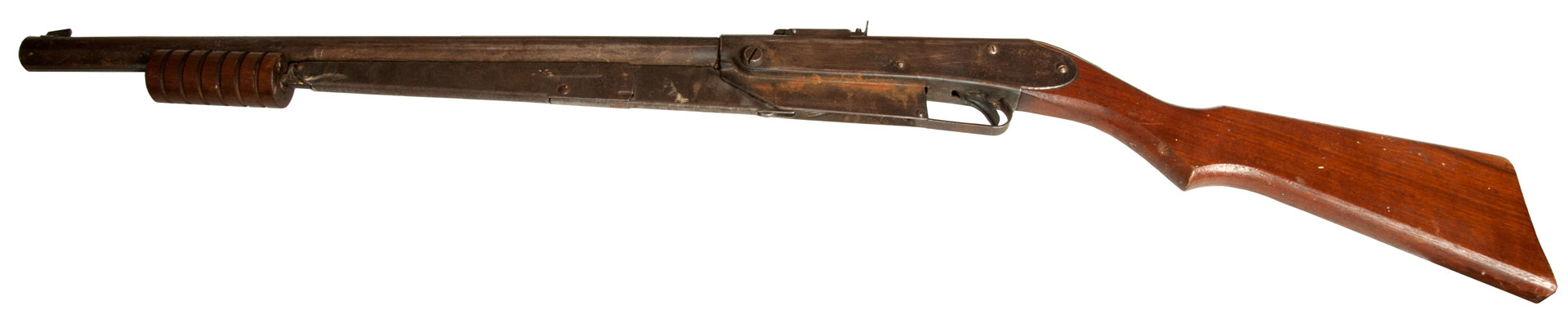

Model 25 Fig 10 - very old example
Crosman P1377 American Classic Pellet Pistol
1x30 Wizard Red/Green Dot Scope
Crosman Shoulder Stock
ACOG Style 1x32 Red/Green Dot Sight
TargetsFig 1 (right) & Fig 2 (Left) Model 1938B "Red Ryder"
Fig 3 (right) & Fig 4 (left) Model 95B "Quick Skill"
Fig 7 Model 120 break action, Scope Replacement
Model 25 Fig 1 New in the box
Model 25 Fig 3 Shipped with stock off, not using take-down screw.
Model 25 Fig 10 - very old example
Crosman P1377 American Classic Pellet Pistol
1x30 Wizard Red/Green Dot Scope
Crosman Shoulder Stock
ACOG Style 1x32 Red/Green Dot Sight
Description
Related
Patents
Links
Background
Daisy
(Wiki)
has been making BB guns (Wiki) since
the 1890s. The early air guns were designed to shoot
lead shot as made for shotguns. In the mid 1920s the
American Ball (bearing) Company started making "Bulls Eye"
ammo for BB guns. Being steel rather than lead it worked
better and daisy later bought the company.
BB guns are part of the Air Gun (Wiki) group. The two most common calibers of Pellet guns (Wiki) are 0.177 and 0.22. Where the 0.177 pellet is the same size as a BB and the 0.22 is the same size as the 22 rim fire (Wiki) bullet.
The Daisy Model 120 is a 0.177 caliber pellet gun. I think it also shoots BBs.
Also see my Popguns web page since Daily made many of those.
These are what's called Spring Piston air guns (Wiki). If the metal coil spring is replaced by gas the gun is called a Gas Piston air gun (Wiki). These have a number of advantages over Spring Piston air guns, the main one being more accuracy, less movement and quieter.
What today are called pellet guns, i.e. compressed air powered were called Gas Operated Firearms in the 1800s patents.
Later patents(starting about 1900) use the term "gas operated firearms" for semi or full auto guns that are powered by the gas generated from the cartridge.

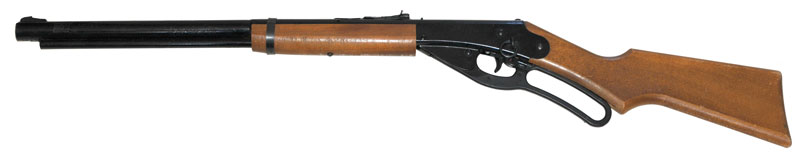

Fig 1 Daisy 1938B BB Gun "Red Ryder"The "Red Ryder" is mainly used by visiting boys. BBs are the most economical way to have fun plinking (Wiki).  |
Fig 2
Daisy 1938B BB Gun "Red Ryder" |
Fig 3 Daisy 95B |
Fig 4
Daisy 95B |

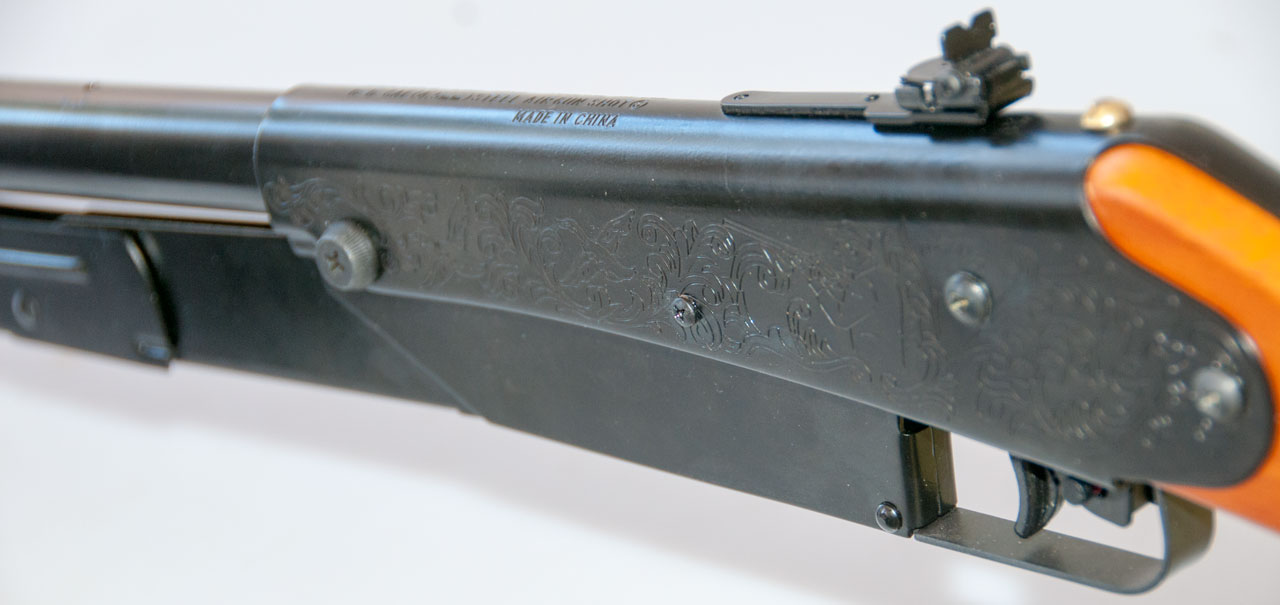

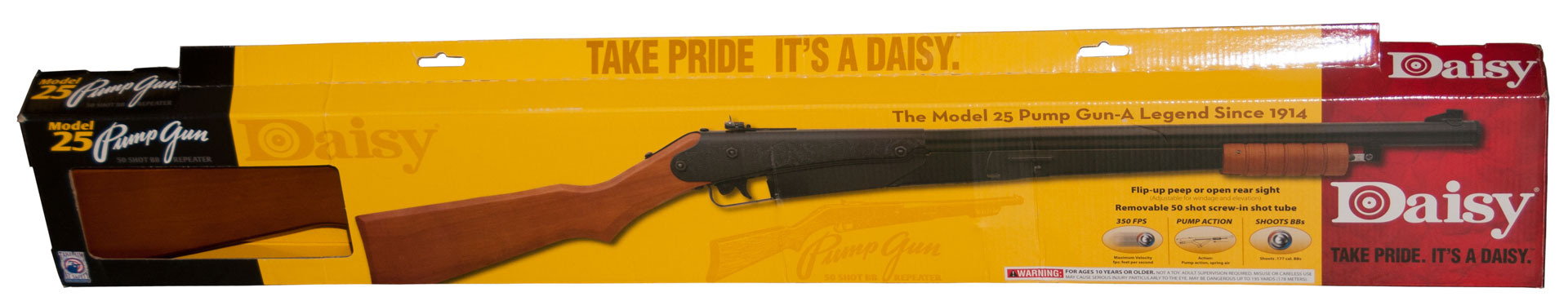

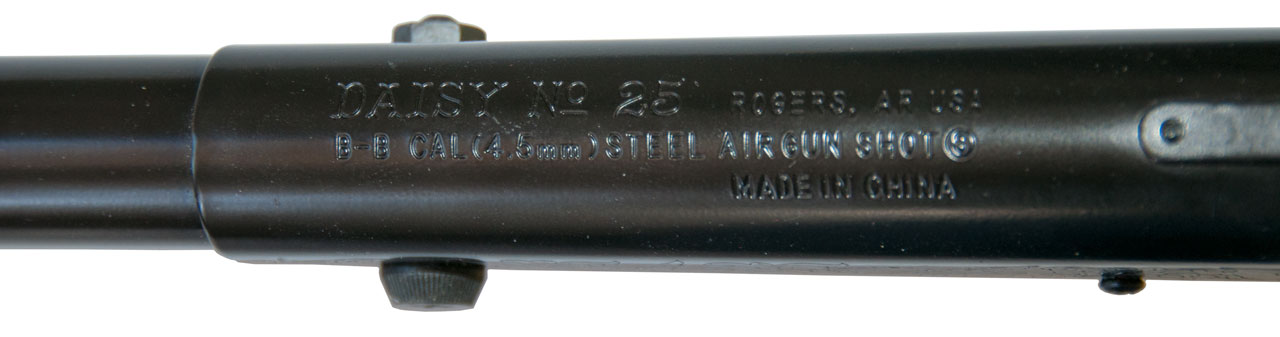

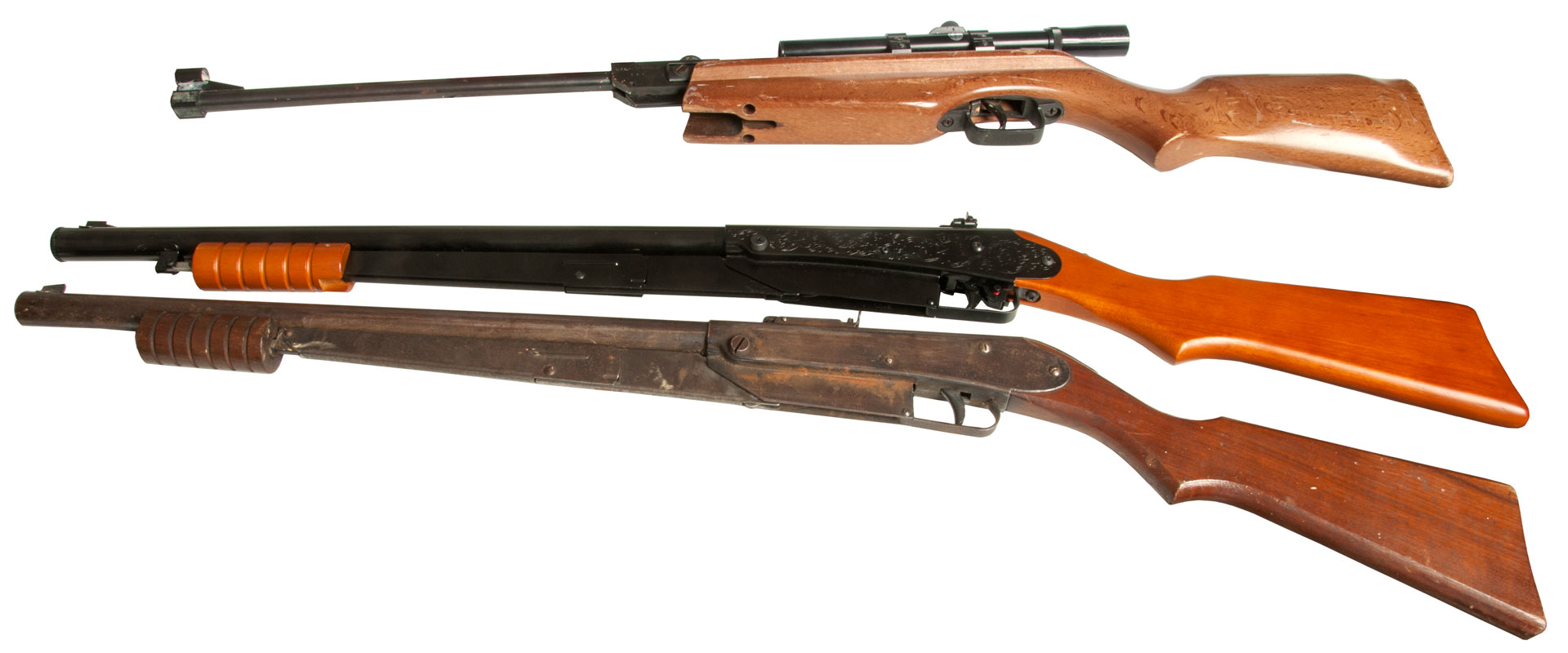

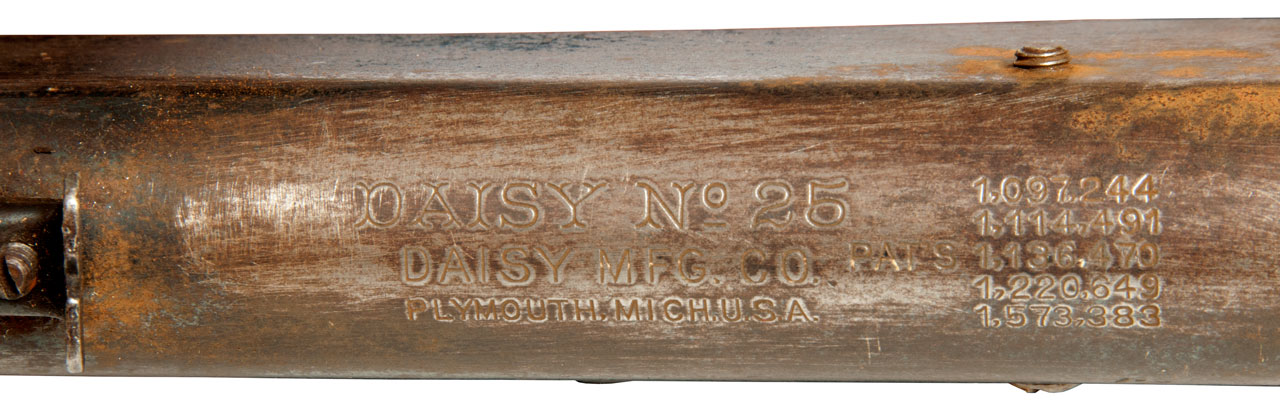

| Fig 5 Model 25 Pump action BB gun |

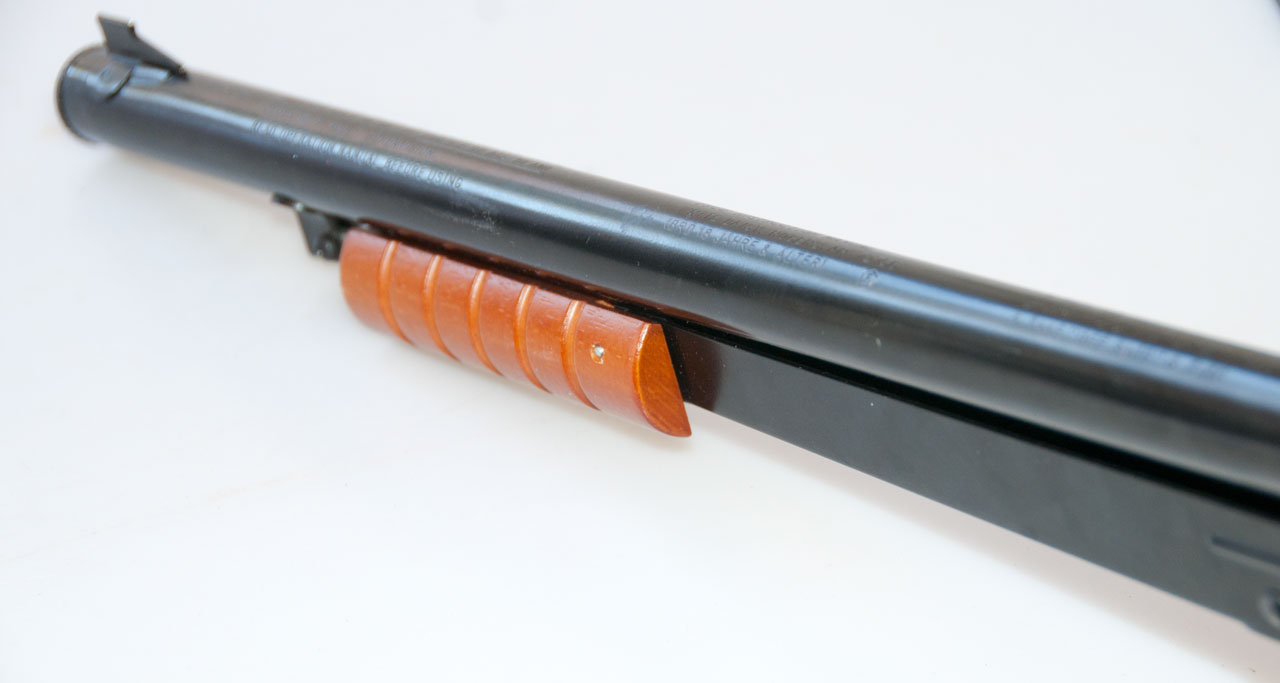

| Fig 6 Model 25 Pump action BB gun |

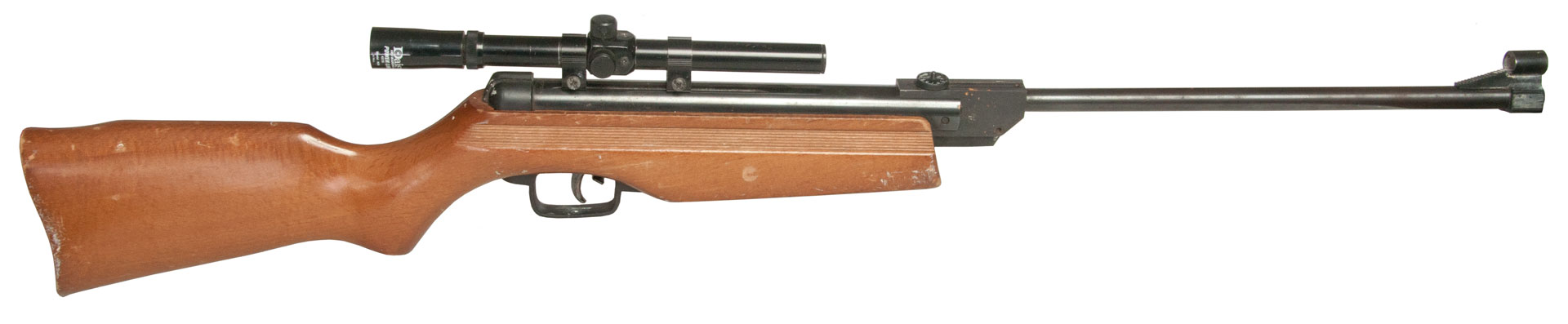

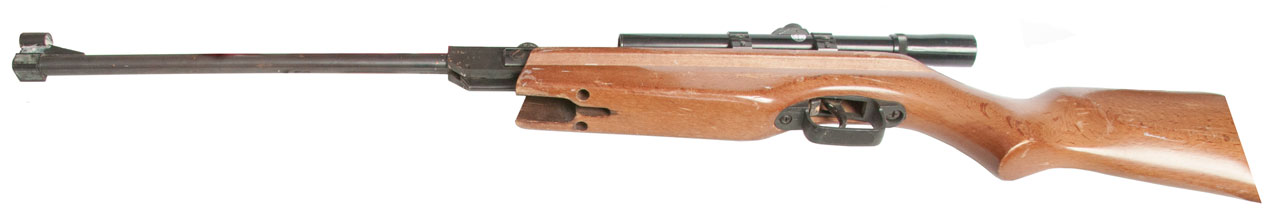

Fig 7 Daisy Model 120.177 cal. break barrel which Daisy imported 1984-1985, it was made by El Gamo of Spain |
Fig 8 Daisy Model 120 |
Fig 9 Daisy Model 120 (photo has but cut
off) |
Scope
The telescopic sight has some problems.1. the horizontal cross hair is broken, but both sides seem to stay in the same place and the left side crosses the vertical hair so the aim point is still there.
2. the adjustments do not go far enough to put the scope aim point on the point of impact.
3. for me the biggest problem is that it's very difficult to get your eye in just the correct spot. This may be because this is a 4 x 15 scope. That means it's a 4 power scope with a 15mm dia objective. So, dividing the 15mm by the 4 power gives an exit pupil of 3.75mm and that image size needs to be matched by the pupil of your eye. Looking at scopes on eBay with a 3/8" dovetail shows that a common scope is the 4x32 which has an 8mm exit pupil and the same power, so much more forgiving in terms of eye placement.

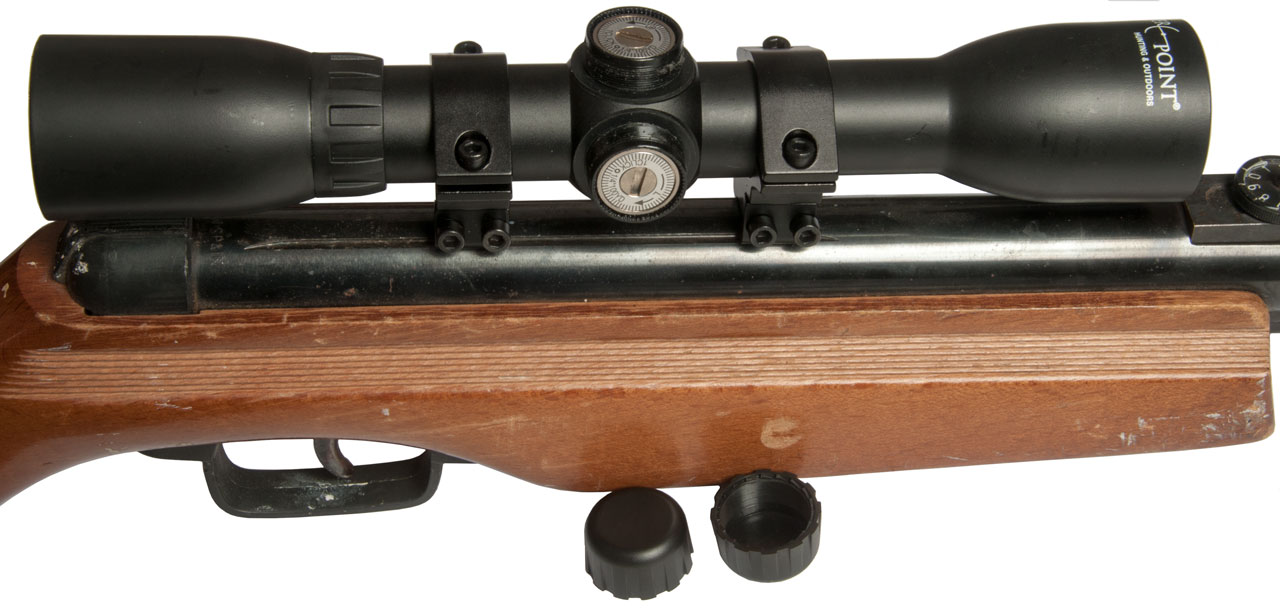

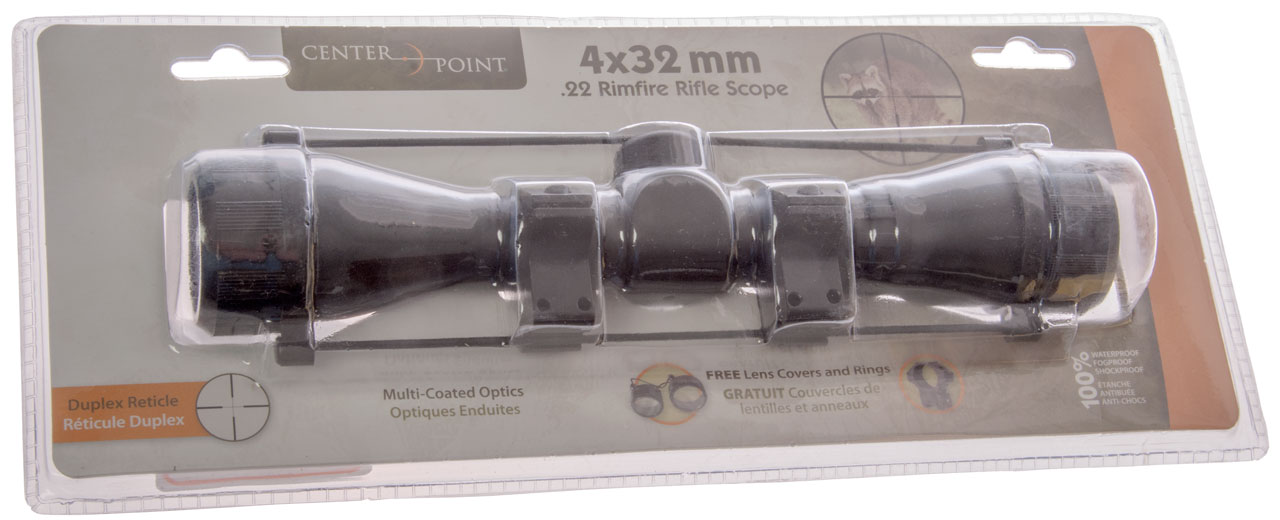

I have on order from eBay this scope: CenterPoint Rim Rifle Scope 4x32mm with 3/8" Dovetail Rings, Duplex Reticle by seller: atlanticsmall (under $40 including shipping) This scope gets high marks in a YouTube on air rifle scopes and is the one made by Crosman for their air guns.
Fig 1 Front of package |
Fig 2 Back of package |

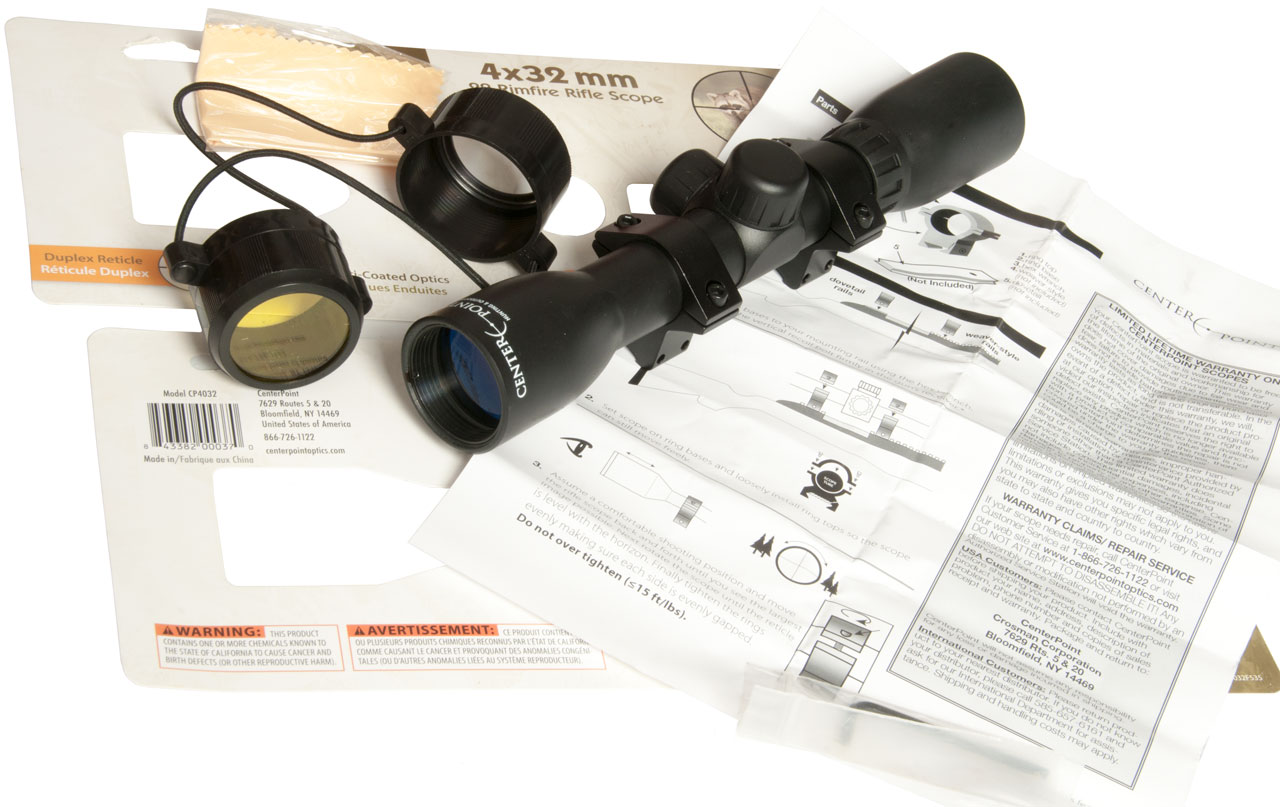

Fig 3 In the box - 3mm hex wrench,
cleaning cloth, 2-way lens cap (clear or yellow filter) |

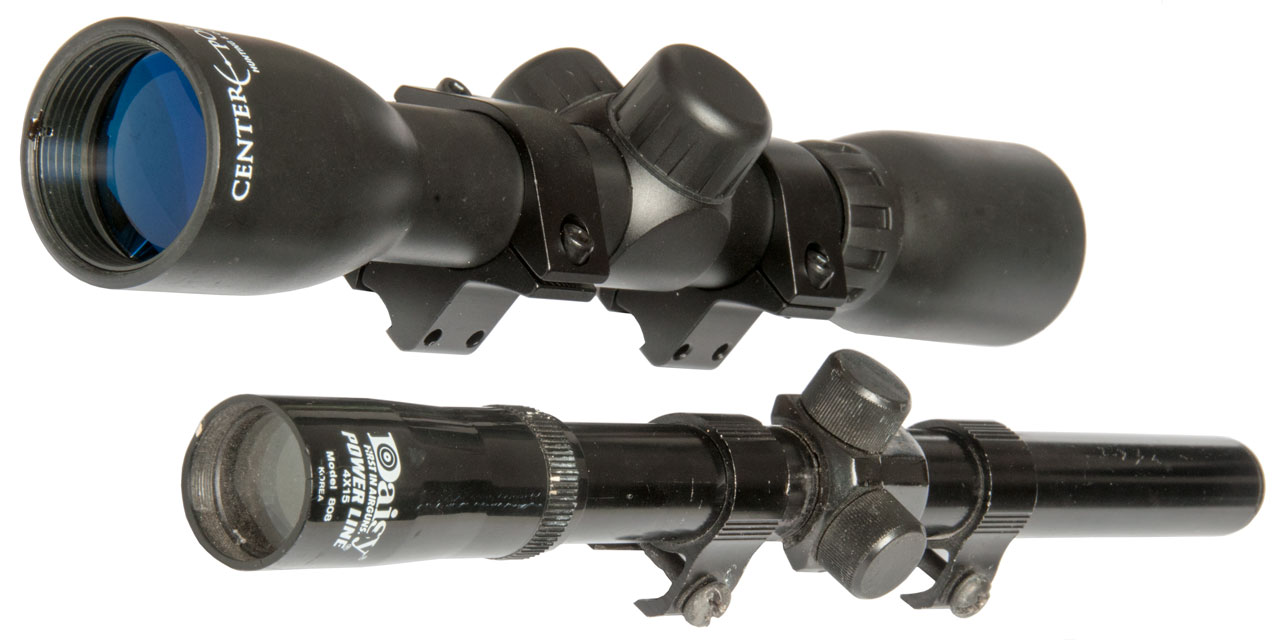

Fig 4 Compare CenterPoint 4x32 with Daisy
4x15. The CenterPoint is more than twice the objective dia plus the CenterPoint scope has optical coatings and it looks like the Daisy is raw glass.  |
Fig 5 View through the Daisy 4x15mm
scope. |

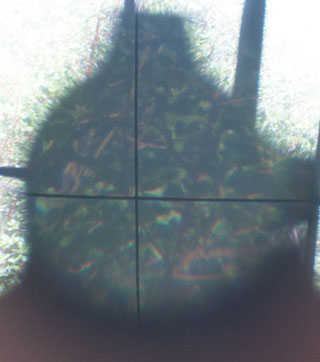

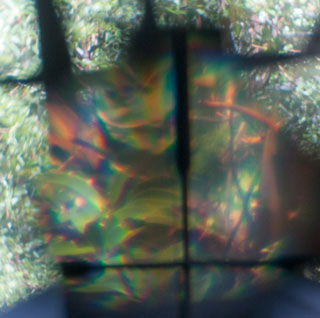

Fig 6 The view through the CenterPoint is
brighter and with better colors. Note the cross
hairs are thick near the edges and narrow at the center. |

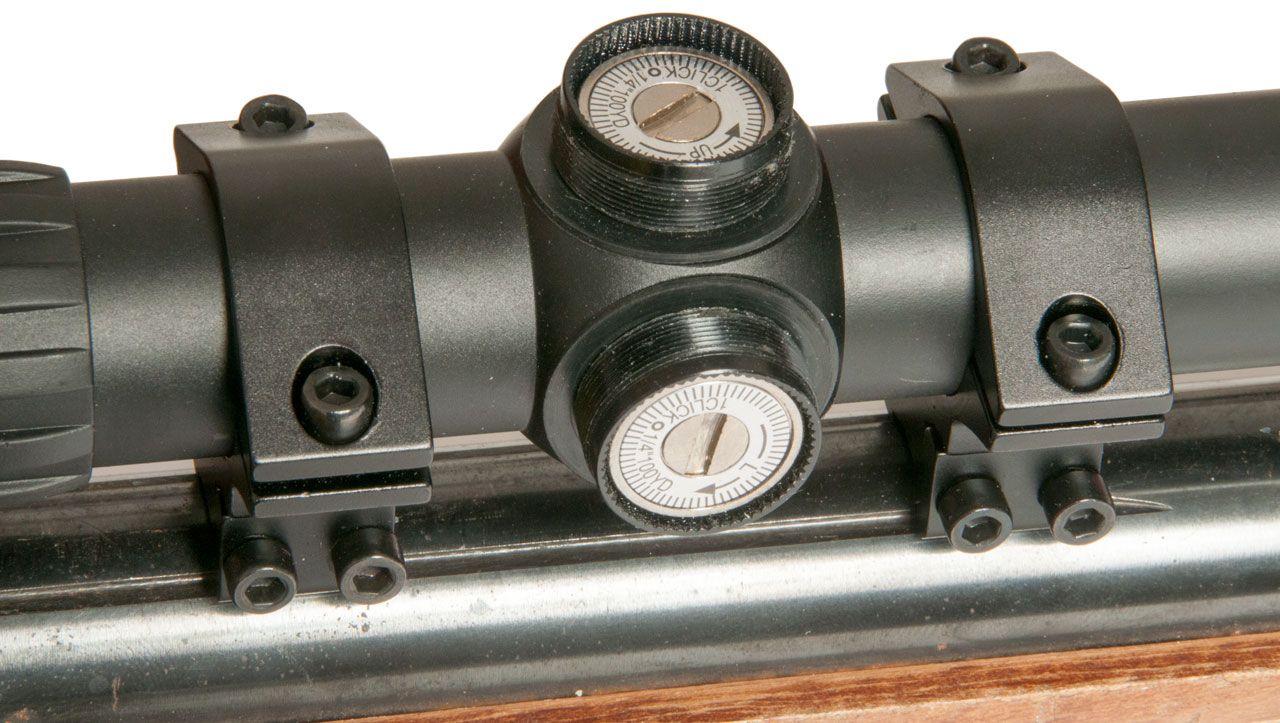

Fig 7 One Click = 1/4" @ 100 Yards. |
Fig 8 First shots would not even hit
8-1/2 x 11 paper. Notice the elevation wheel is all the way down and still not enough, so shimmed under the front ring to raise front of scope using a double thickness of 3x5 card.  |

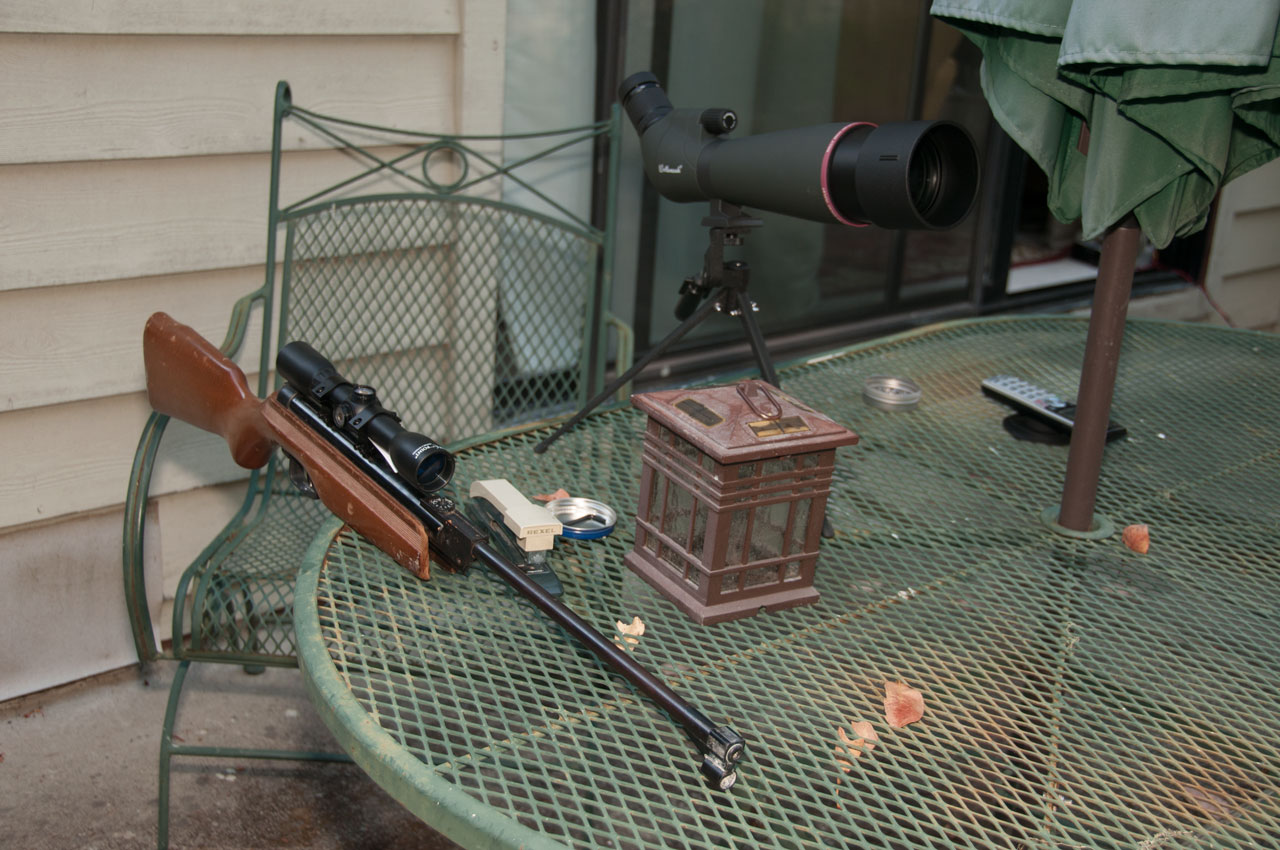

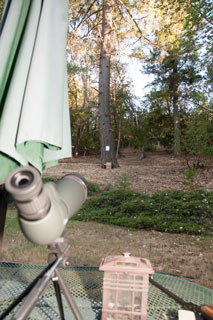

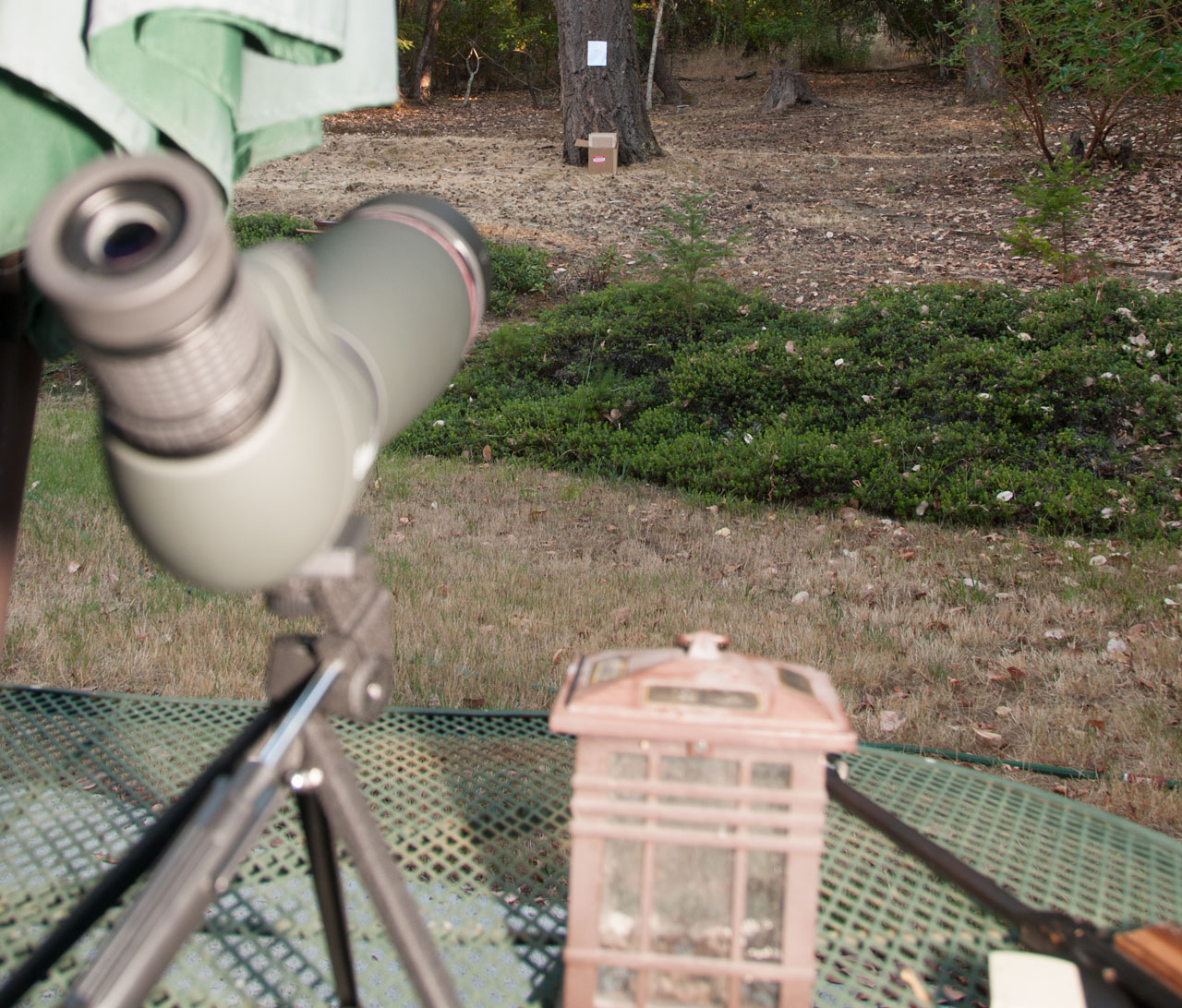

Fig 9 Rear patio table, with 80mm 20-60X
Spotting scope to save a
lot of walking. Note paper shim under front ring. |
Fig 10 Added cardboard box to confirm
initial shooting very high. But even after
screwing elevation all the way down was still many
inches high. |
YouTube: Trotliners - has the best info on sight adjustment that takes into consideration drop with distance and various parameters related to the ammo used.
Straight Shooters offers a box with 25 each of 18 different pellets so you can see which work best in your gun. These come in different calibers.
Pyramyd Air - one of a number of air gun dealers that knows how to ship pellets without damaging them.
Airguns of Arizona - another major air gun dealer
Napier pellet lube - is it worth the trouble along with
sorting pellets by weight? let
me know.

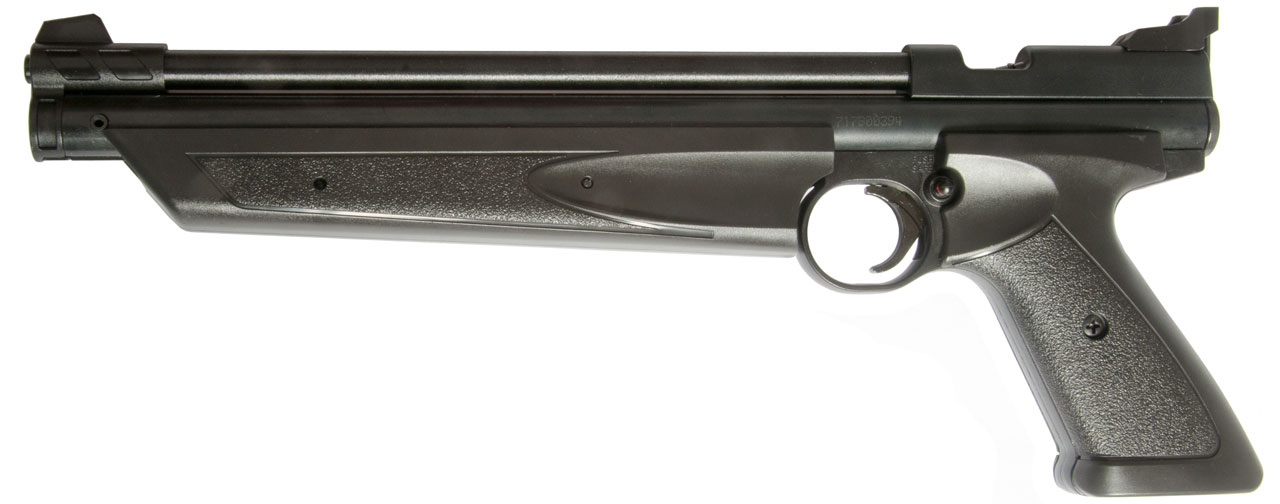

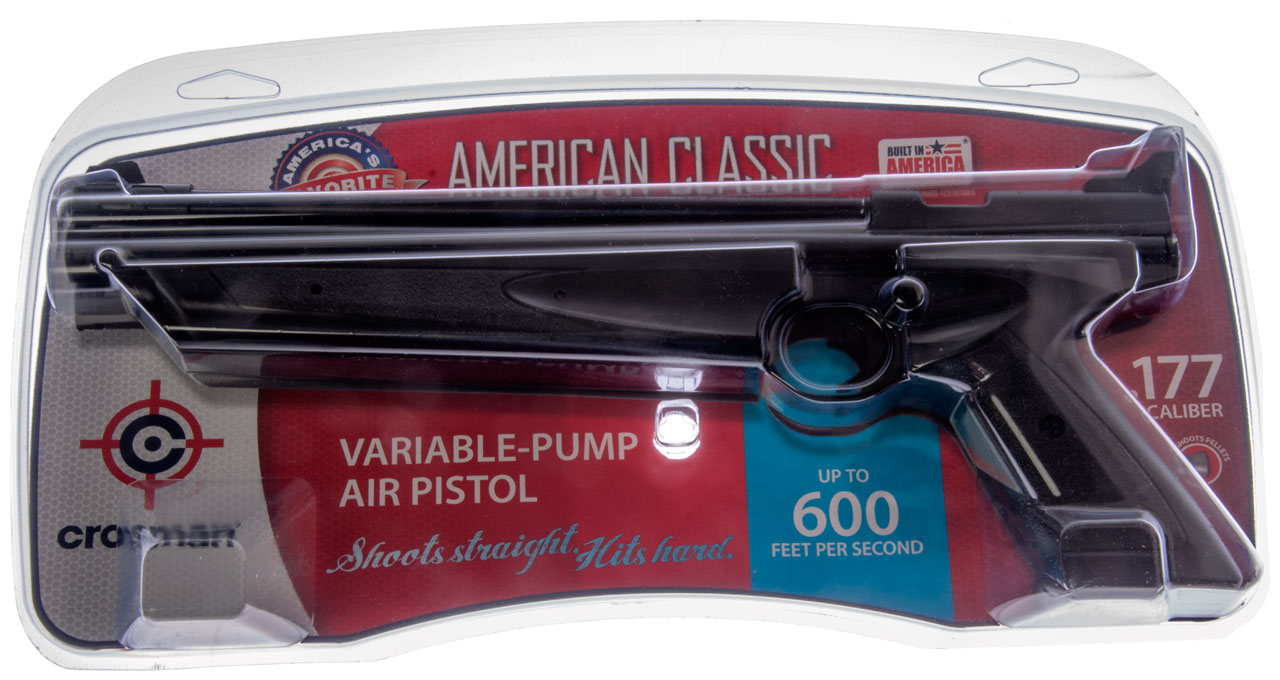

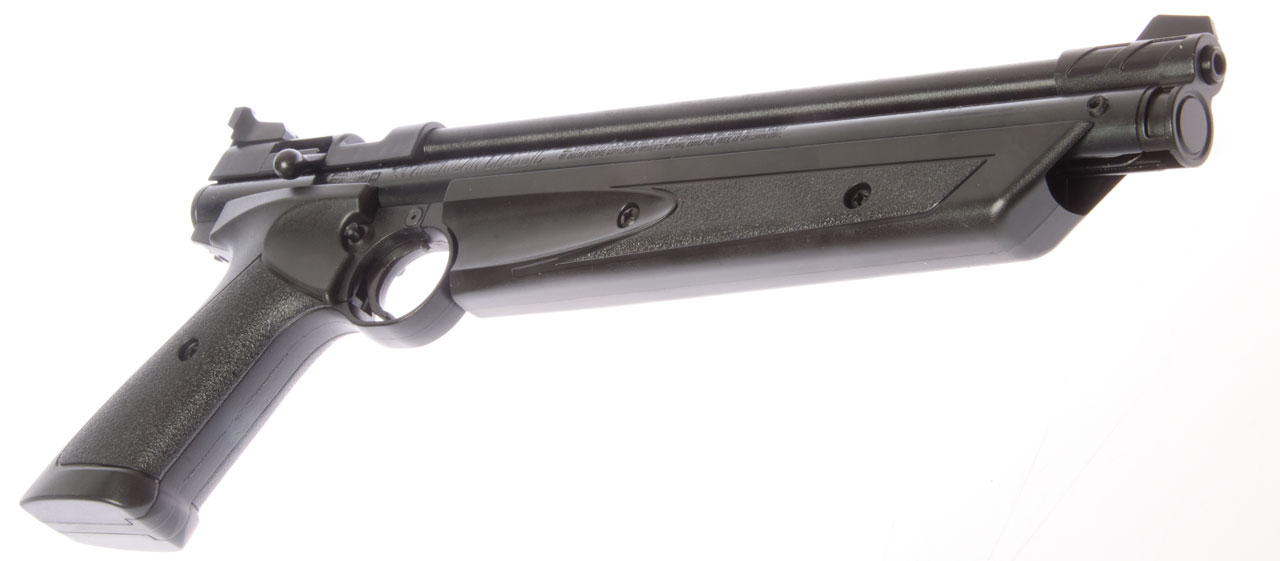

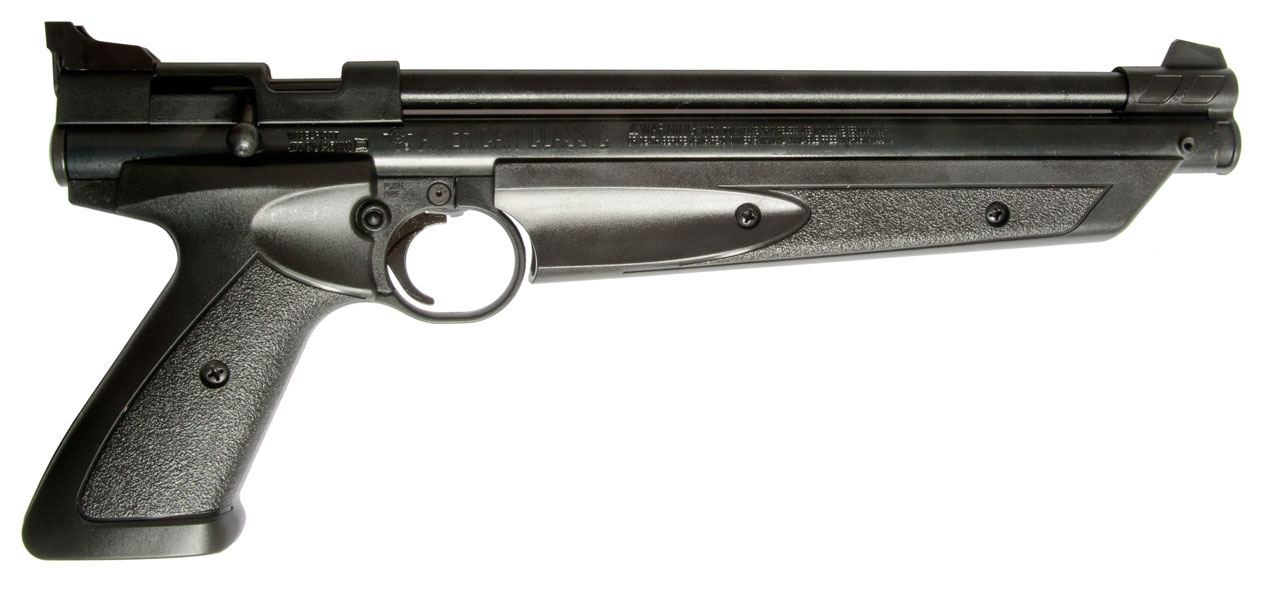

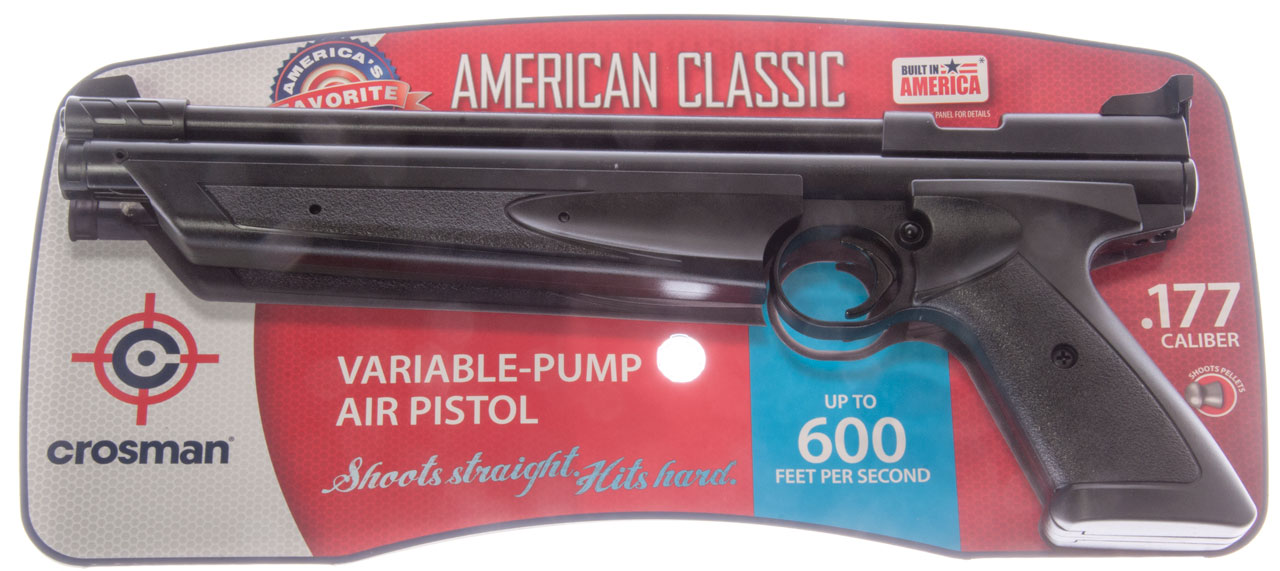

Crosman P1377 American Classic Pellet
Pistol
The thing that recommends this model is that there are a large number of modifications available to fit this .177 caliber pistol and the companion P1322 pistol in .22 caliber. As well as being reasonably priced on Amazon prime (about $50 including shipping).
The problem I have is my eyes will no focus on the rear sight, front sight and target all at the same time, so am looking into getting the 459MT Crossman P13xx to 3/8" adapter and a 3/8" rail pistol scope.
This problem of focusing on the target, front sight and rear sight all at the same time as well as the problems of the telescopic sight were addressed by Sir Howard Grubb F.R.S. in his August 1901 paper titled A New Collimating-Telescope Gun-Sight for Large and Small Ordnance. This was the invention of the Reflex or Reflector (Wiki) sight, aka: Red Dot sight. The key feature is that the reticle and the target are both at infinity so your eye does not need to refocus.

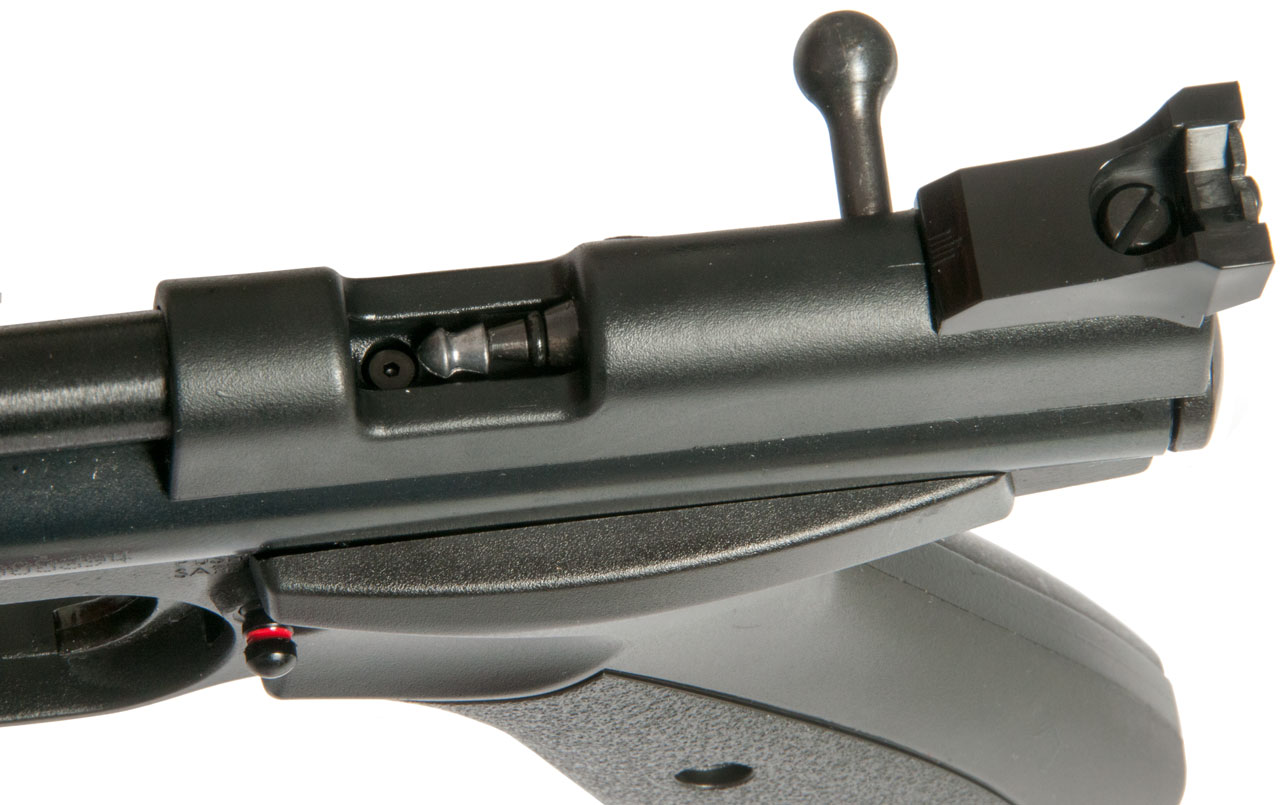

Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7

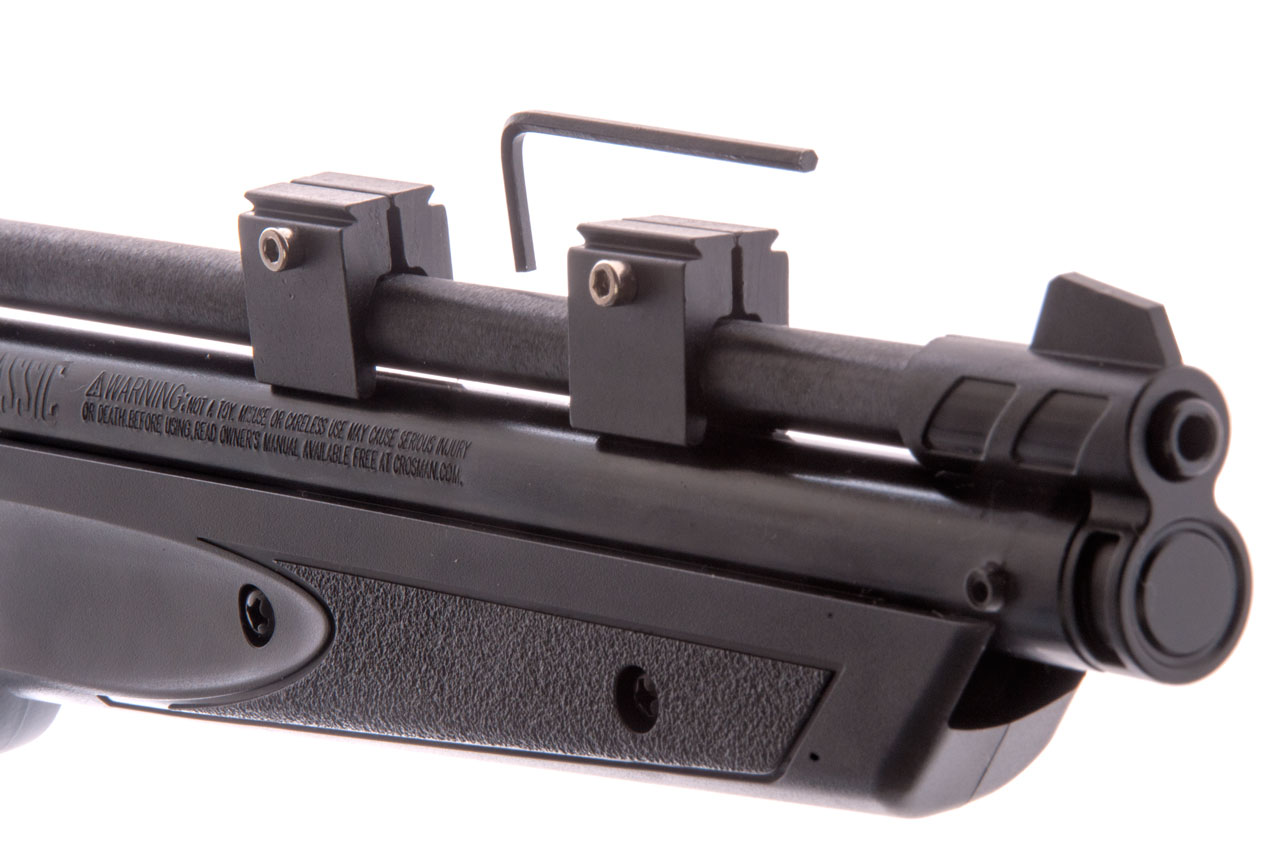

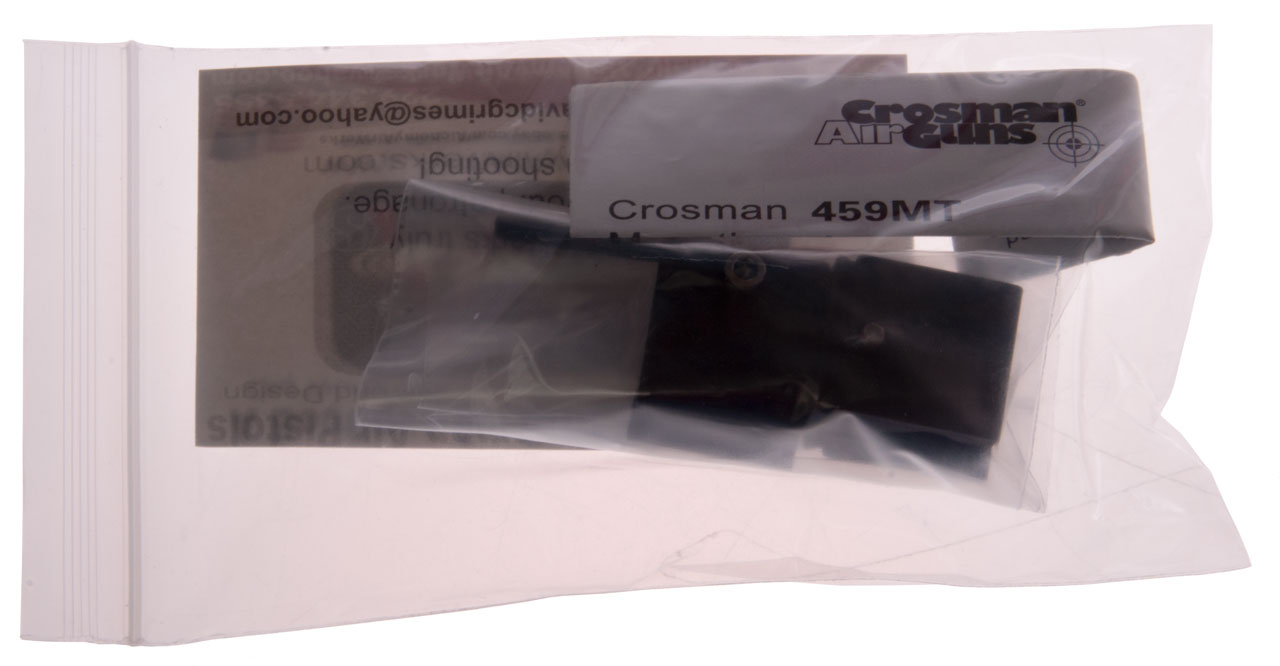

Mount Fig 1 - 459MT 3/8" Crosman mount for 7/16" barrel
Mount Fig 2 - 459MT on 1377 pistol

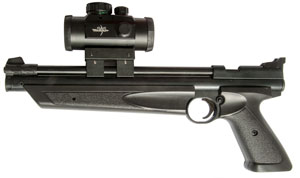

1x30 Wizard Red/Green Dot Scope
Fig 1: Wizard 1x30mm Red/ Green Dot Scope
Marked: Southland Archery Supply SAS
Fig 2

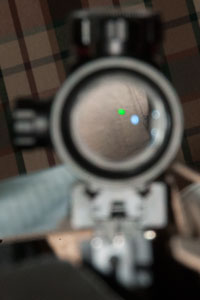

The dot is focused at infinity so when it's in focus for a photo the sight itself is very out of focus.

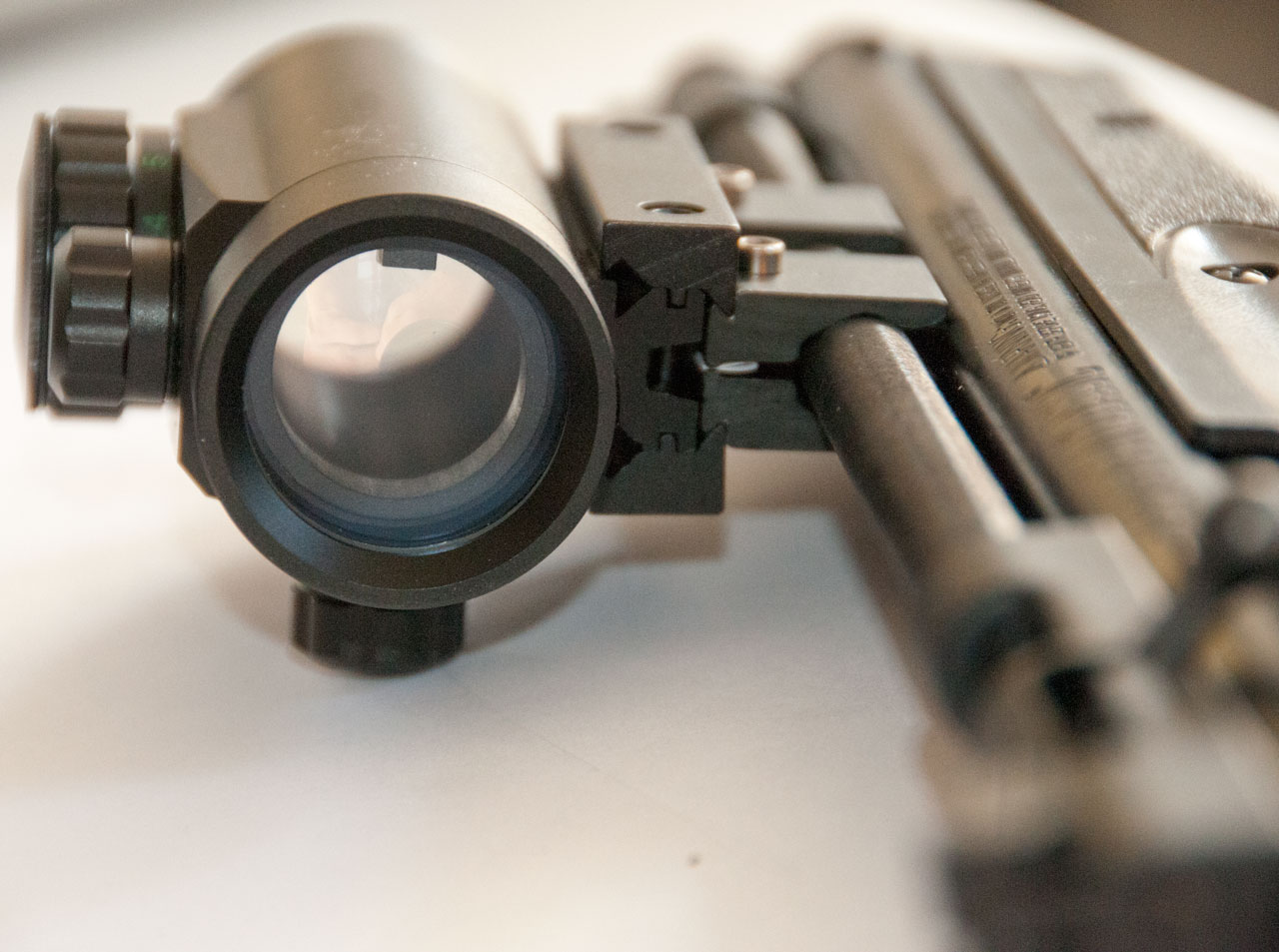

Fig 3 The mounting can be reversed to work with either
7/8" or in this case 3/8" dovetails. It did not clamp so some 3x5 card stock was used to ship the 459MT to be wider.

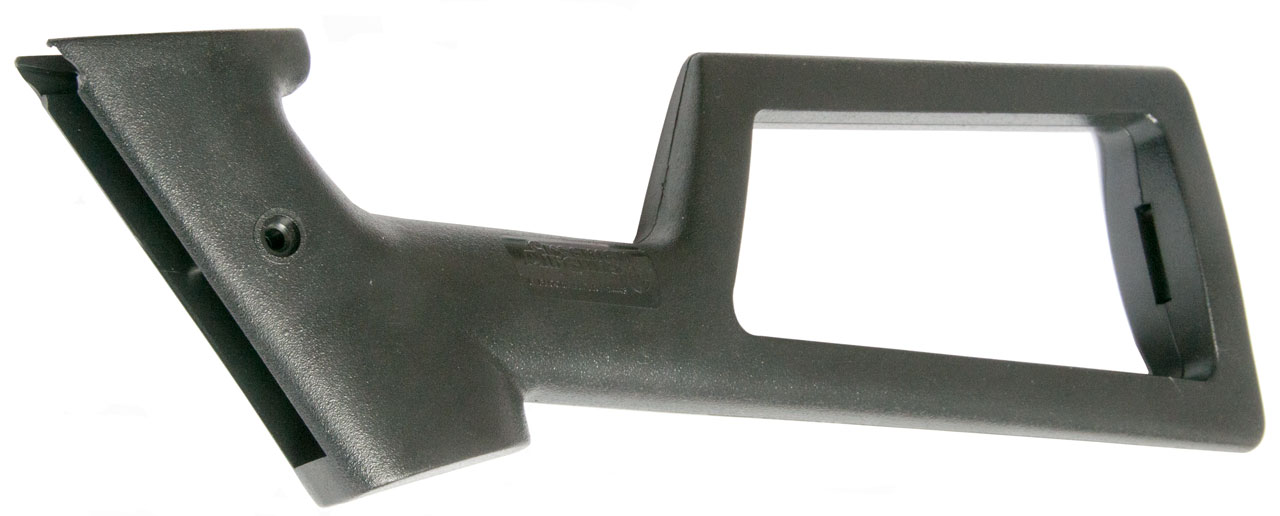

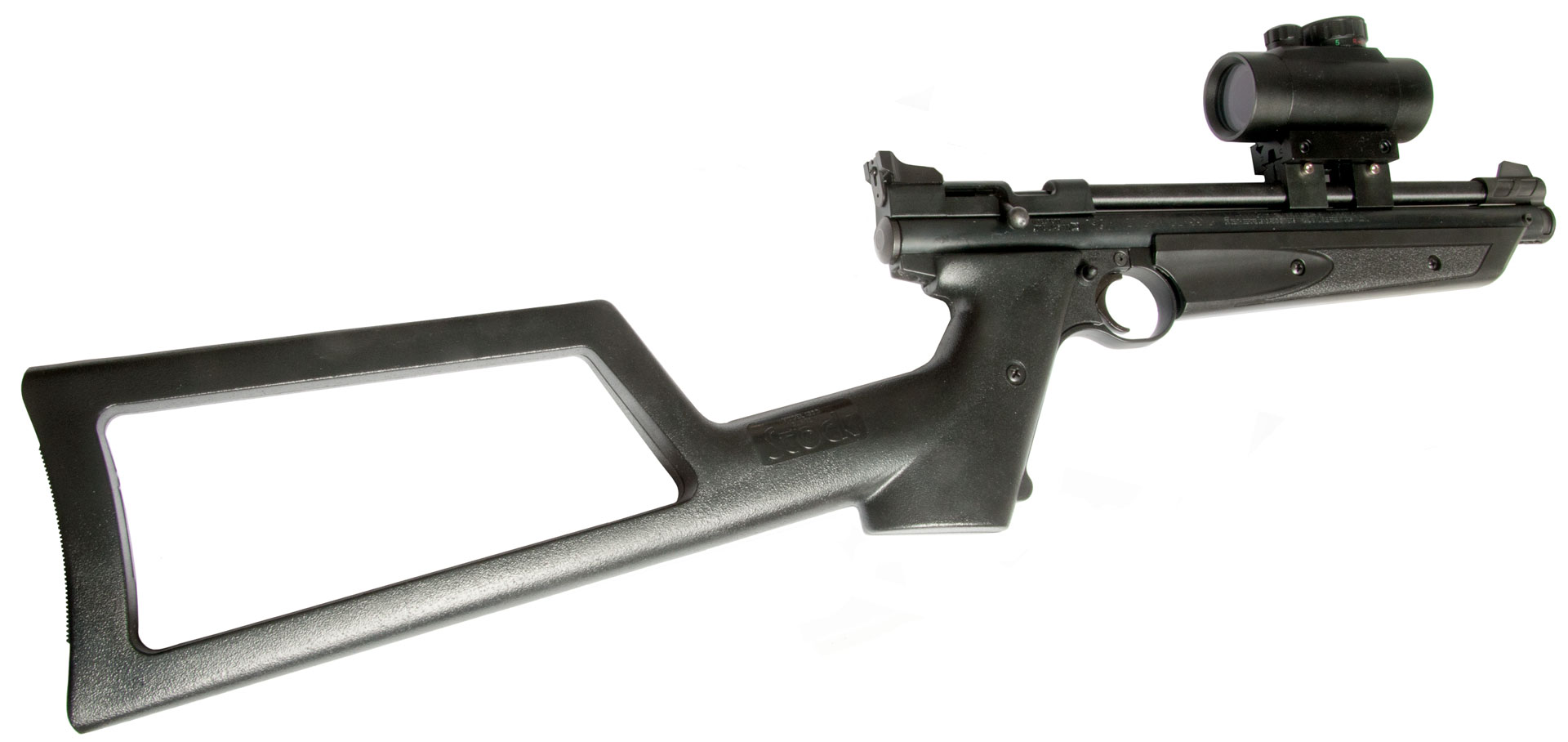

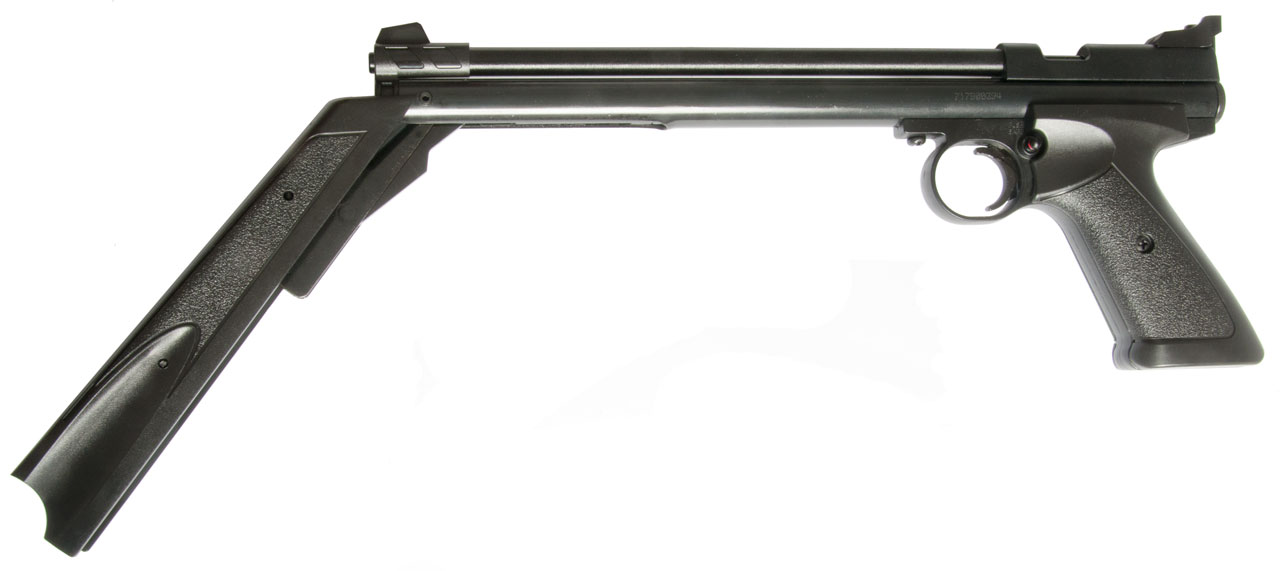

Crosman Shoulder Stock
Fig 4
Fig 5
Fig 6

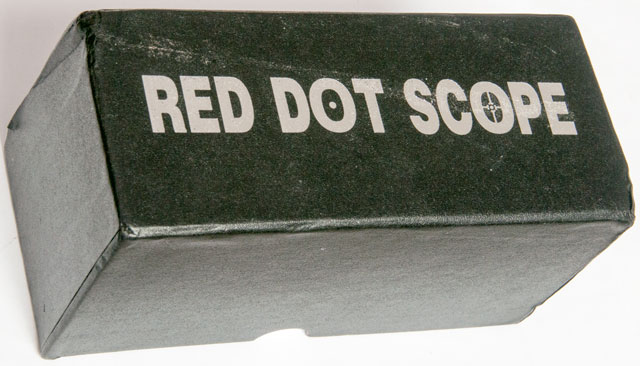

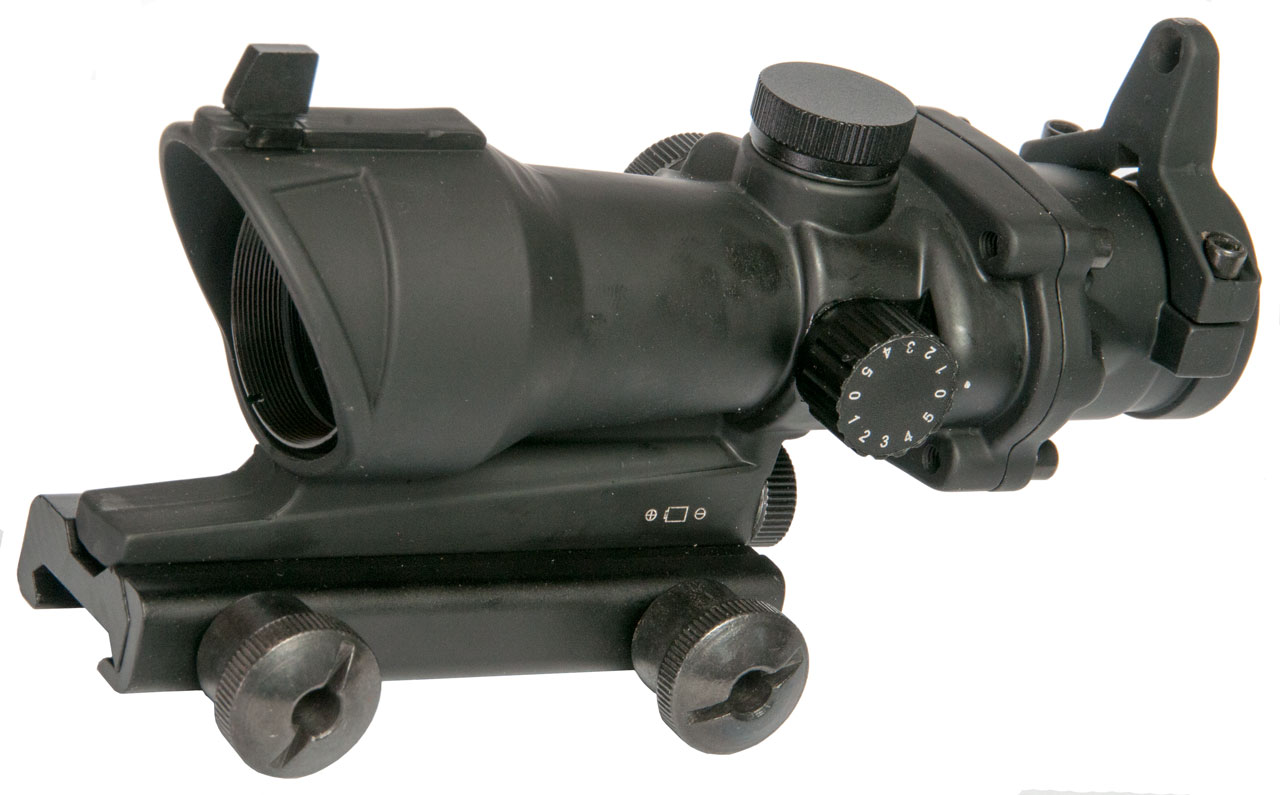

ACOG Style 1x32 Red/Green Dot Sight

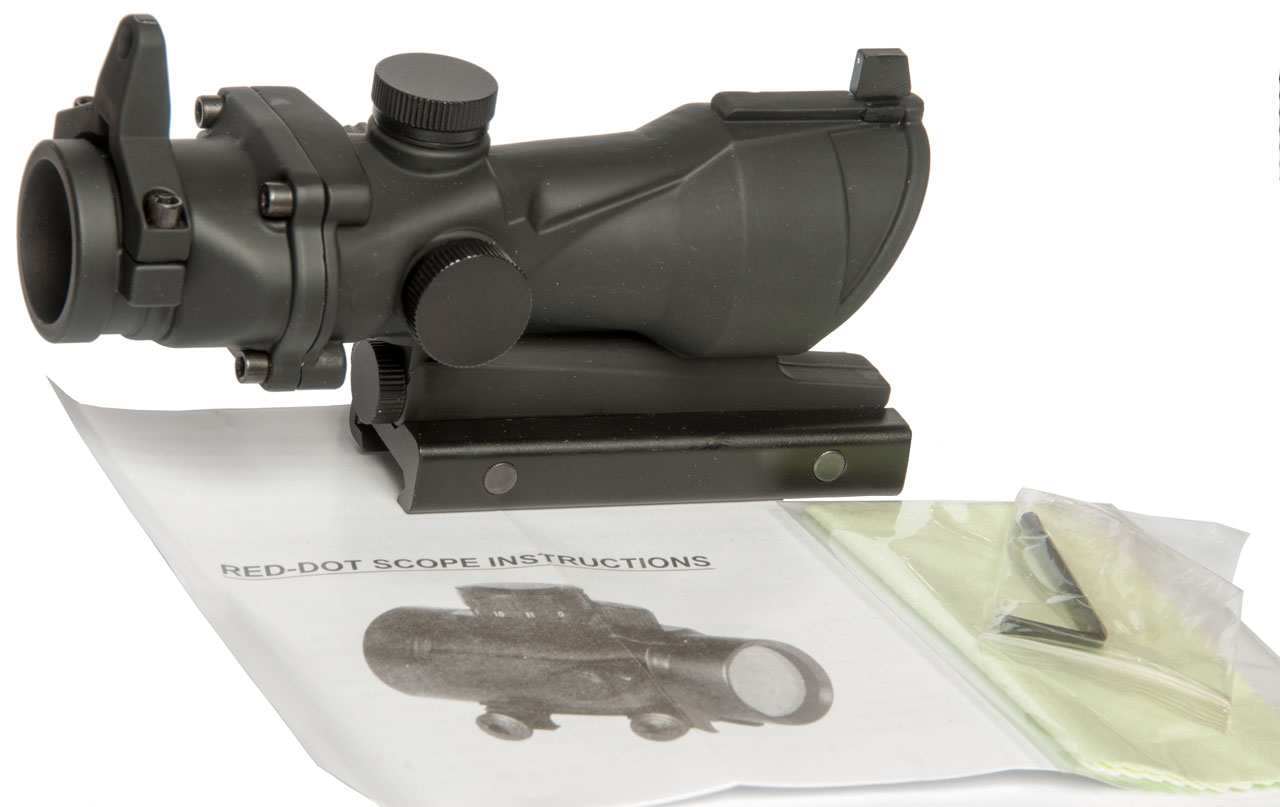

Fig 1 ACOG Style 1x32 Red/Green Dot Sight (See: ACOG)
Fig 2 Generic instructions photo does not match scope.
Cleaning cloth & hex wrench, but to battery!
Fig 3 At the bottom right is a battery symbol and polarity marks, but
not information about what p/n battery to use.

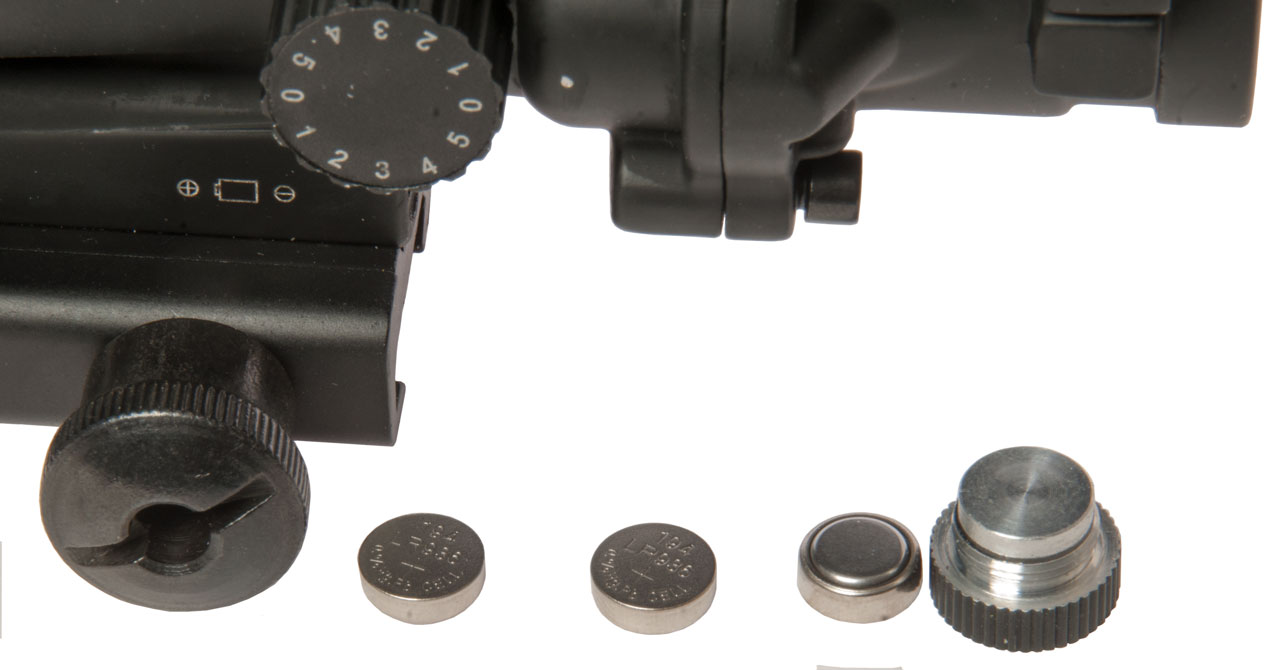

Fig 4 Three each LR936 (194) button cell batteries
(+) to the left as shown in the diagram.
9.5mm dia x 3.41mm hi 1.6 Volts
The problem with the 459MT mount or maybe with the barrel itself is that when side force is applied to the scope the barrel twists. It's very rubbery. Maybe moving the mount all the way to the back or to the front would make for a more stable setup?
Targets
The actual size of a target is not as important is the angle it subtends. 1 Minute Of Angle (MOA) is about 1" at 100 yards.

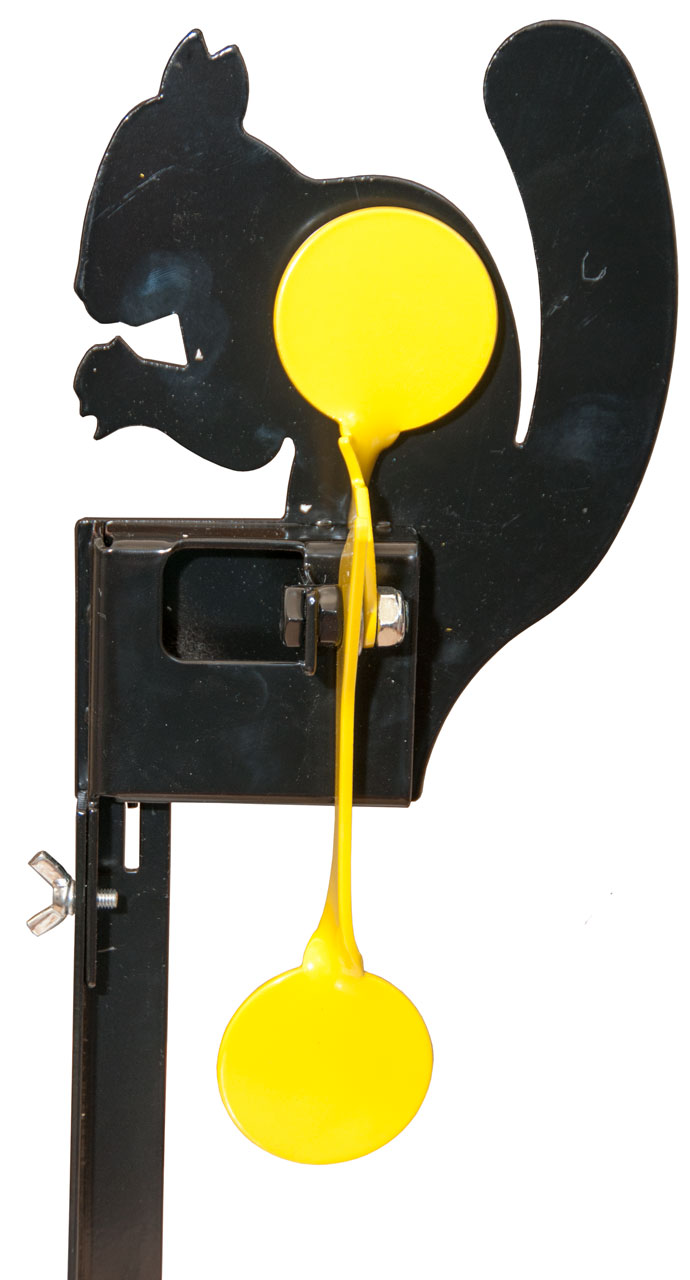

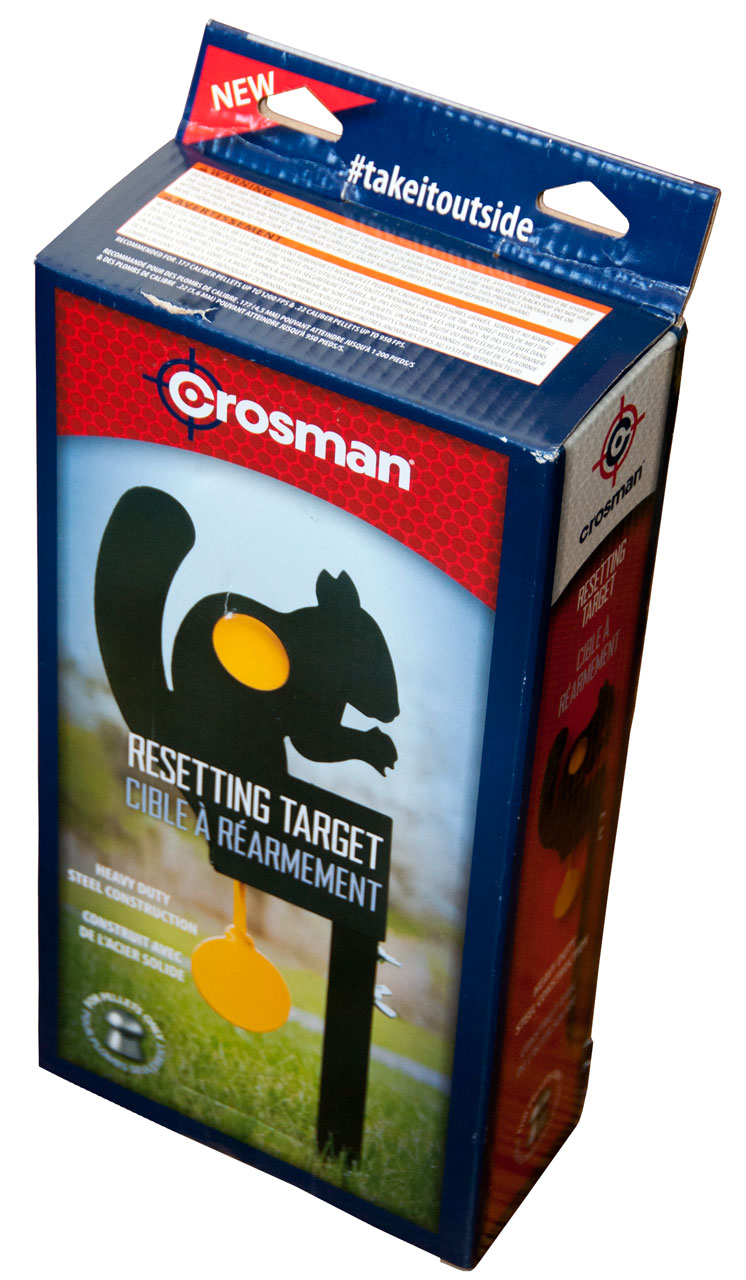

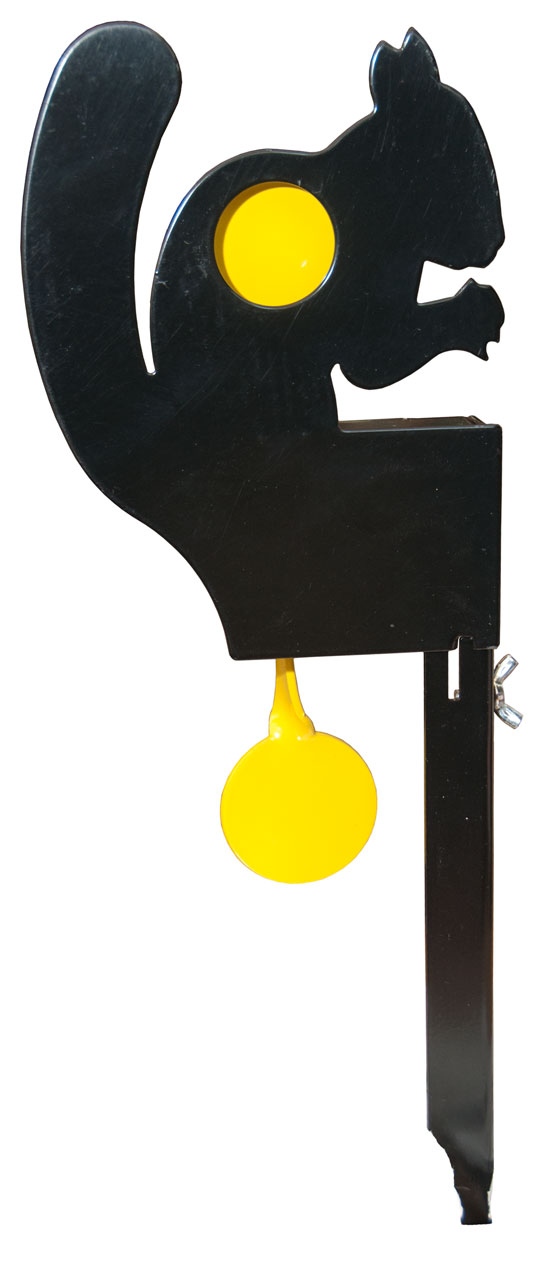

Crosman Squirrel Reset Target (CSRT)
This is a pellet only target (.177 up to 1200 F/s or .22 up tp 950 F/s. When the main target is hit it falls back out of sight, when the lower reset target is hit the main target reappears.
Yellow targets are 1/8" think, black background is 0.1" thick. Height from top to tail to point of stake is 19".
Fig 1

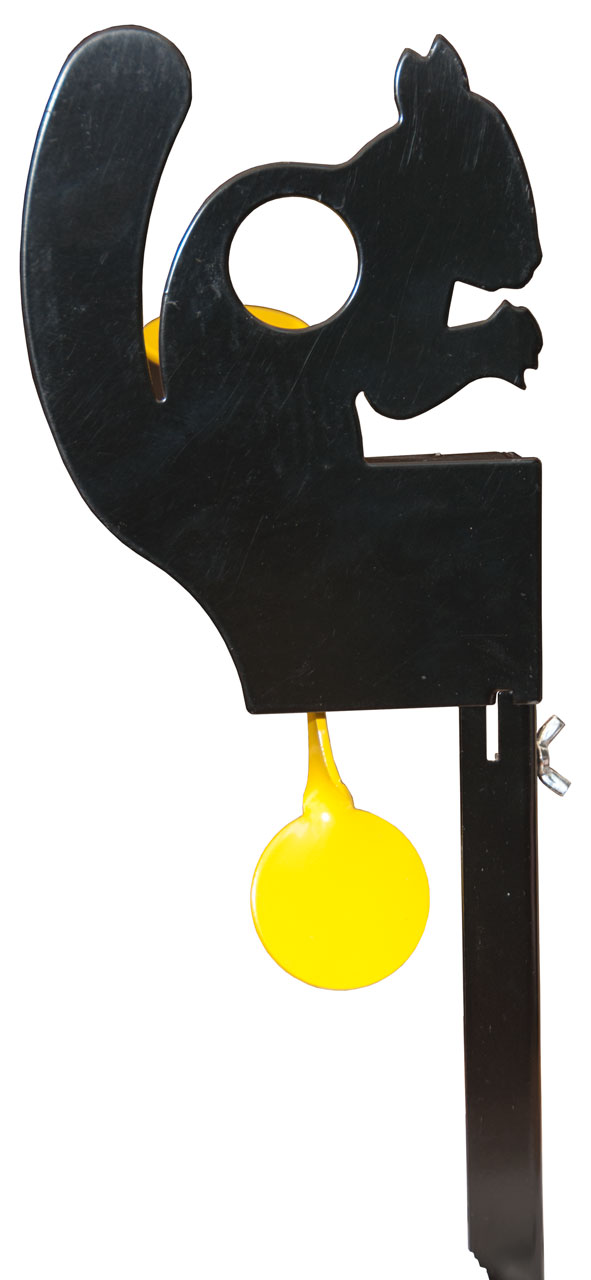

Fig 2 Main target 1.4" dia
Reset target is 2" dia.

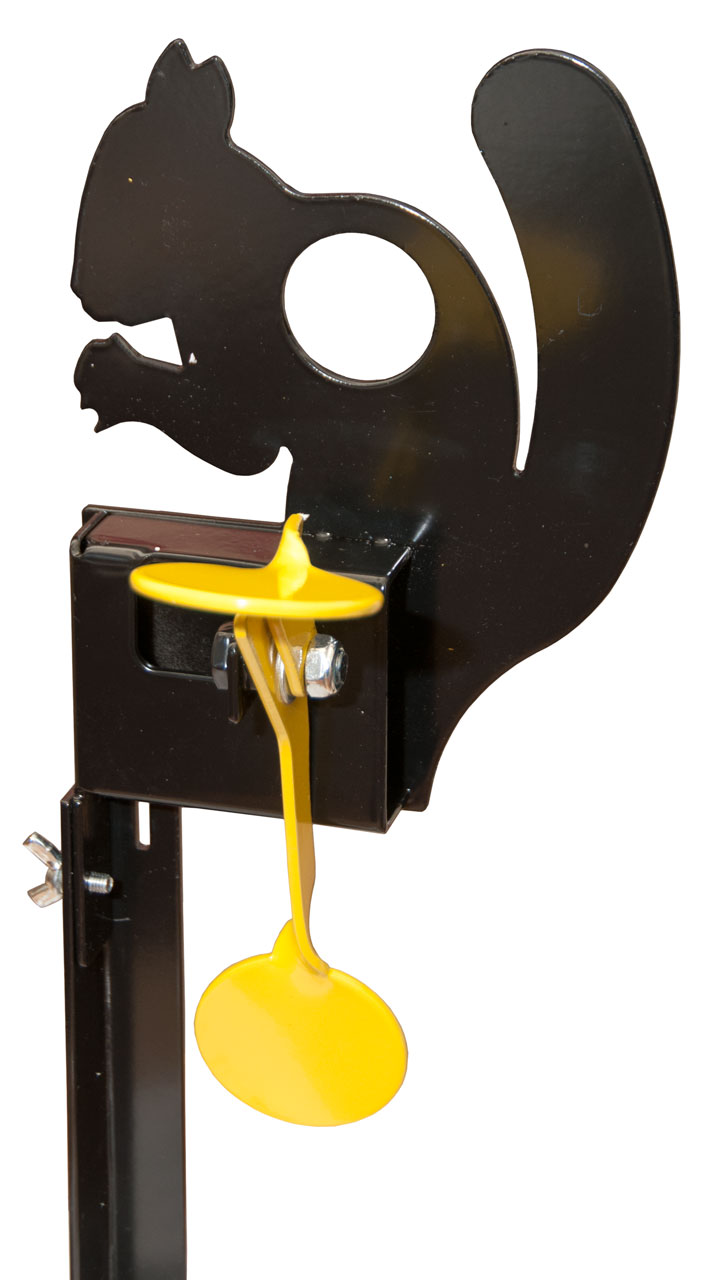

Fig 3
Fig 6
Fig 4
1032060 Target, William E Hawthorne, Daisy Mfg Co, Jul 9, 1912, 273/382 - gong on post rings for bulls-eye.
1036879 Target, Walter Curtis Miner, Aug 27, 1912, 273/388 - Main target and reset target made from same piece of metal betn at 90 degrees. Leaf spring holds in one of two positions.
3212488 Toy Gun, Carl Merl, Hirsch Mahlon E, Marx & Co Louis, Oct 19, 1965, 124/82, 446/193, 42/57, 124/2 - cap rifle that ejects cartridges
2978598 Motor available for toys
Description
Red Ryder model 1938B Fig 1 & 2
This is the classical lever action repeating BB rifle.
The stock is made from a board that's slightly more than
13/16" thick.1938B was made between 1979 and 14987.
Quick Skill (Quick Kill) Model 95B Fig 3
& 4
The stocks on the 95B are very similar to the stocks on a real
rifle. It's intended for training in instinctive
shooting, i.e. without relying on the sights. This can
be done by having someone throw objects into the air.
(The box contains two eye protection glasses). The box
is marked Model 197B, which may be the number for the set
rather than just the rifle? The instruction booklet says
Model 199B B*B Gun. Model numbers 197B and 199B do not
appear in the Daisy Outdoor Products Air Rifle Chronology.95B was made between 1978 and 1998.
Related
40mm
Gernades & Related
Hammerlli M150 Free Pistol
Popguns & Big Bang Carbide Cannon
RPG-7 Rocket Propelled Grenade Launcher
Ruger SP101 .357 Magnum Revolver w/Laser Sight
FN FAL ".308 Match" Rifle
Pop Guns & Water Pistols
Survival Kit with Pocket Pen Gun flare launcher
Semi-automatic Weapons
Hammerlli M150 Free Pistol
Popguns & Big Bang Carbide Cannon
RPG-7 Rocket Propelled Grenade Launcher
Ruger SP101 .357 Magnum Revolver w/Laser Sight
FN FAL ".308 Match" Rifle
Pop Guns & Water Pistols
Survival Kit with Pocket Pen Gun flare launcher
Semi-automatic Weapons
Patents
These are a tiny fraction of the
Daisy Mfg. Co. patents.
390297
Air Gun, Clarence J. Hamilton (Daisy Mfg), Oct 2 1888, - lever
action, but not with loop, single shot
390311 Spring Air-Gun, C.A. Pinckney & C.J. Hamilton (not assigned), Oct 2 1888, - lever action, but not with loop, single shot
427313 Barrel for Spring Air Guns, Clarence J. Hamilton (Daisy Mfg), May 6 1890, -
487169 Repeating air-gun, Elmer Ellsworth Bailey, 1892-11-29, 124/67 124/51.1 -
RE11247 Method of Uniting Barrels of Air Guns, Clarence J. Hamilton (Daisy Mfg), June 21 1892, - was patent 427313
631010 Air Gun, Clarence J. Hamilton (Daisy Mfg), Aug 15 1899, 124/66 - Stock is hinged w/respect to the barrel
660070 Air Rifle, W.J. Burrow (Daisy Mfg), Oct 16 1900, 124/66- single shot hinges to expose breach (Break Action) Break Action models: A (1907 - 1910), 20 (1908-1936), C (1912-1913), 106 (1955-1959)
662054 Repeating Air Rifle, W.J. Burrow (Daisy Mfg), Nov 20 1900, -
670760 Air-Gun, Frederick F. Bennett (Daisy Mfg), Mar 26 1901, 124/83
679670 Repeating Air Rifle, Clarence J. Hamilton (Daisy Mfg), July 30 1901,
683431 Air-Gun, Frederick F. Bennett (Daisy Mfg), Oct 1 1901, 124/67 ; 124/49
765270 Air Gun, W.J. Burrows (Daisy Mfg), July 19 1904, - loop type lever action & repeating operation
830121 Air Gun, G.W. Warren (Daisy Mfg), Sep 4 1906, - hinge between barrel and stock, repeating
843990 Air Gun, Frederick F. Bennett (Daisy Mfg), Feb 12 1907, 124/85 ; 124/49 -
897813 Air-Gun, B.B. Bennett (Daisy Mfg), Sep 1 1908, - hinge between barrel and stock, repeating
903092 Air-Gun, E.C. Hough (Daisy Mfg), Nov 3 1908, - front sight is part of magazine cap
904507 Air-Gun, W.J. Burrows (Daisy Mfg), Nov 24 1908, - magazine loading port next to front sight
984072 Air-Gun, W.J. Burrows (Daisy Mfg), Feb 14 1911, - magazine to barrel transition
1095218 Razor Steopper, C.F. Lefever (Daisy Mfg), May 5 1914, - for sharpening razor blades
Pump Action 25 (1914-today)
1114491 Shot Magazine for Sprint Air Guns, C.F. Lefever (Daisy Mfg),Oct 20 1914, - feed is independent of gun position
1114610 Spring Gun, W.E. Hawthorne (Daisy Mfg), Oct 20 1914, - pump action
1136470 Spring Air Gun, C.F. Lefever (Daisy Mfg), Apr 20 1915, - Compound pump action
1164876 Gas-gun, Daniel Sayler, 1915-12-21, - single shot explosive gas mixture and spark ignition
1180855 Spring air-gun, Charles F Lefever, Daisy Mfg Co, Apr 25, 1916, 124/66, 124/37, 124/40 - sheet metal trigger
1180856 See Water Guns
1180857 "
1180858 "
1180859 Air-gun barrel and method of forming the same, Charles F Lefever, Daisy Mfg Co, Apr 25, 1916, 124/83, 72/362, 42/76.1, 101/415.1, 138/169, 228/144, 206/37, 228/171 -
1259463 Air-gun, Jesse De Fir, 1918-03-12, -
1303336 Gun, C.F. Lefever (Daisy Mfg), May 13 1919, - looks like the WWI Springfield 1903 military bolt action rifle
1358959 Lever Arm for Guns C.F. Lefever (Daisy Mfg), Nov 16 1920, - how to make loop type lever
1381127 Magazine for Guns, C.F. Lefever (Daisy Mfg), Jun 14 1921, - for compound pump action
1383111 Gas-gun, George U Hall, James B Truitt, 1921-06-28, - repeating gun, stack of bullets, complex pump spring-air gas system - cited by 15 patents,
1390569 Air Gun, C.F. Lefever (Daisy Mfg), Sep 13 1921, - open lever action w/ tilting breach
1454947 Amusement device, Archie H Bechtol, Walter A Tratsch, 1923-05-15, - coin operated 6 shot revolver toy for arcade use
1466131 Popgun, C.F. Lefever (Daisy Mfg), Aug 28 1923, - cork in end of barrel type
1598204 Popgun, Charles F Lefever, Daisy Mfg Co, Aug 31, 1926, -
1662067 Liquid Gun, Charles F Lefever, Daisy Mfg Co, Mar 13, 1928, 222/79, 222/321.6, 222/381 - squirt (water) pistol
1779892 Popgun, Roe Ernest S, King Mfg Company (sold to Daisy), Oct 28, 1930, -
1793625 Shooting and Magazine Barrel for Air Rifles, C.F. Lefever (Daisy Mfg), Feb 24 1931, -
1825190 Combined Shooting and Magazine Barrel for Spring Air Guns, C.F. Lefever (Daisy Mfg), Sep 29 1931 -
1830291 Popgun, Ernest S Roe, King Mfg Company, (sold to Daisy), Nov 3, 1931, -
1856285 Gun, C.F. Lefever (Daisy Mfg), May 3 1932, - pump action looks like shotgun
1886561 Gun, C.F. Lefever (Daisy Mfg), Nov 8 1932, - pump action
1886562 Target, C.F. Lefever (Daisy Mfg), Nov 8 1932, - bell rings only for bullseye
1978799 Gun, C.F. Lefever (Daisy Mfg), Oct 30 1934, - shrouded peep sights lever action
2132173 Air gun, Charles F Lefever, Daisy Manufacturing Co, 1938-10-04, - single shot spring air BB gun - Daisy No. 118 Targette pistol & No. 320 Table Target Pistol Set
2213318 Toy Gun, C.F. Lefever (Daisy Mfg), Sep 3 1940, - fires large soft balls
2196732 Double Barrel Spring Air Gun, C.F. Lefever (Daisy Mfg), Apr 9 1940, - looks like side-by-side double barrel shotgun & is double barrel BB gun
2204372 Piston for Air Guns, J.J. McHenry, Jun 11 1940, - allows air input without drilling hole in tube which is a weak spot, instead there's a valve on back of piston.
2215513 Adjustable Gun Sight, C.F. Lefever (Daisy Mfg), Sep 24 1940, - screw adjustment
2528495 Repeating Air Gun, E.E. Carter (Daisy Mfg), Nov 7 1950, - coil spring allows multiple shots just by pulling trigger
2604088 Air Gun, W.S. Wells(Daisy Mfg), July 22 1952, - looks like a Benjamin .177 pellet gun
2729208 Popgun, Lee B Gaeke, Daisy Mfg Co, Jan 3, 1956, -
2758586 Air gun, Ciro R Scalingi, Daisy Mfg Co, Aug 14, 1956, 124/67 - Model 107 "Trombone" cocking
2811150 Compressed gas gun, Marocchi Stefano, 1957-10-29, - semi-auto operation, just trigger pull between shots,
2837865 Popgun construction, William S Wells, Daisy Mfg Co, Jun 10, 1958, - slide switch safety - OT No. M417157 - Model 1105
3788298 Compressed gas gun with trigger operated hammer release latching structure, J Hale, Daisy, 1974-01-29, - paint ball pistol with CO2 in grip, patent to avoid Crosman patent.
390311 Spring Air-Gun, C.A. Pinckney & C.J. Hamilton (not assigned), Oct 2 1888, - lever action, but not with loop, single shot
427313 Barrel for Spring Air Guns, Clarence J. Hamilton (Daisy Mfg), May 6 1890, -
487169 Repeating air-gun, Elmer Ellsworth Bailey, 1892-11-29, 124/67 124/51.1 -
RE11247 Method of Uniting Barrels of Air Guns, Clarence J. Hamilton (Daisy Mfg), June 21 1892, - was patent 427313
631010 Air Gun, Clarence J. Hamilton (Daisy Mfg), Aug 15 1899, 124/66 - Stock is hinged w/respect to the barrel
660070 Air Rifle, W.J. Burrow (Daisy Mfg), Oct 16 1900, 124/66- single shot hinges to expose breach (Break Action) Break Action models: A (1907 - 1910), 20 (1908-1936), C (1912-1913), 106 (1955-1959)
662054 Repeating Air Rifle, W.J. Burrow (Daisy Mfg), Nov 20 1900, -
670760 Air-Gun, Frederick F. Bennett (Daisy Mfg), Mar 26 1901, 124/83
679670 Repeating Air Rifle, Clarence J. Hamilton (Daisy Mfg), July 30 1901,
683431 Air-Gun, Frederick F. Bennett (Daisy Mfg), Oct 1 1901, 124/67 ; 124/49
765270 Air Gun, W.J. Burrows (Daisy Mfg), July 19 1904, - loop type lever action & repeating operation
830121 Air Gun, G.W. Warren (Daisy Mfg), Sep 4 1906, - hinge between barrel and stock, repeating
843990 Air Gun, Frederick F. Bennett (Daisy Mfg), Feb 12 1907, 124/85 ; 124/49 -
897813 Air-Gun, B.B. Bennett (Daisy Mfg), Sep 1 1908, - hinge between barrel and stock, repeating
903092 Air-Gun, E.C. Hough (Daisy Mfg), Nov 3 1908, - front sight is part of magazine cap
904507 Air-Gun, W.J. Burrows (Daisy Mfg), Nov 24 1908, - magazine loading port next to front sight
984072 Air-Gun, W.J. Burrows (Daisy Mfg), Feb 14 1911, - magazine to barrel transition
1095218 Razor Steopper, C.F. Lefever (Daisy Mfg), May 5 1914, - for sharpening razor blades
Pump Action 25 (1914-today)
1097244
Spring Gun, C.F. Lefever (Daisy Mfg), May 19 1914, -
Pump Action (Model 25) |
Model 25 Fig 1 |
Fig 2 |
Model 25 Fig 3 Shipped with stock off, not using take-down screw. |
Fig 4 |
Fig 5 |
Fig 6 |
Fig 7 Cocking |

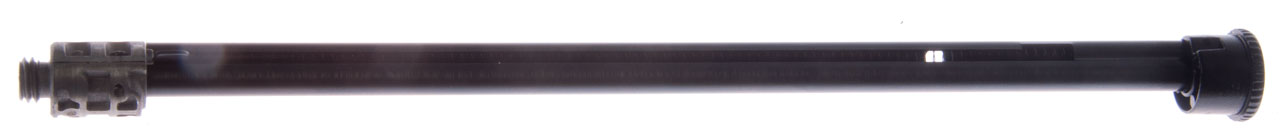

Fig 8 Barrel &
BB Tube, muzzle at right |
Model 25 Fig 10 - very old exampleFixed front sight, so 1916 or later.  |
| Fig 11 Label w/Patent Numbers Daisy No 25 Daisy Mfg. Co. Plymouth, Mich. U.S.A. (so pre 1958, "Rodgers, Arkansas" for post 1958). 1097244 Spring Gun, C.F. Lefever (Daisy Mfg), May 19 1914, - First Pump Action patent (Model 25) 1114491 Shot Magazine for Spring Air Guns, C.F. Lefever (Daisy Mfg),Oct 20 1914, - feed is independent of gun position 1136470 Spring Air Gun, C.F. Lefever (Daisy Mfg), Apr 20 1915, - Compound pump action, one screw (H) take down 1220649 Magazine-barrel for air-guns, Charles F Lefever, Daisy Mfg Co, Mar 27, 1917, 124/52 - see Fig 8 above 1573383 Air gun, Charles F Lefever, Daisy Mfg Co, Feb 16, 1926, 124/49 - spring flap to allow loading BB & not spill them  |
| Fig 12 Top to bottom: Daisy No. 120 break action w/scope Daisy No. 25 (new) Daisy No. 25 (old)  |
| Fig 13 Remove 1 thumb screw (1136470
"H") and break down into two easy to ship/store parts Notice the trigger spring is sticking out on the back side of the trigger. Maybe explains why the trigger is all the way back? The piston assembly and barrel/magazine are missing.  Reinforcing rib on pump linkage, so after 1915 Rounded rear on trigger guard, s0 1930 or newer Rear of receiver over stock tang, so 1930 or newer Maybe missing pump guide rod is because it was a claw type, so 1914 to 1931 Cone take down screw, so 1927 or later Pistol grip stock, so 1930 - 1953 |
1114491 Shot Magazine for Sprint Air Guns, C.F. Lefever (Daisy Mfg),Oct 20 1914, - feed is independent of gun position
1114610 Spring Gun, W.E. Hawthorne (Daisy Mfg), Oct 20 1914, - pump action
1136470 Spring Air Gun, C.F. Lefever (Daisy Mfg), Apr 20 1915, - Compound pump action
1164876 Gas-gun, Daniel Sayler, 1915-12-21, - single shot explosive gas mixture and spark ignition
1180855 Spring air-gun, Charles F Lefever, Daisy Mfg Co, Apr 25, 1916, 124/66, 124/37, 124/40 - sheet metal trigger
1180856 See Water Guns
1180857 "
1180858 "
1180859 Air-gun barrel and method of forming the same, Charles F Lefever, Daisy Mfg Co, Apr 25, 1916, 124/83, 72/362, 42/76.1, 101/415.1, 138/169, 228/144, 206/37, 228/171 -
1259463 Air-gun, Jesse De Fir, 1918-03-12, -
1303336 Gun, C.F. Lefever (Daisy Mfg), May 13 1919, - looks like the WWI Springfield 1903 military bolt action rifle
1358959 Lever Arm for Guns C.F. Lefever (Daisy Mfg), Nov 16 1920, - how to make loop type lever
1381127 Magazine for Guns, C.F. Lefever (Daisy Mfg), Jun 14 1921, - for compound pump action
1383111 Gas-gun, George U Hall, James B Truitt, 1921-06-28, - repeating gun, stack of bullets, complex pump spring-air gas system - cited by 15 patents,
1390569 Air Gun, C.F. Lefever (Daisy Mfg), Sep 13 1921, - open lever action w/ tilting breach
1454947 Amusement device, Archie H Bechtol, Walter A Tratsch, 1923-05-15, - coin operated 6 shot revolver toy for arcade use
1466131 Popgun, C.F. Lefever (Daisy Mfg), Aug 28 1923, - cork in end of barrel type

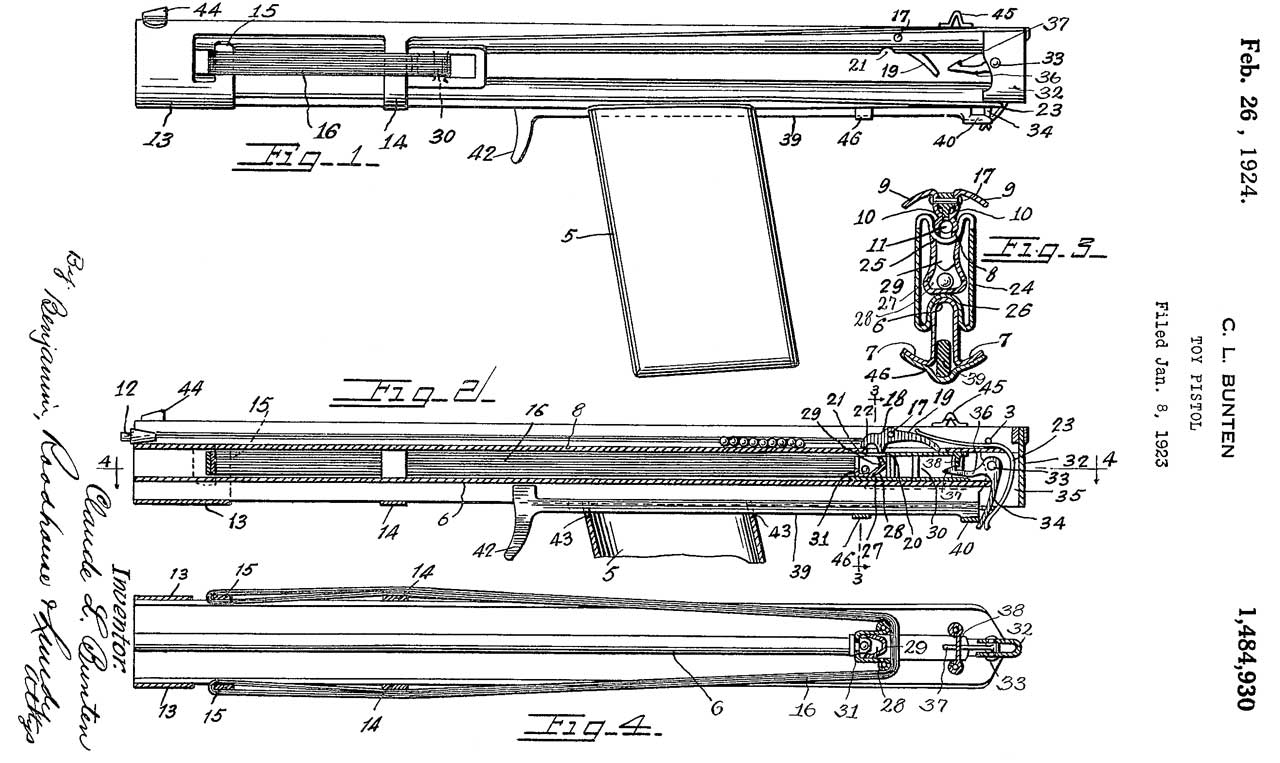

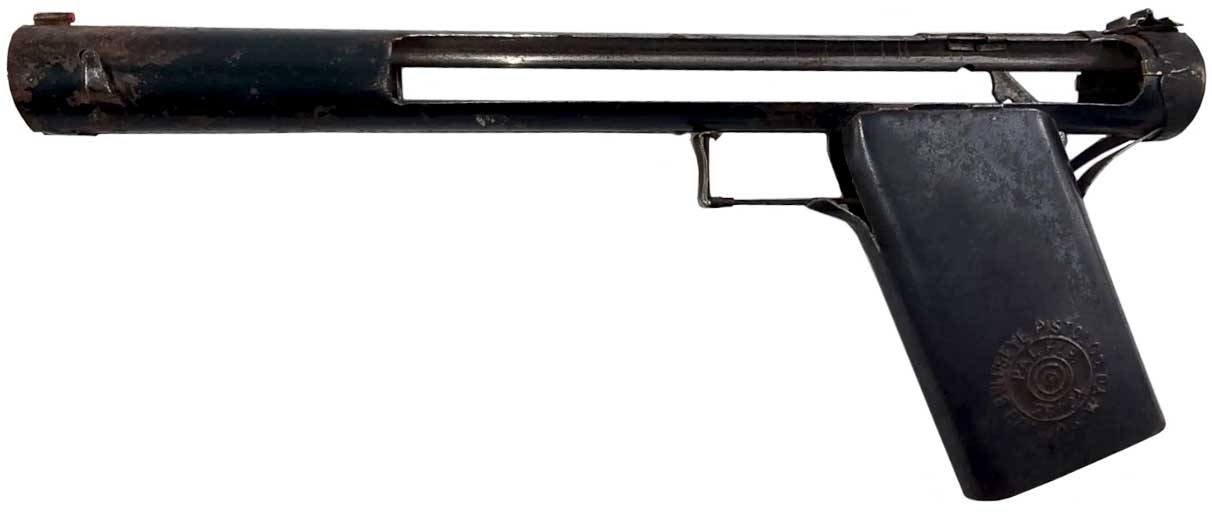

1598204 Popgun, Charles F Lefever, Daisy Mfg Co, Aug 31, 1926, -
1662067 Liquid Gun, Charles F Lefever, Daisy Mfg Co, Mar 13, 1928, 222/79, 222/321.6, 222/381 - squirt (water) pistol
1779892 Popgun, Roe Ernest S, King Mfg Company (sold to Daisy), Oct 28, 1930, -
1793625 Shooting and Magazine Barrel for Air Rifles, C.F. Lefever (Daisy Mfg), Feb 24 1931, -
1825190 Combined Shooting and Magazine Barrel for Spring Air Guns, C.F. Lefever (Daisy Mfg), Sep 29 1931 -
1830291 Popgun, Ernest S Roe, King Mfg Company, (sold to Daisy), Nov 3, 1931, -
1856285 Gun, C.F. Lefever (Daisy Mfg), May 3 1932, - pump action looks like shotgun
1886561 Gun, C.F. Lefever (Daisy Mfg), Nov 8 1932, - pump action
1886562 Target, C.F. Lefever (Daisy Mfg), Nov 8 1932, - bell rings only for bullseye
1978799 Gun, C.F. Lefever (Daisy Mfg), Oct 30 1934, - shrouded peep sights lever action
2132173 Air gun, Charles F Lefever, Daisy Manufacturing Co, 1938-10-04, - single shot spring air BB gun - Daisy No. 118 Targette pistol & No. 320 Table Target Pistol Set
2213318 Toy Gun, C.F. Lefever (Daisy Mfg), Sep 3 1940, - fires large soft balls
2196732 Double Barrel Spring Air Gun, C.F. Lefever (Daisy Mfg), Apr 9 1940, - looks like side-by-side double barrel shotgun & is double barrel BB gun
2204372 Piston for Air Guns, J.J. McHenry, Jun 11 1940, - allows air input without drilling hole in tube which is a weak spot, instead there's a valve on back of piston.
2215513 Adjustable Gun Sight, C.F. Lefever (Daisy Mfg), Sep 24 1940, - screw adjustment
2528495 Repeating Air Gun, E.E. Carter (Daisy Mfg), Nov 7 1950, - coil spring allows multiple shots just by pulling trigger
2604088 Air Gun, W.S. Wells(Daisy Mfg), July 22 1952, - looks like a Benjamin .177 pellet gun
2729208 Popgun, Lee B Gaeke, Daisy Mfg Co, Jan 3, 1956, -
2758586 Air gun, Ciro R Scalingi, Daisy Mfg Co, Aug 14, 1956, 124/67 - Model 107 "Trombone" cocking
2811150 Compressed gas gun, Marocchi Stefano, 1957-10-29, - semi-auto operation, just trigger pull between shots,

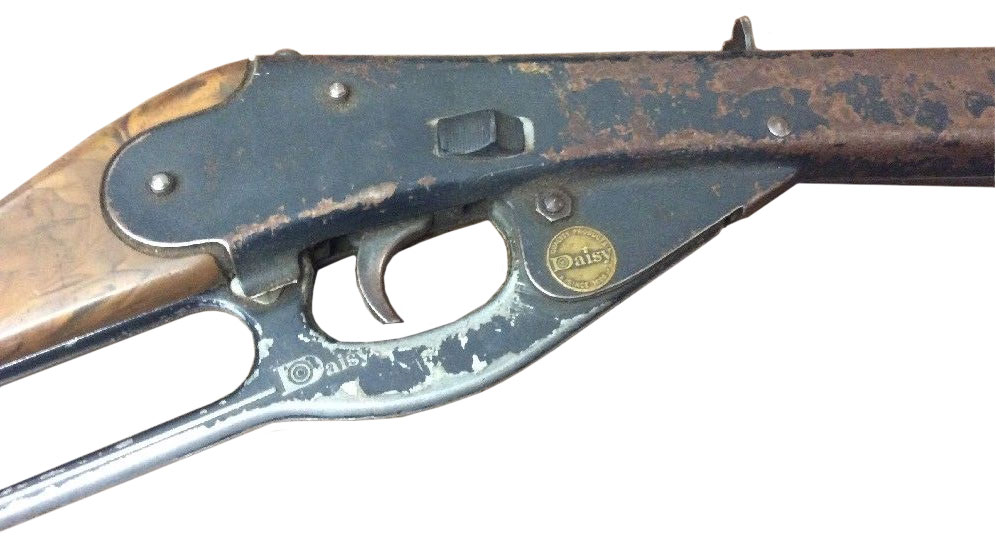

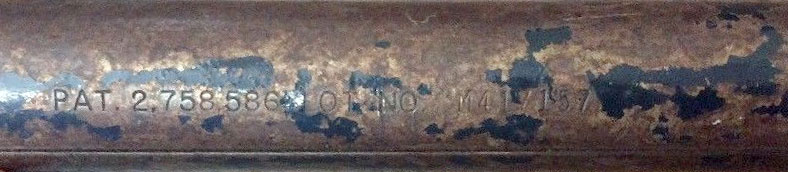

2837865
Popgun construction,
William
S Wells, Daisy
Mfg Co, Jun 10, 1958, - slide
switch safety - OT No. M417157 - Model 1105
|
2837865 Popgun construction, William S Wells, Daisy Mfg Co, Jun 10, 1958, - slide switch safety - OT No. M417157 - Model 1105
3788298 Compressed gas gun with trigger operated hammer release latching structure, J Hale, Daisy, 1974-01-29, - paint ball pistol with CO2 in grip, patent to avoid Crosman patent.
The Nelson Paint Company made the 0.68" diameter paint balls for marking trees and cattle.
2743959 Paint marking apparatus, Charles J Nelson, Evan S Nelson, 1956-05-01, - has the look and feel of a pump type oil can.
Cites:The Crosman 707 CO2 pellet pistol was patented and later used as the basis of their paint ball marker pistol custom made (Nelspot 007) for Nelson Paint.
1900668 Liquid gun, Harold A Roselund, De Vilbiss, 1933-03-07, - for oil, not paint.
Later Nelson Paint made their own "Nelspot 007 Challenger"
8430086 Non-lethal pistol, Dennis J. Tippmann, Jr., Jeffrey P. Douglas, Kyle D. Smith, Bryce A. Carrico, Tippmann Sports, 2013-04-30, - TiPX marker pistol.
Related
Links
Pyramydair Gun Mall: Airgun Academy: Daisy 25 dating information – Part 1, Daisy 25 dating information – Part 2Back to Brooke's Products for Sale, PRC68, Alphabetical Index of web pages, Home web page
Airguns of Arizona -
Beemans.net: New Evidence on the Lewis and Clark Air Rifle – an “Assault Rifle” of 1803 - used on the Lewis & Clark expedition.
YouTube: Forgotten Weapons - Girardoni Air Gun (original 1780 example) -
There are PCP (Pre-Charged Pneumatic) air guns (Wiki)
FX Outdoors - YouTube:These Air Rifles are as Powerful As A 22, Will it Replace Rimfire?, 17:54 - mostly about the Panthera. Impact M3 mentioned at end.
page created 5 July 2010.
