H-250/U Handset & VCEB

Brooke Clarke, N6GCE 2001 - 2020


H-250

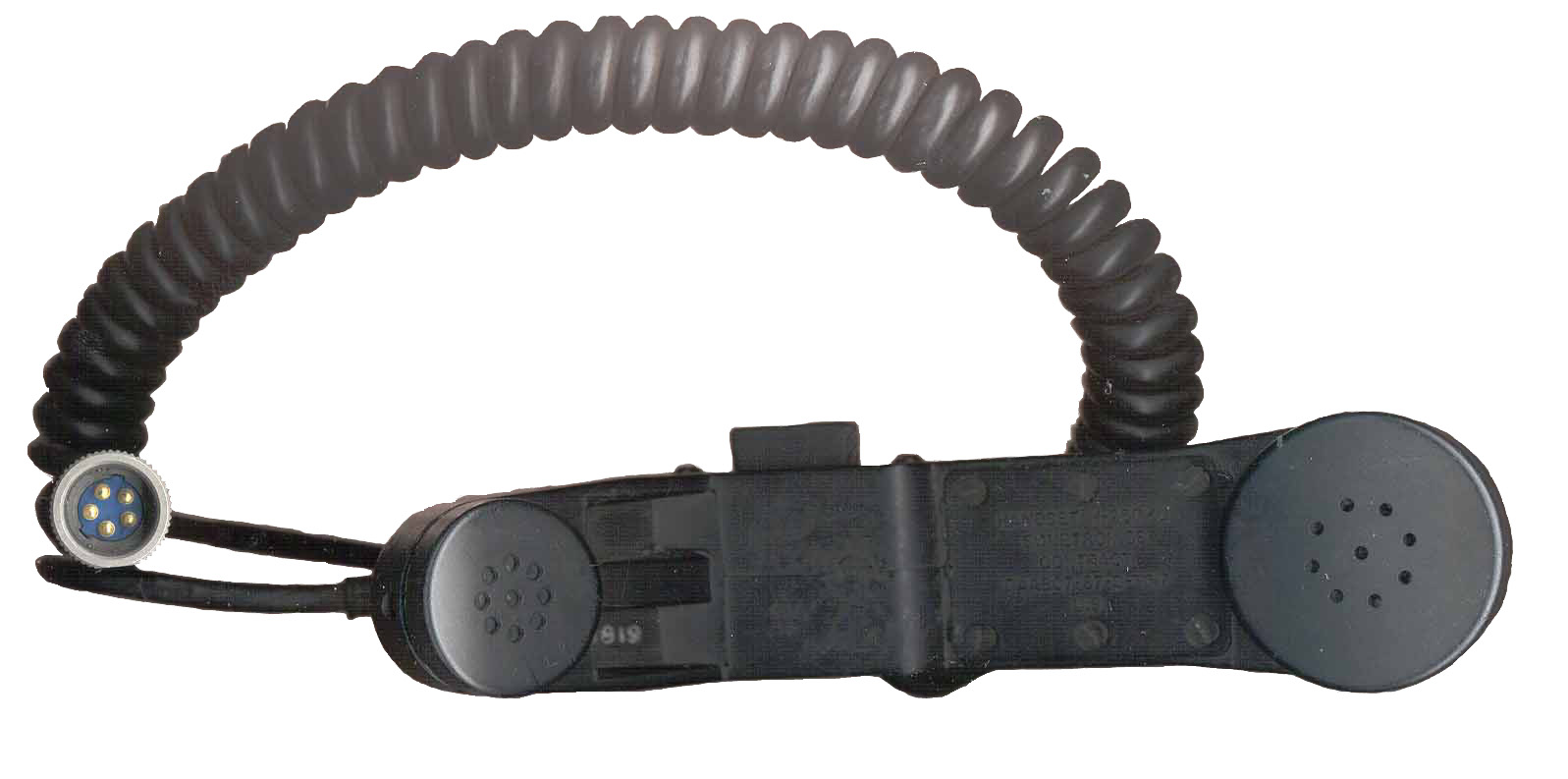

H-250 handset

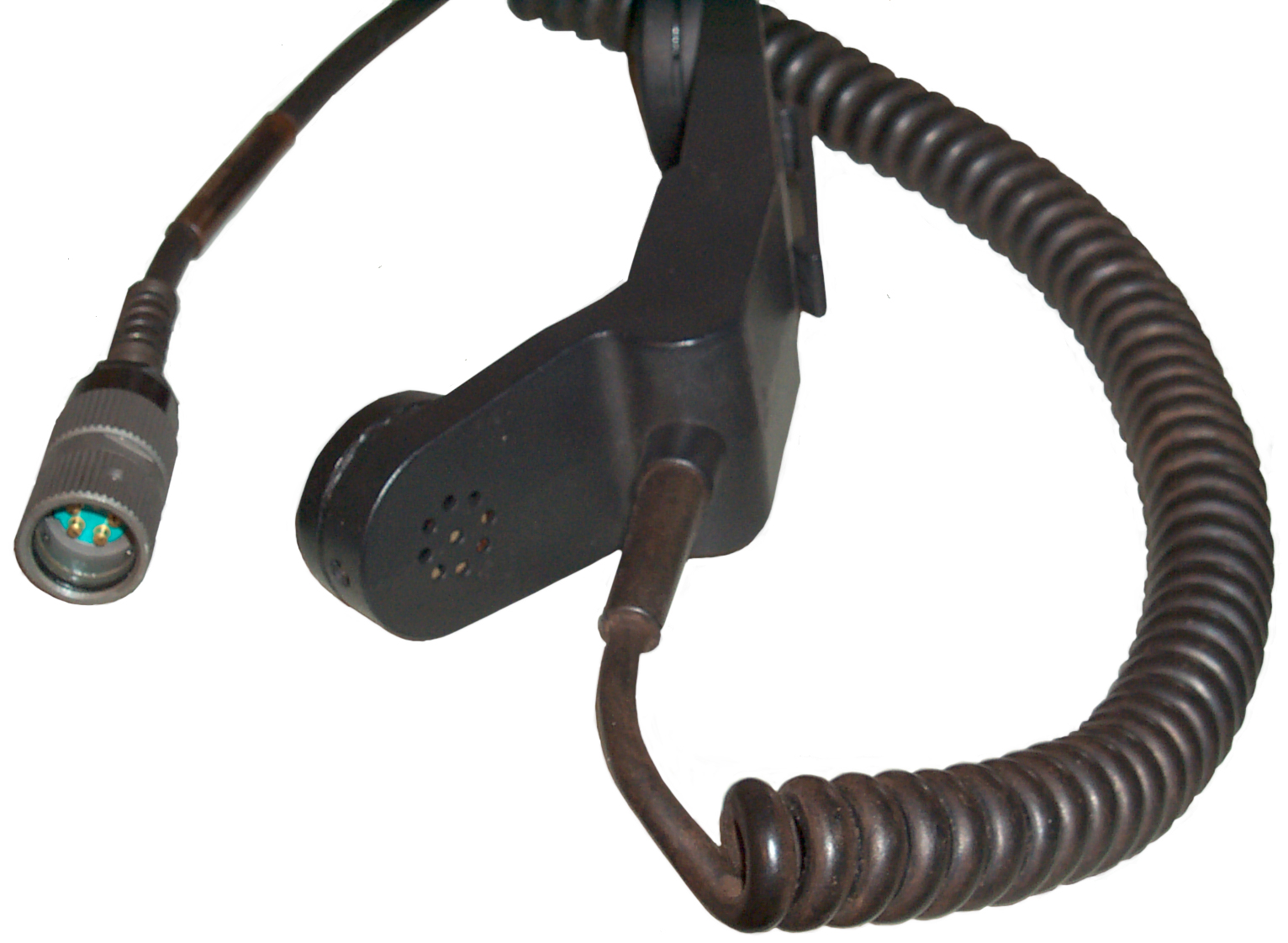

H-250 Noise
                  Canceling
H-250 Handset
                  showing Noice Cancelling ports

Noise Canceling mikes on back and end

Volume Control Ear Bud (VCEB)

H-250/VCEB
H-250/VCEB H-250/VCEB
note:  the H-250 needs to be clipped in a location relativity
close the the ear where the ear bud will be used since the
ear bud cord is not that long.



General Information

This dynamic noise canceling mike type handset is the standard for many PRC-nnn series radios. The noise canceling is accomplished by two design features:

IMPORTANT - Many people don't realize how good the noise canceling feature is.  They hold the mike 1/2 to 1-1/2" from their mouth, then complain that the handset has low output or that the radio has weak modulation.  That's because of the noise canceling.

YOU MUST HAVE THE MIKE TOUCHING YOUR LIP!

This handset was designed for use under combat conditions which includes explosions, heavy trucks or tanks driving nearby, etc.

Label on Handset:

Handset H-250/U
Sonetronics
Contract
DAAB07-87-C-T017
U.S.

Intended Use

Handset H-250()/U utilizes a 1000 Ohm earphone element, a 150 ohm dynamic noise canceling microphone, a push-to-talk switch and a six foot (extended)  retractile cord terminating in a 5 pin audio connector (U-182/U).  It is intended for uee with military man-pack radio equipment such as the AN/PRC-70 and AN/PRC-77. Handset H-250()/U can be uesd in place of Handset H-189/GR.  The H-250(   )/U handset assembly is a disposable item.

Look-alikes

H-250 Look-alike
                  Handsets
This is a photo of 5 Handsets, not all of which are form fit and function the same as the H-250.
This is important since the non H-250 units will not work on radios that expect the H-250.
So, be sure to read the marking and be sure the handset you are using is really one of the H-250 type if that's what your radio needs.

Left to Right
H-250/U Sonetronics
H-350/U Electro-Voice Inc.
H-207 A/VRC Sonetronics
H-189/GR (broken clip)
98230, ON273827, Sonetronics (See: KY-68 secure telephone)
H-350/U Electro-Voice Inc.
M-80/U sonetronics

NSNs

H-250/U

5965-00-043-3463
 5965-01-247-4723

H-250/VCEB

5965-01-549-6390

Maintenance Instructions

This is a U-229 Audio connection.

Ohmmeter Readings

Speaker

Using an HP 204 Audio Oscillator and the TS-585 Audio Level Meter the AC impedance of the H-250 can be seen to be about 1,500 Ohms.
It is common for the AC impedance to be higher than the DC resistance because of the inductance of the coil.  Some of the early headphones used with crystal radios had an AC impedance up to 10,000 Ohms but had much lower DC resistance.

A 0 dBm tone at 1 kHz into the earpiece is loud when the ear piece is held to the ear and can still be heard with the H-250 on the bench.
A 4 kHz tone is loud with the H-250 on the bench.

Mike

Agilent 4395A spectrum analyzer 1 Hz to 5 kHz, PTT pressed, whistle into microphone.  On the most sensitive range (-10 dB) of the TS-585C/U there is no meter movement with a loud whistle.  A Fluke 87 DMM set to ACV will show about 1.2 mV with PTT pressed in a quiet environment.  With a loud whistle the reading might get to 2.5 mVAC.

This mike will not drive a PC audio line level input.  It needs amplification first.

Push To Talk Switch

H-250 PTT Switch

I have heard that there's a magnet inside the switch proper.
Photo shows the switch separated from the handset.





H-250/VCEB Volume Control Ear Bud

This is a version of the H-250 that adds a volume control and 2.5mm jack for an earpiece, like the one used with the Thales Speaker Mike.

The volume control effects both the handset and ear bud.

H-350 Handset

The Regency net radios use the H-356 which is slightly different than the H-250.  In the stock H-250 the mike, speaker and PTT share a common ground on pin A.

In the H-350 the Mike ground is separated from pin A and connected to pin E.

History

The H-138 was issued with the early PRC-25 radios.  It was the first of the noise cancelling microphones, but some voice cancelling was experienced.  It would be interesting to know if that was real or just the result of the operator's not being trained to use the handset with their lips touching the mike?  It was replaced with the H-189 that is noise canceling and repairable.  The H-250 has the mike element and speaker sealed so they are not replaceable.

Links

Sonetronics - H-250 Handset
