Background


The Wiki page has this description:

The Campbell–Stokes recorder (sometimes called a Stokes sphere) is a kind of sunshine recorder. It was invented by John Francis Campbell in 1853 and modified in 1879 by Sir George Gabriel Stokes. The original design by Campbell consisted of a glass sphere set into a wooden bowl with the sun burning a trace on the bowl. Stokes's refinement was to make the housing out of metal and to have a card holder set behind the sphere.

The unit is designed to record the hours of bright sunshine which will burn a hole through the card.

This basic unit is still in use today with very little change. It is widely used outside the United States, where the Marvin sunshine recorder is generally the instrument used by the National Weather Service.

These are still being sold by Casella csa along with the cards.

The heart of the device is a 100 mm (4") diameter glass sphere that's of fine optical quality that acts as a lens to focus the energy from the Sun onto a replaceable card marked with hour lines.

The Campbell Stokes sunshine recorder is the cover photo for the book The Weather Observer's Handbook / Burt, Stephen Cambridge University Press

As received the latitude adjustment was set for 28.5 deg North.  Not sure where, maybe a little south of San Antonio, TX.

The Eppley (Model 2)  Precision Pyranometer, Model PSP covers 285 to 2800 nanometers and is a similar instrument.

Still made by Fairmount Weather Systems in the UK and they have the replacement cards for three seasons.

Photos


Fig 1 Left Front
Campbell
                  Stokes Sunshine Recorder

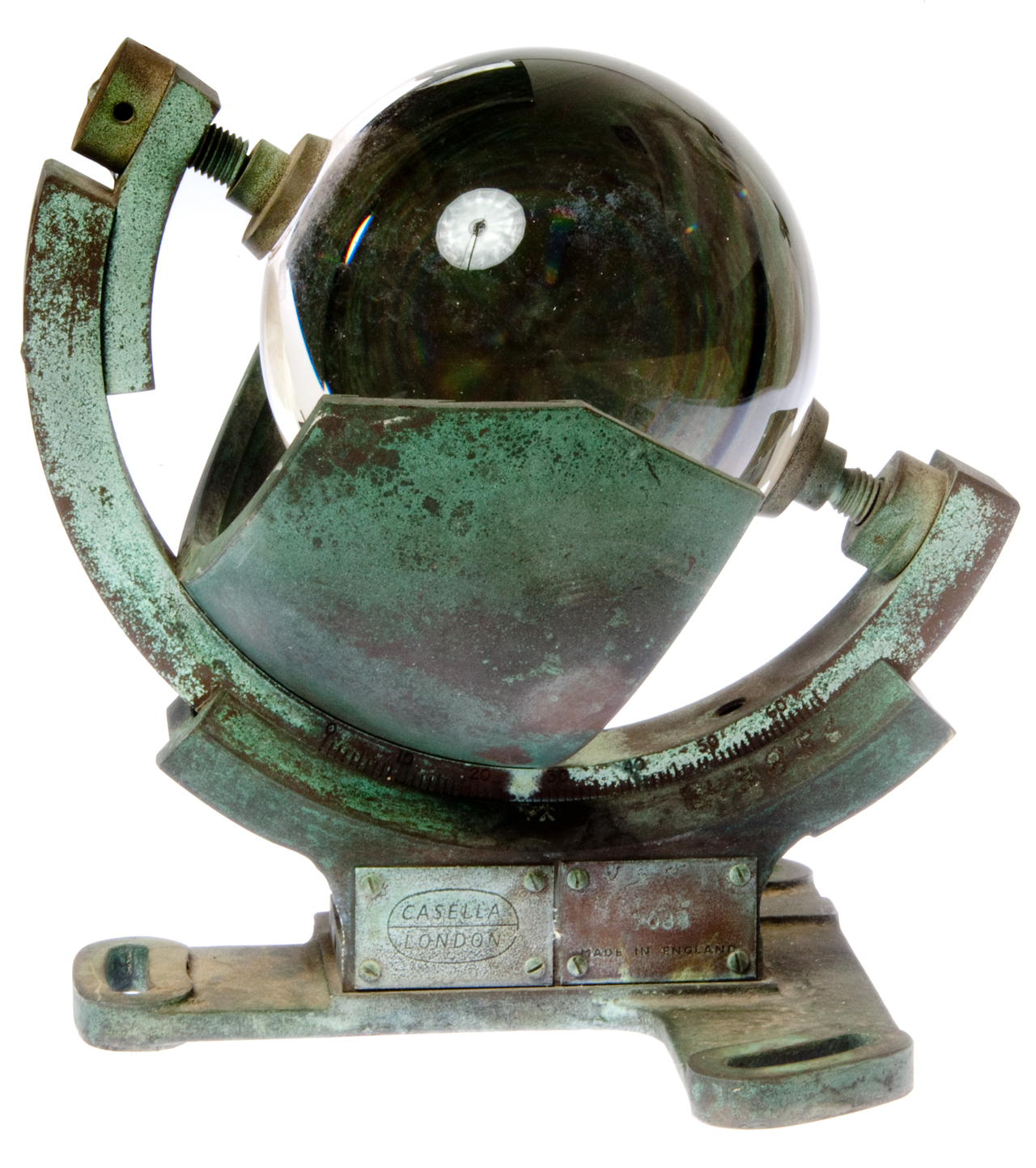

Fig 2 Left Side (came with lat = 28.5 deg N.)
Campbell
                  Stokes Sunshine Recorder

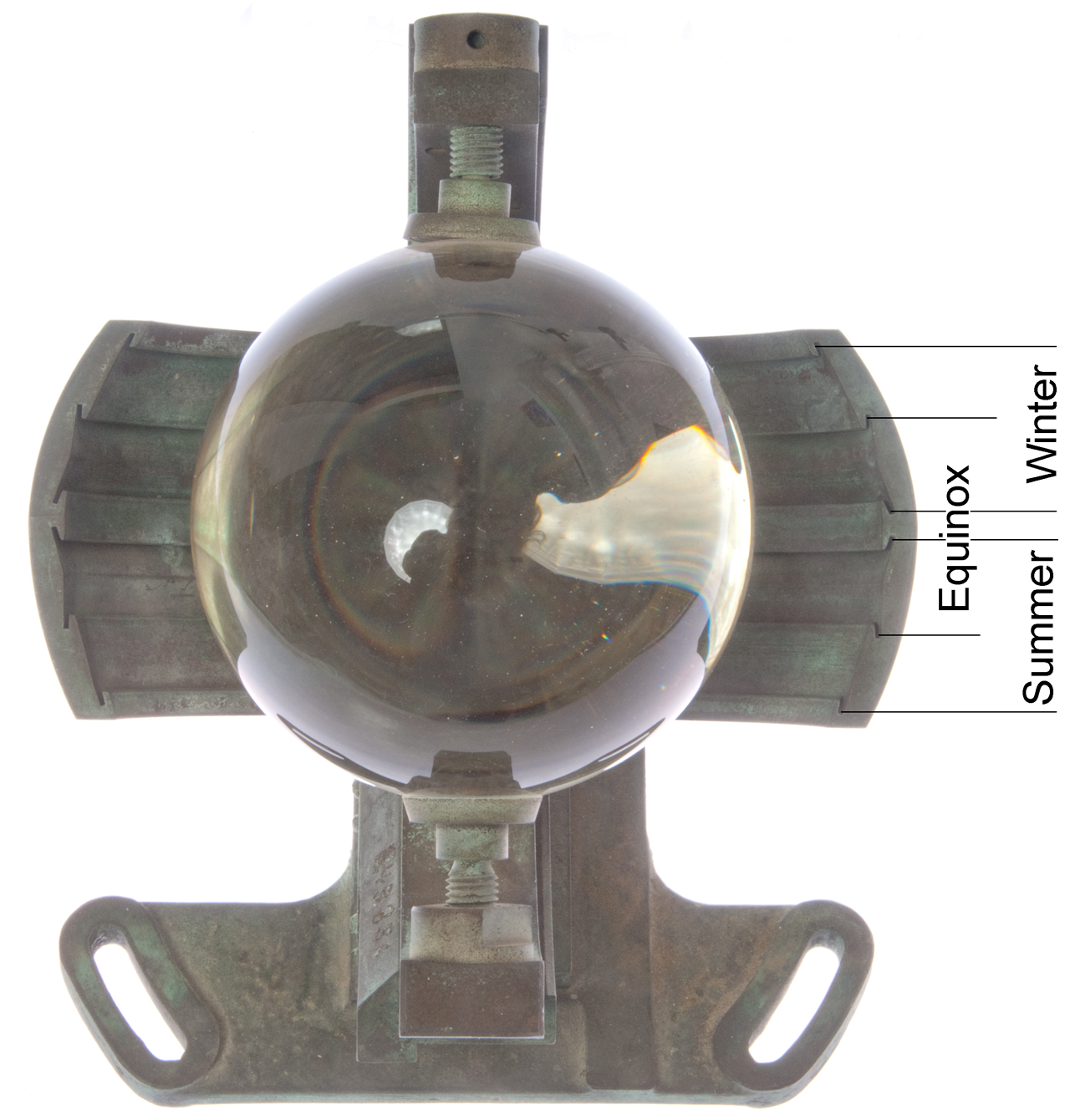

Fig 3 Front face three card positions shown
Estimated Card width:
Winter: 38mm, Equinox: 42 mm, Summer:  33mm
Campbell
                  Stokes Sunshine Recorder

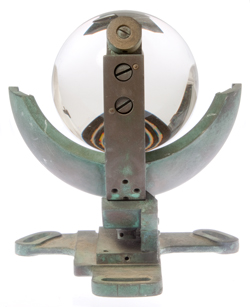

Fig 4 Back
Campbell
                  Stokes Sunshine Recorder

Latitude Adjustment

As received the latitude adjustment was set for 28.5 deg North.  Not sure where, maybe a little south of San Antonio, TX.
I'll be setting it to 39.1 deg North for my location.

It turns out that with the latitude adjustment bolt as it was the range on the degree scale was 0 to 33 deg, but I need 39.19 (if the scale is for latitude) or 50.8 deg (if the scale is for 90-Lat).
So the 7-1mm bolt was removed and then installed in the other hole that provides for 28 to 65 degrees.

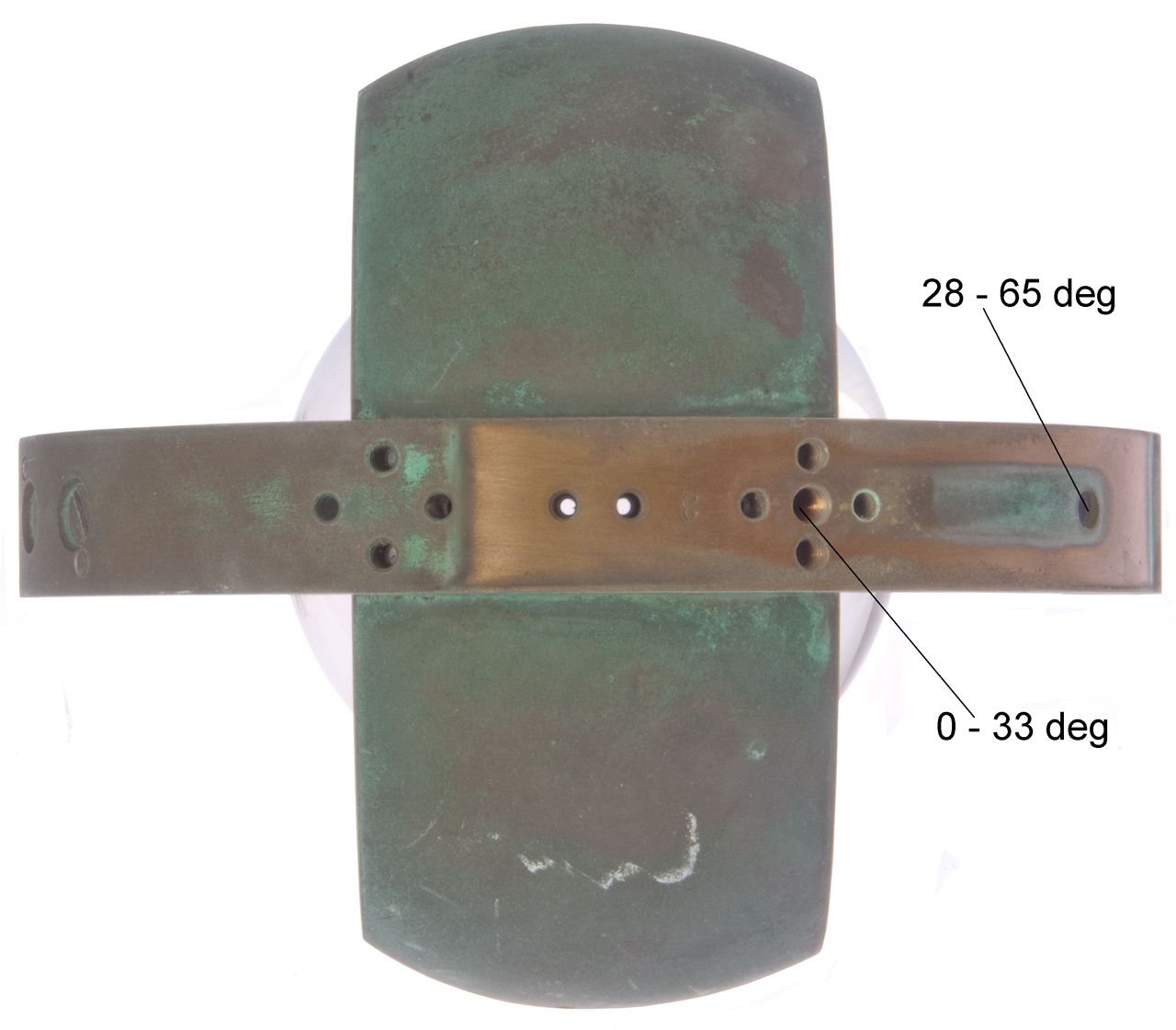

Fig 5 Bottom of latitude arc showing the two pinch bolt positions.  Note: a 0.120" dia pin is needed to turn the latitude pinch bolt.  You can see it in the bottom of Fig 4 above.

Campbell
            Stokes Sunshine Recorder

Recording Cards

As a first try I'll just cut them out of regular copy paper and see how they work.
Regular copy paper is crumples when installed.  Maybe card stock or some heavier paper would work better?

The official cards have been treated to they will not catch fire (maybe a 50-50 mixture of Alum and water?).
They are supposed to burn even in weak sun conditions (maybe the deep blue color?).
They also have a specification to not distort if saturated with water and then dried out.

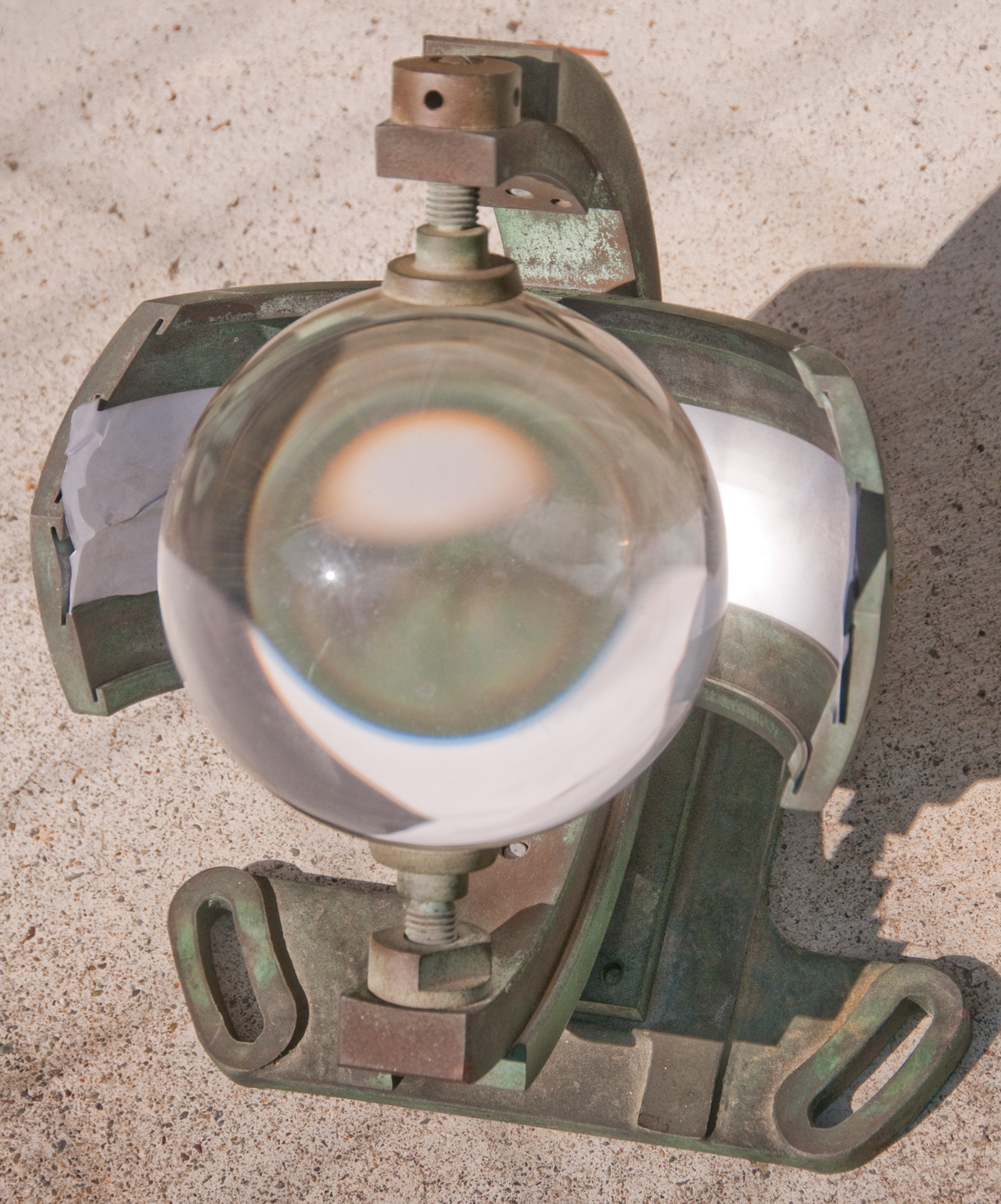

Fig 6 First try at making card

Campbell Stokes Sunshine Recorder

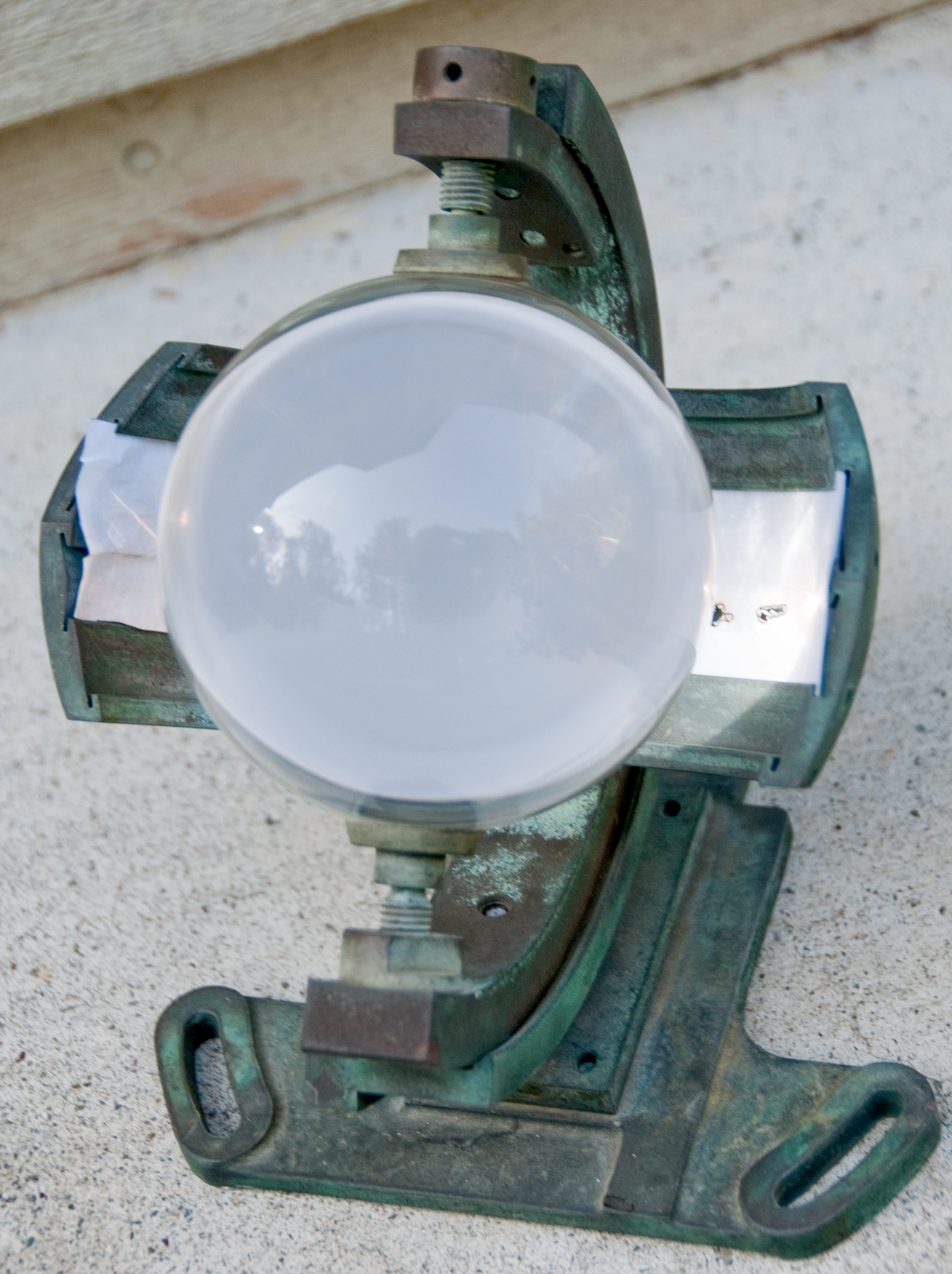

Fig 7 After some Sun

Campbell Stokes Sunshine Recorder


Fig 10
Campbell
                  Stokes Sunshine Recorder
Available from:
Fairmount Weather Systems in the UK

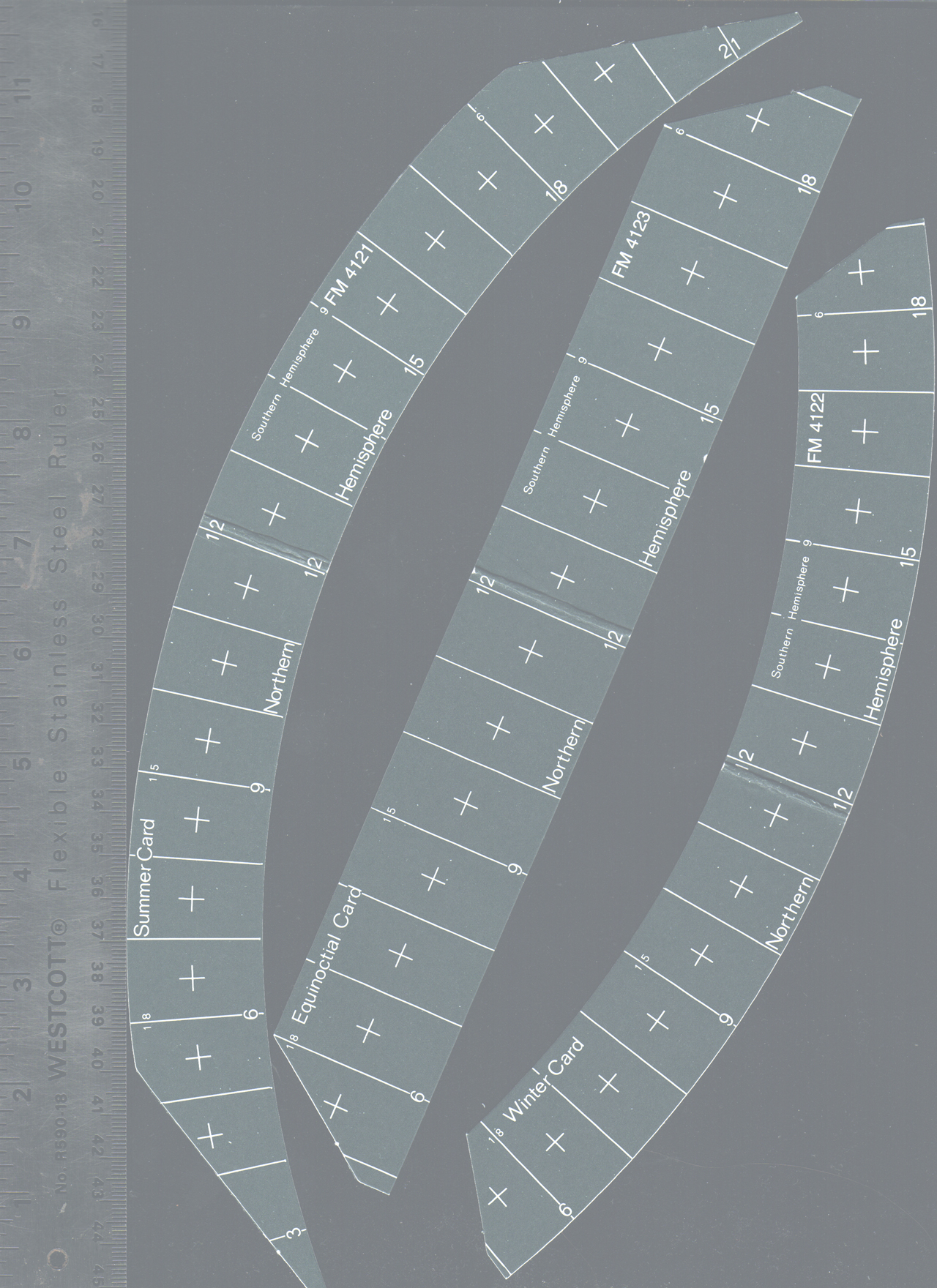

Fig 11
Campbell
                  Stokes Sunshine Recorder



Related

Astronomy
Cloud Sensors
Dent Meridian Instrument - Dipleidscope
Digital Photography 204: Studio Flash - triggers SkyScan like lightening
Eppley Standard Cells & Pyranometers
Heathkit ID-4001 Weather Station
IR Cloud Sensor
Navigation
Oregon Scientific BAR122HGLA indoor WWVB clock, barometer, temperature, humidity & THGN321ES outdoor temperature and humidity.
Seismometer & Geophone
Sensors - extensive page with many sensor types
SkyScan Severe Thunderstorm Detector
Soil Moisture Instruments
Sundial Sundials
Sundial Patents
Surveying
TMQ-34 Meteorological Measuring Set -
Weather

Links

http://collections.rmg.co.uk/collections/objects/10929.html - they don't seem to know what it is.

Metcheck - MET-1603-D1 Cards for 0-40° Sunshine Recorder - (2014 - £100 for 380 cards total of Winter, Equinox and Summer cards)
