DC Gaussmeter Model 1

© Brooke Clarke 2015

Fig 1
AlphaLab DC
          Guassmeter Model 1
Helmholtz Coils
Permanent Magnets
GE Gauss Meter
AMY6 Magnetic Tester


Related for my interest in things magnetic.


This DC Guassmeter (Wiki: Magnetometer).  It can measure both DC and AC fields.
Made by AlphaLab Inc (aka: Trifield)

In Fig 1 above the display is reading zero after the offset was set to 0000 using the LakeShore 4060 Zero Guass Chamber (also see: .
The display is showing 0000 on the 19,999 Gauss range.  The Earth's magnetic field is about 50,000 nano Tesla or 0.5 Gauss.  The Earth's field does not show up on the high range.

The low range is 1999.9 Gauss full scale, so the Earth's field can just be seen, but not really measured because there's only one digit changing and the stability of the zero adjustment is not that good.  By placing a couple of 2-1/2" long nails, back to back on the sensor the reading can be multiplied by about 7 times making the maximum Earth's files show up as about 7 Gauss.

Placing the probe on the end of a K&J Magnetics DCX8 (3/4"dia x 1-1/2" cylinder, N43, Ni) causes an overflow indication (-1).


Helmholtz Coils (on it's own web page_

Permanent Magnets

Measuring some cylindrical magnets from K&J Magnetics:

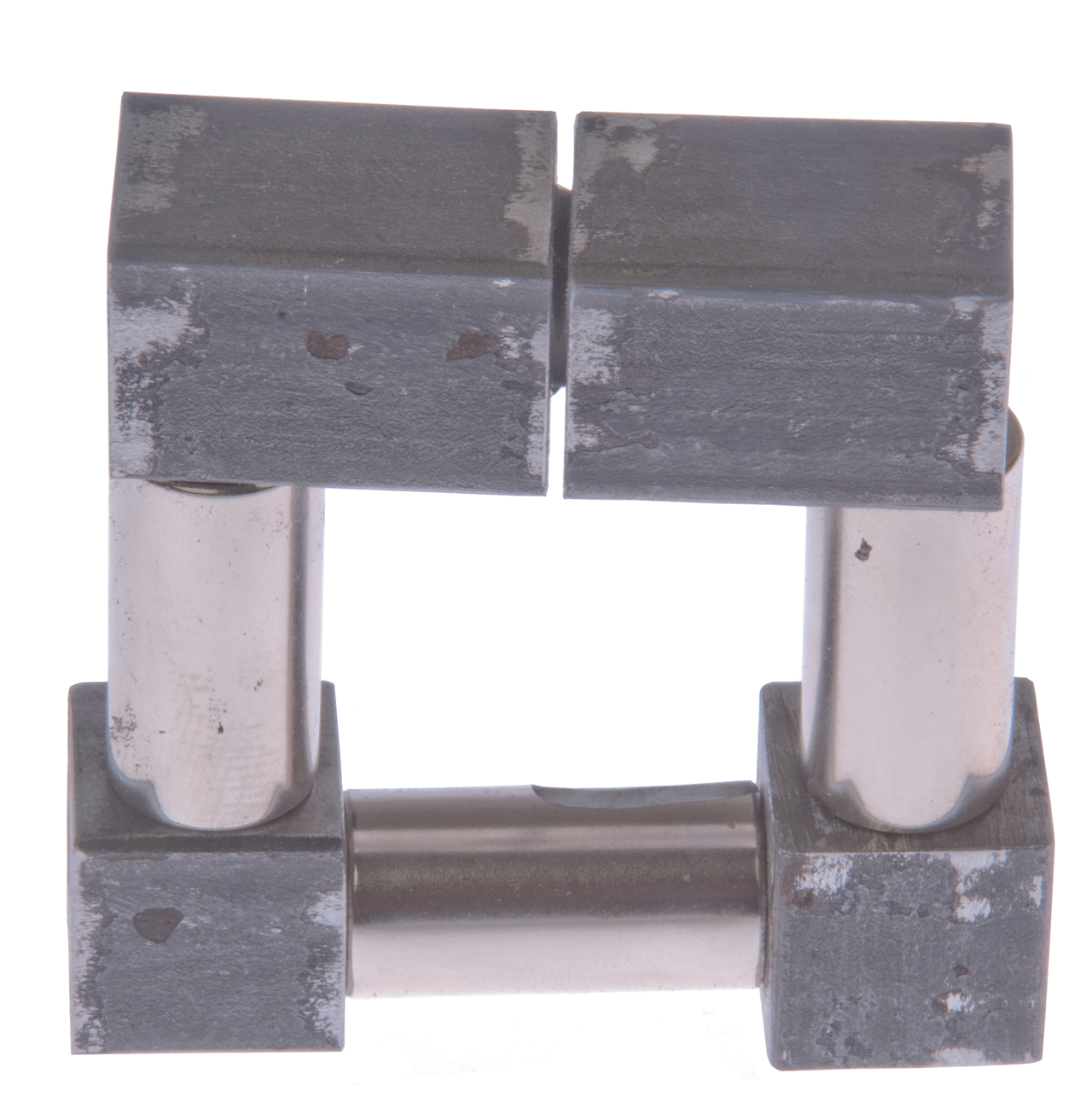

Fig 1  The idea was to connect tree of the DCX8 (3/4" x 1-1/2") magnets in series and use pole pieces and a narrow
gap to generate a much stronger field, but it didn't work.

Why?  let me know

Permanent Magents Gauss measurement

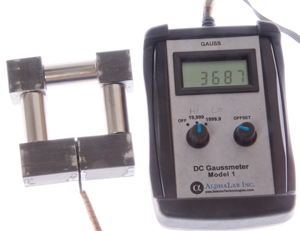

Fig 2 reads 3678 Gauss in gap

Permanent Magents Gauss measurement

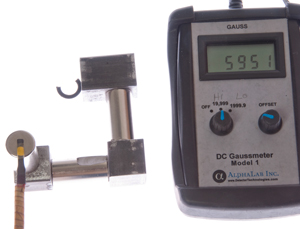

Fig 3 Single magnet reads 5950 Gauss

Permanent Magents Gauss measurement

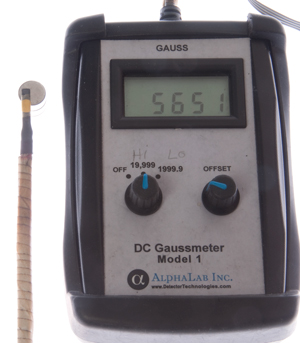

Fig 4  Three small magnets read 5651 Gauss.

Permanent Magents Gauss measurement

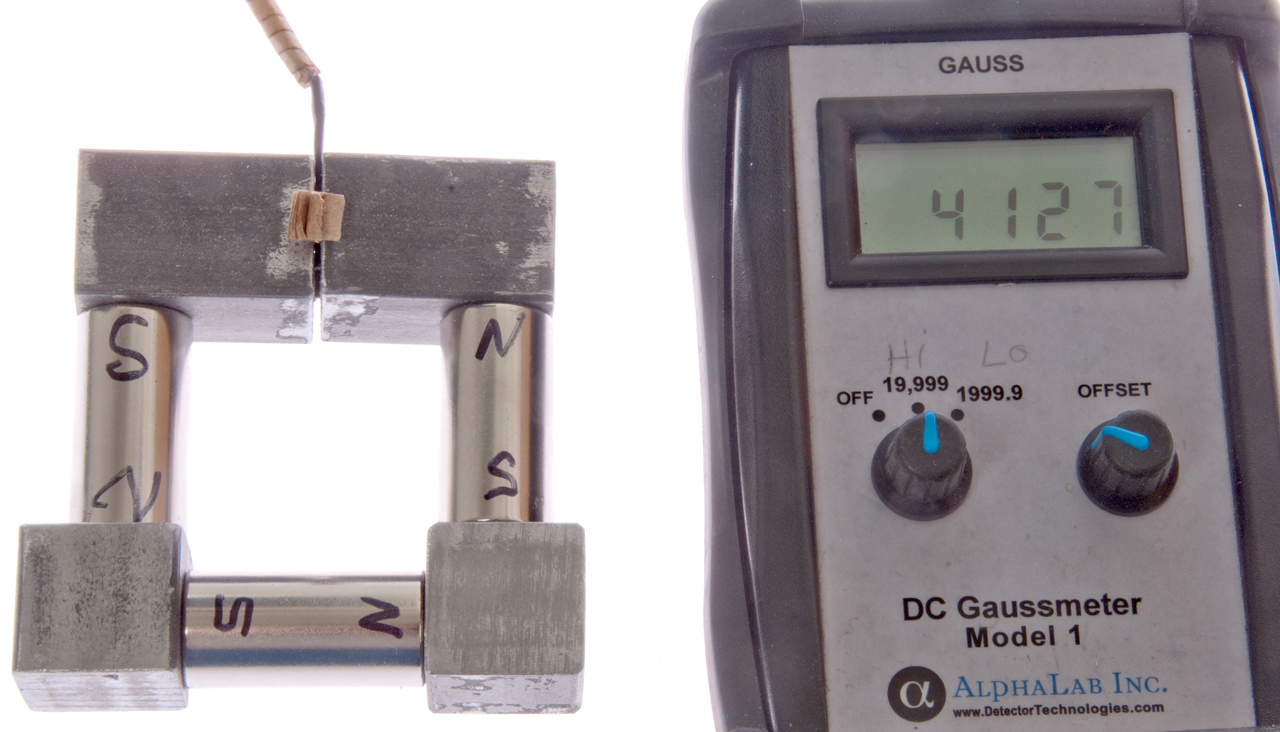

Fig 5 4127 Gauss in gap by making the gap about the same size as the probe.

Permanent Magents Gauss measurement

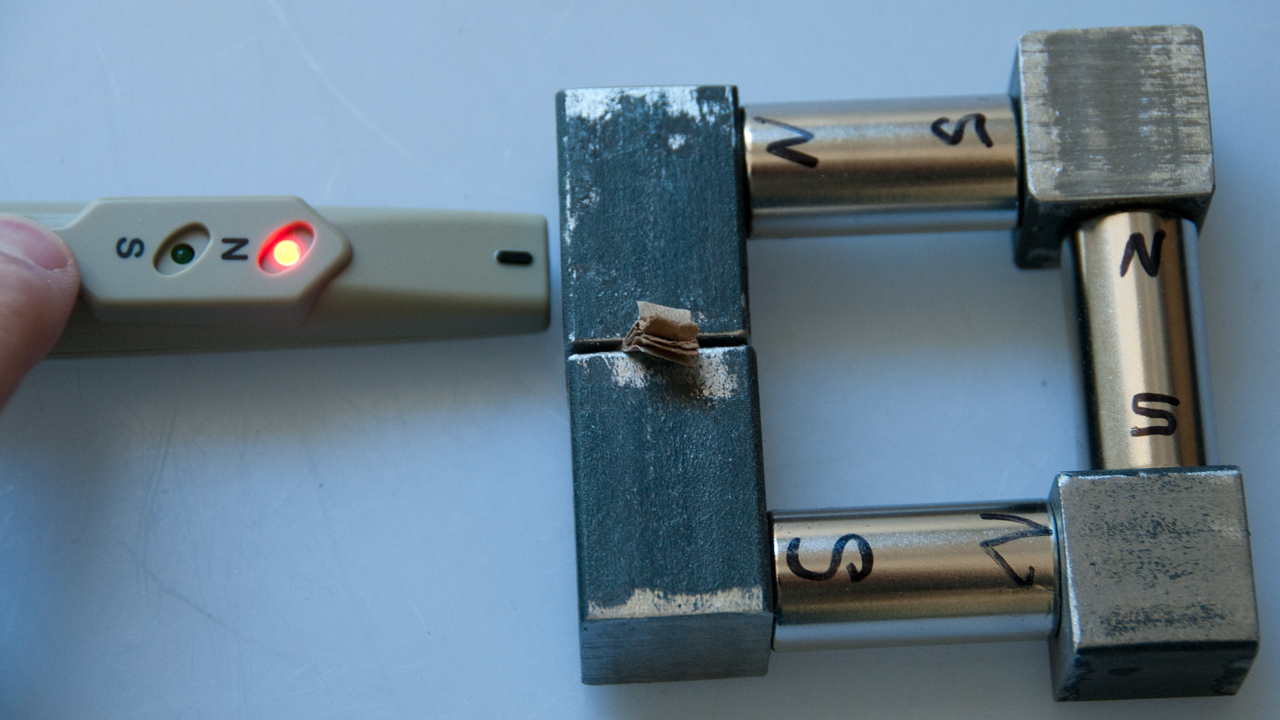

Fig 6 Used the AMY6 Magnetic Tester to mark each magnet.

Permanent Magents Polarity AMY6 Magnetic

GE Gauss Meter & Reference Magnet

To use this meter you need to rotate it in order to get the peak torque on the needle.
When the probe is placed in the 2500 Gauss Standard Magnet it reads 2300 Gauss.  I'm guessing the standard is not as strong now as it was over 50 years ago.
But the meter is still working!

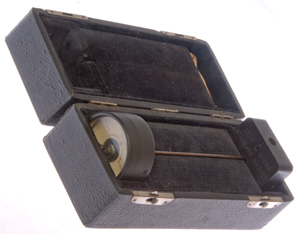

GE Gaussmeter Fig 1
Meter: Cat. 409X59, N.P. 121010 What is N.P.? contact
                      Gauss Meter & Reference Magnet

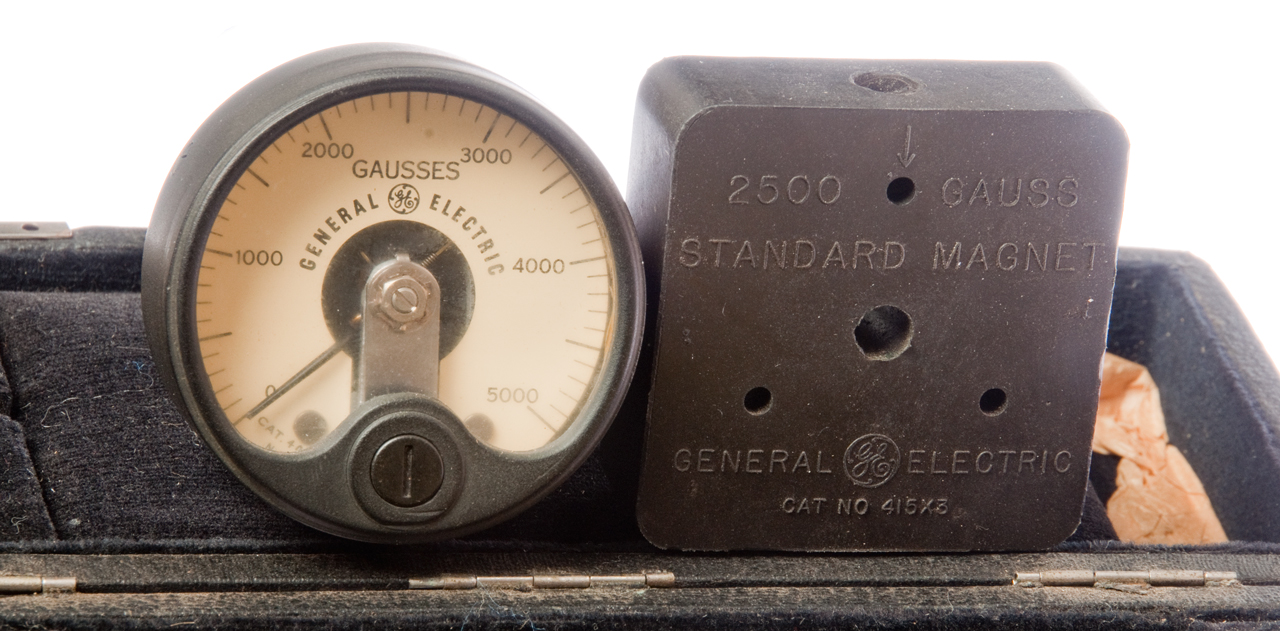

GE Gaussmeter Fig 2
2500 Gauss
Standard Magnet
General Electric
Cat No.  415X3
GE Gauss
                      Meter & Reference Magnet

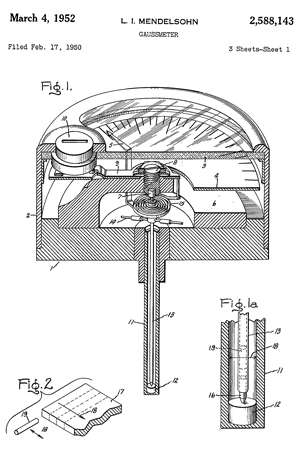

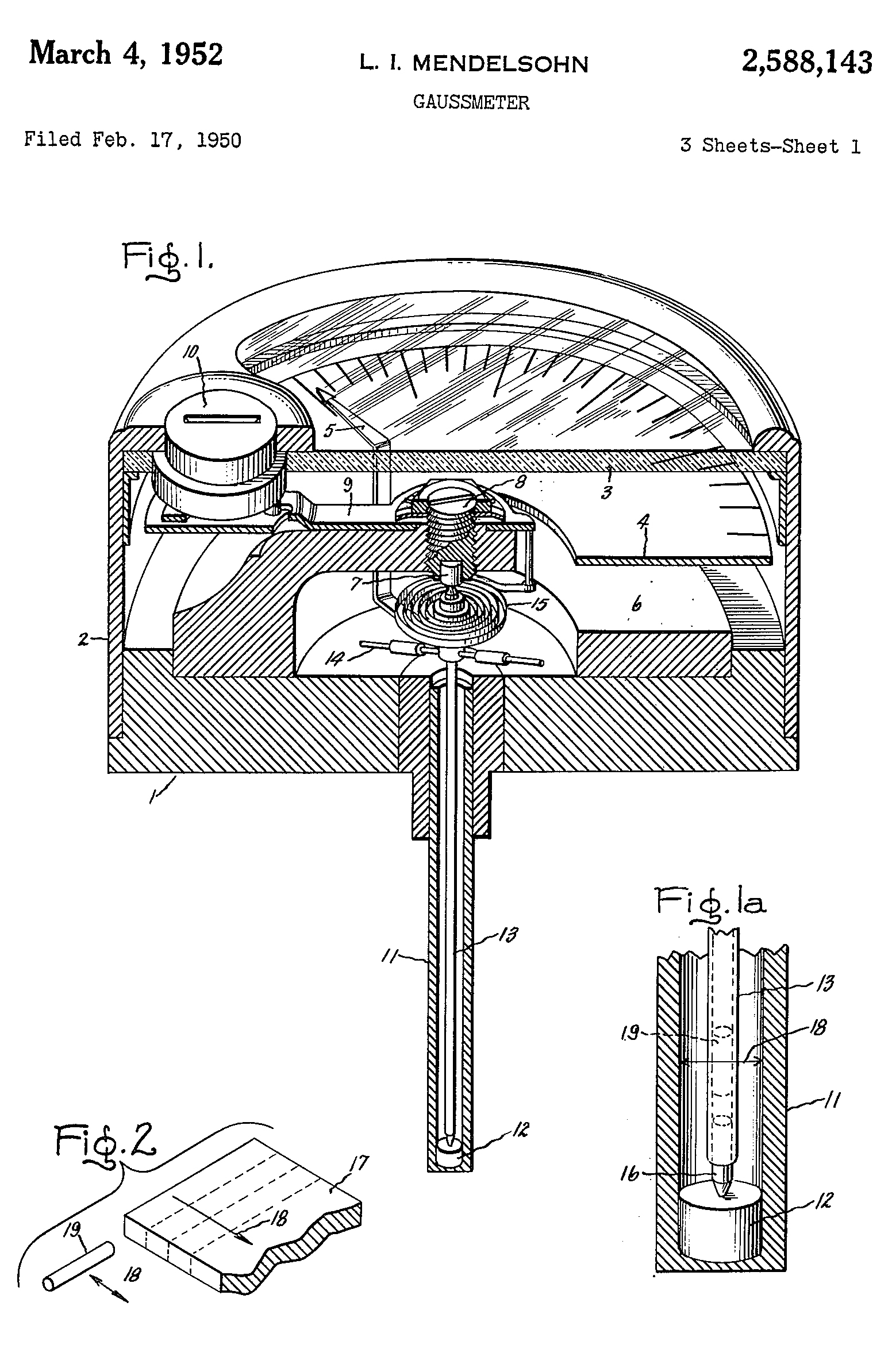

Fig 3 Patent US2588143
GE Gauss
                      Meter & Reference Magnet

2447880 Magnetometer, Seaver John D, Gen Electric, Aug 24, 1948, 324/259, 324/146, 324/154.00R, 324/151.00R - DC only

uses a small permanent magnet.  The meter body is rotated to get maximum reading.
2588143 Gauss meter, Mendelsohn Lewis I, Gen Electric, Mar 4, 1952, 324/259, 324/154.00R - AC or DC
Makes use of CuNiFe material as described in patent 2196824, Permanent magnet consisting of copper, nickel and iron.
Unlike most magnets this material can be rolled into thin sheets where the magnetic grain is aligned, see Fig 2 above, and so very small magnetic needles can be formed.  This metal alloy was used in the Fender Telecaster guitar pickup.

AMY6 Magnetic Polarity Tester

Fig 1
                      Magnetic Polarity Tester UPC: 6 81035 55300 8

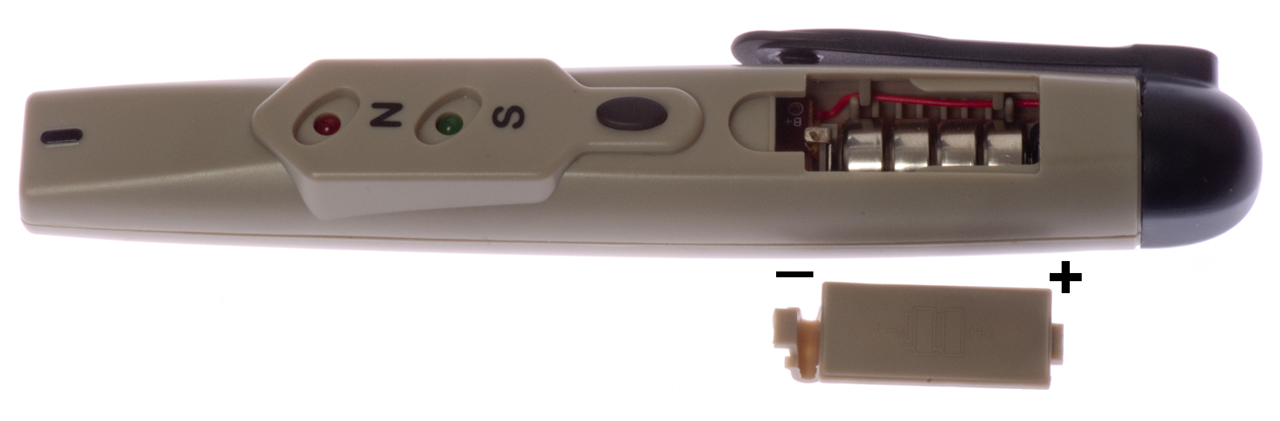

Fig 2 Rotate pocket clip 90 degrees to access battery compartment.
Install four batteries with positive (+) to black pocket clip end.
Note: battery polarity is shown on compartment cover.

                      Magnetic Polarity Tester UPC: 6 81035 55300 8
Fig 3 Piezo beeper just under pocket clip at end.
Case halves cemented together so not easy to open.
                      Magnetic Polarity Tester UPC: 6 81035 55300 8
Fig 4 Video of Wrong & correct use.


The box sticker:
Magnetic Tester
UPC: 6 81035 55300 8
General Tools & Instruments, New York, NY 10013

The tester:

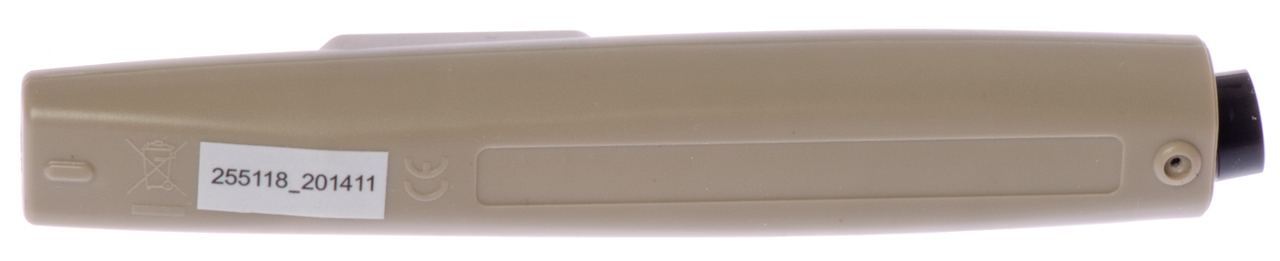

sticker: 255118-201411

Data Sheet:
[un checked] MS-47PT
[checked] MS-47PT1 (with audible sound)
Batteries (1.5 V 4 each): LR44, 157, AG13, A76, L1154

This is a magnetic polarity tester that runs on four LR44 button cell batteries.  A red (North) or green (South) LED turns on and a beep sounds to indicate the polarity of a magnet.  This is handy to be sure you're connecting permanent magnets the way you intended.
The results are sort of ambiguous because the result depends on the orientation of the probe.  The probe is designed to be used end on, not on either side.  See the above video to see the proper orientation of the probe.


Press button and move end of tester toward pole of magnet.
It is not correct to move either side of the tester to magnet pole.


HT20 2000 mT Magnetic Flux Meter - this instrument has very similar capabilities, bur for a much lower price
