Background

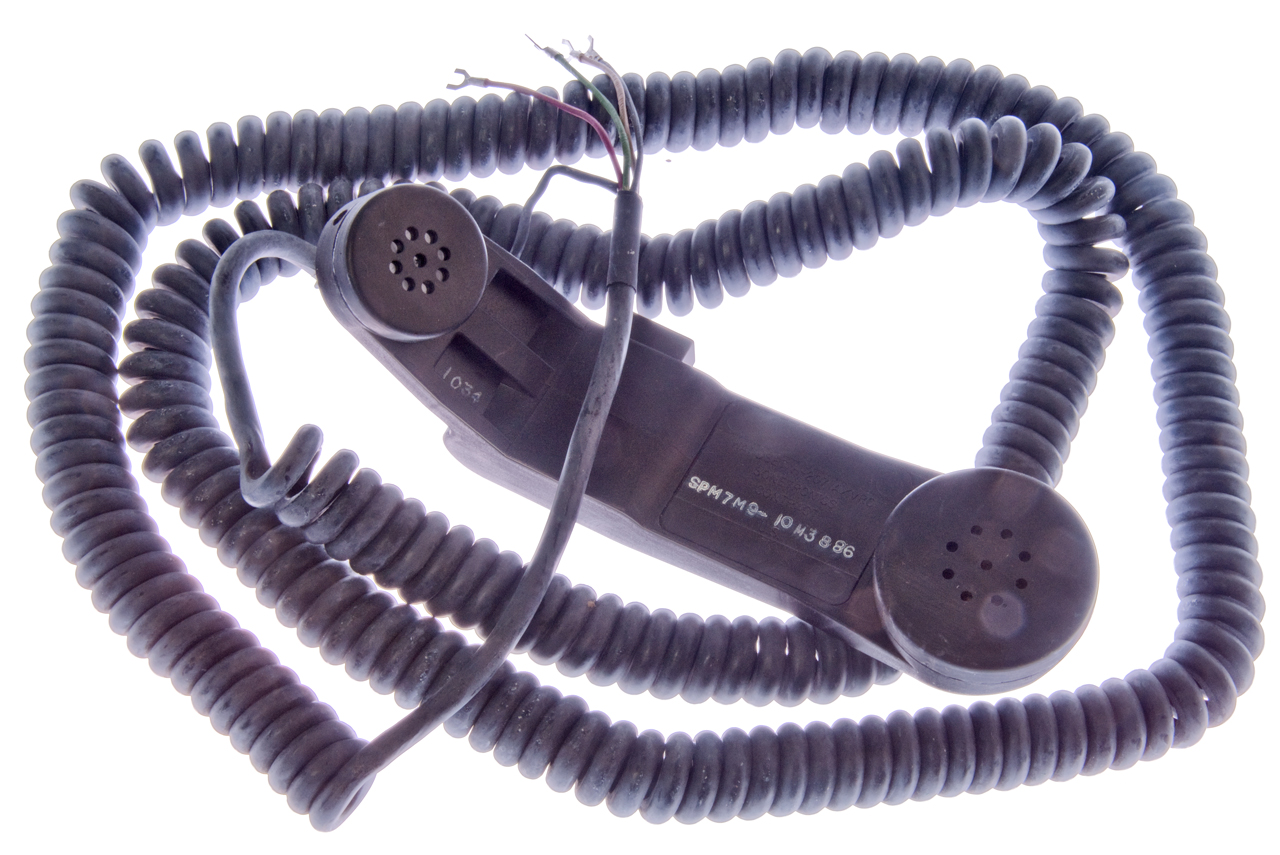

It's a noise canceling handset very much like the H-250 (or  H-350).  The thing that's different is the coiled cord is about 6' long and has spade terminals, not a connector.

This came on the surplus market in Nov. 2014 as new old stock, still wrapped in the foil bag.

Purchased from eBay seller: pigskinpeterman

Used on the M551A1 Sheridan light tank (Wiki) located behind the left tail light assembly.

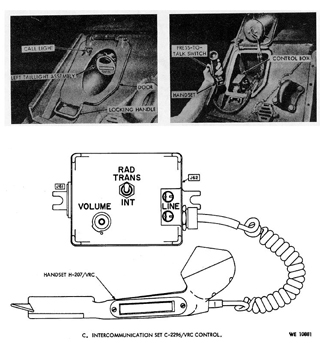

M551A1 Sheridan, C-2296 control box & H-207A/VRC Handset

Description

Foil Bag

Label: NSN 5965-00-686-7067
CAGE No. 16575 (Sonetronics)
p/n: H-207A/VRC
Handset
1 Each
SPM7M9-10-M-3886 (also white lettering on handset)
C   08/10

Wire Ends

Instead of the common U-229 audio connector the coiled cord is terminated with terminals.  That was to connect to the C-2296 Outside VIC-1 control box.
It would be more useful if a U-229 connector was installed.  But first the wiring needs to be figured out:

Continuity Check PTT not pressed


 Black
 Red
 Green
 White
 Shield
Black
 -
 -
 -
 -
 -
Red
 OL
 -
 -
 -
 -
Green
 OL
 OL
 -
 -
 -
White
 9481
 OL
 OL
 -
 -
Shield



-
Note 1: sound in speaker

Continuity Check PTT pressed


 Black
 Red
 Green
 White
 Shield
Black
 -
 -
 -
 -
 -
Red
 OL
 -
 -
 -
 -
Green
 203
 OL
 -
 -
 -
White
 OL
 OL
 9501 -
 -
Shield
1502

-
Note 2: sound in mike
Note 3: PTT

U-229 Wiring

U-229 Wiring Table
U-229
 Function
 Wire
A
 Ground
 Black & Shield
B
 Speaker
 White
C
 PTT
 Green
D
 Mike
 Red
E
 na
 nc
F
 na
 nc

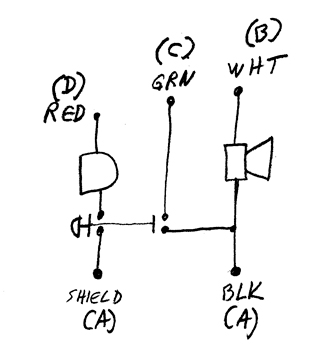

Schematic Diagram
H-207A/VRC Handset schematic diagram
