Background

Povenance

This was owned by sea captain George Gibbs (1800 - 1858) and has been in his family for about 100 years.

This Day or Night single draw telescope was made by Barry on Minories St., London.  The same design was also made by Dollond & Aitchison (Wiki), Doland (Wiki), London; T. Harris & Son, London; Richardson, London; Watkins & Hill, Charing Cross London; George Dixey, London made a triple draw version.

Description

This is a single draw telescope where the main body is made of wood and the draw tube is metal.  The draw tube has a smaller tube mounted inside which in turn contains a couple of lenses.  The eyepiece is made up of two lenses.

The design is a microscope looking at the objective image. (Ref 1.)  That's interesting since modern "infinity tube" microscopes are astronomical telescopes looking at a collimated image from the objective, (Nikon infinity SMZ head).

Huygens (Wiki) type eyepiece.

Day or Night

The "Day or Night" nomenclature comes about because it is possible to remove the erecting lens assembly that's used for right side up terrestrial daytime use to get an inverted image that's common for astronomical telescopes.

I'm trying to understand the basis for this claim.  For example binoculars used for astronomy or military use in poor light conditions have an exit pupil diameter of about 7mm.  The 7x50 military binoculars or the Orion 9x63 are in this "Night" category.  Binoculars with smaller diameter exit pupil diameters are for "daytime" use.

This Day or Night telescope has an objective diameter of 39mm but the magnification is not specified for either day or night use, so the exit pupil is unknown.

Specifications

Based on measurements of the telescope.
Distance between Objective and eyepiece field stop (30.7") / distance between field stop and eyepiece lens (3.9") = magnification (8X).
Exit pupil = Objective diameter (1.54"; 39mm) / magnification (8) = 5mm - a common daytime exit pupil size.

Officer of the Watch

This is the designation of a newer hand held telescope also used on ships. Very common  in the UK.
These are always used as a "day" telescope, i.e. with the image erector installed.

Photos

Fig 1 Engraving
Overall
Day or Night Single Draw Telescope
Label

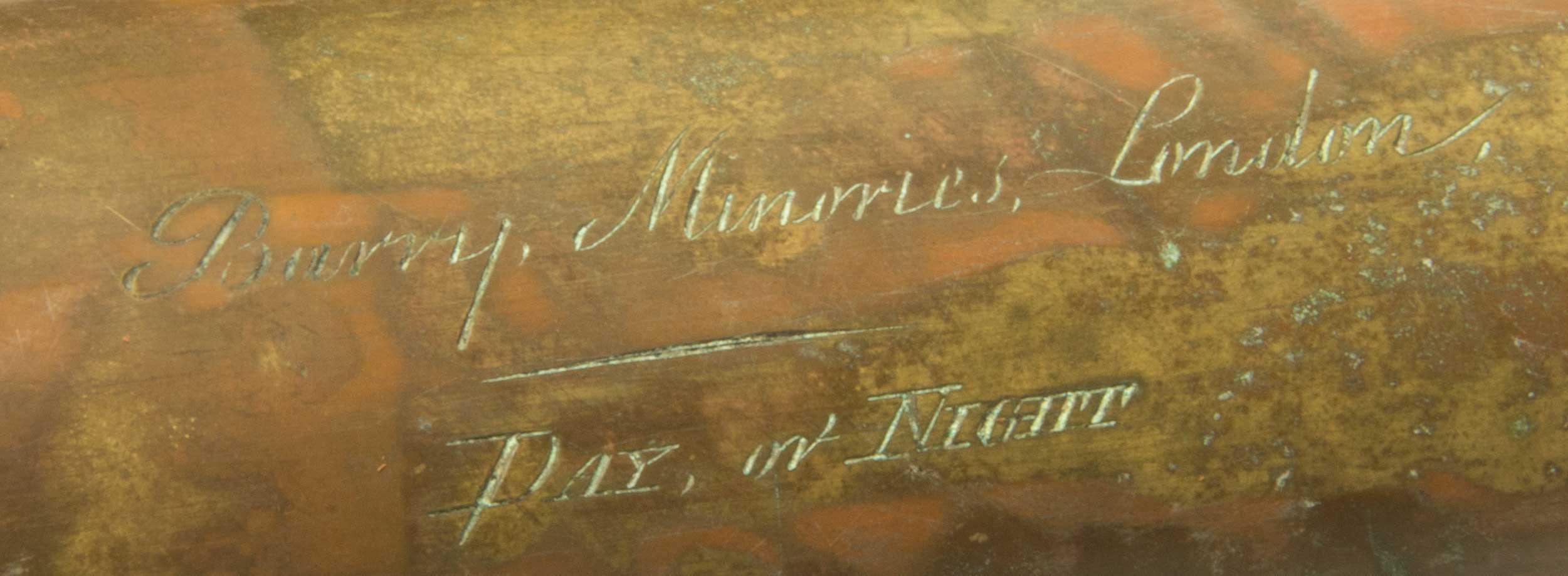

First Line: Barry Minories, London
Second Line: Day or Night
Day or Night Single Draw Telescope

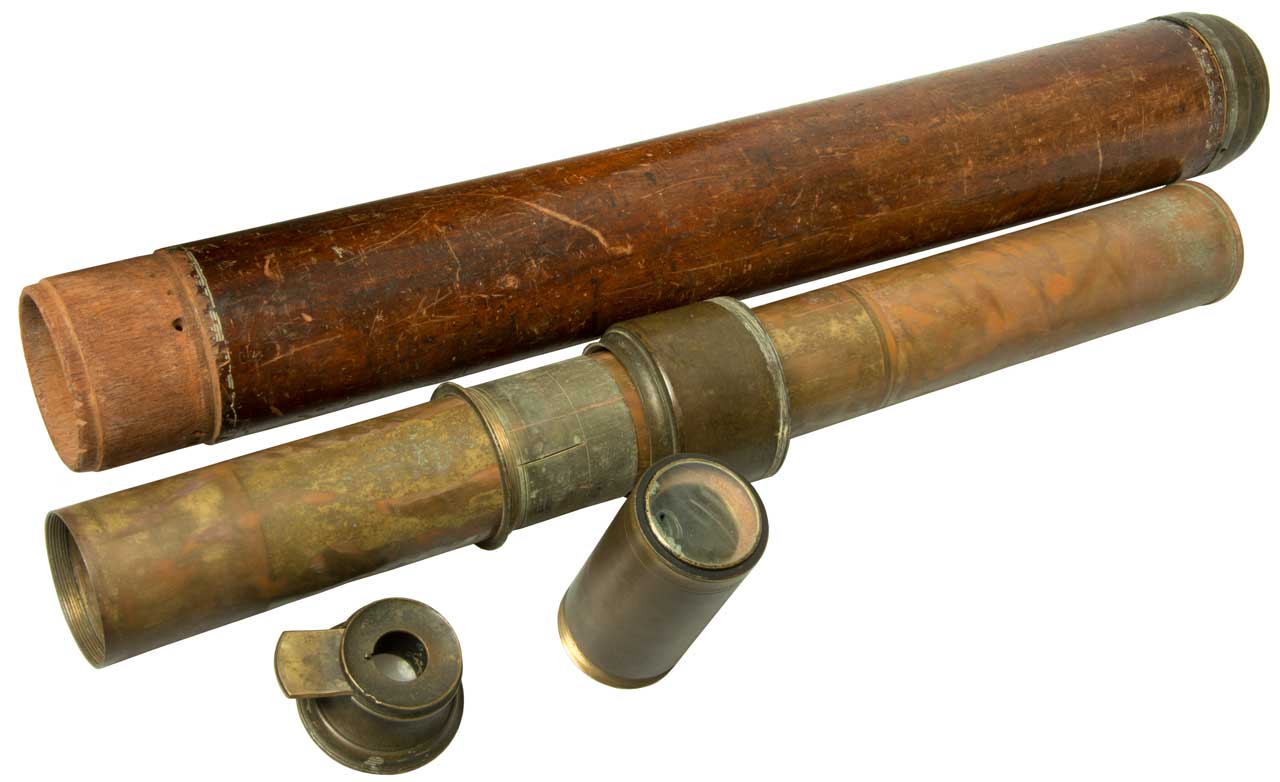

Fig 2 Components
Day or Night Single Draw Telescope

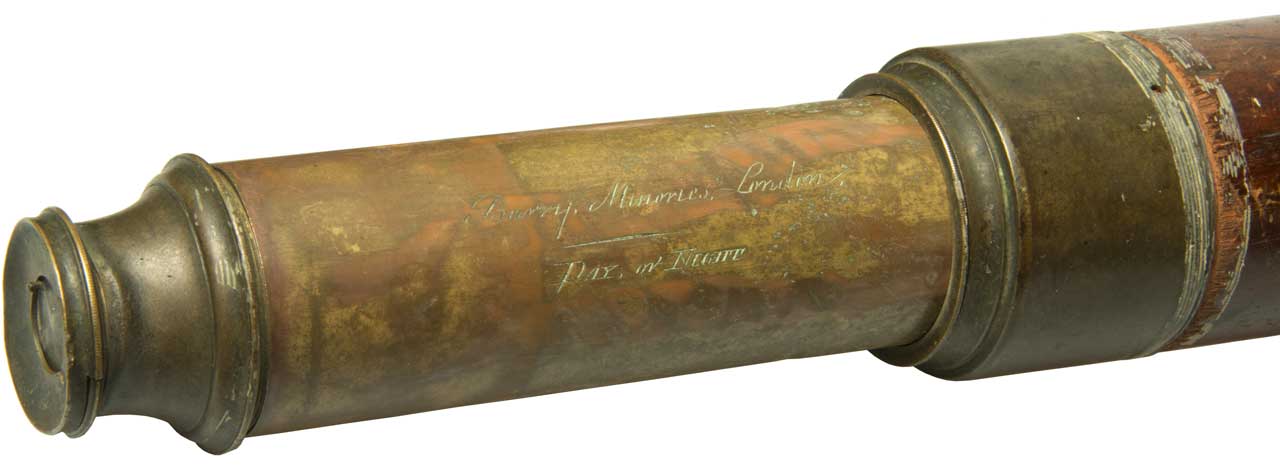

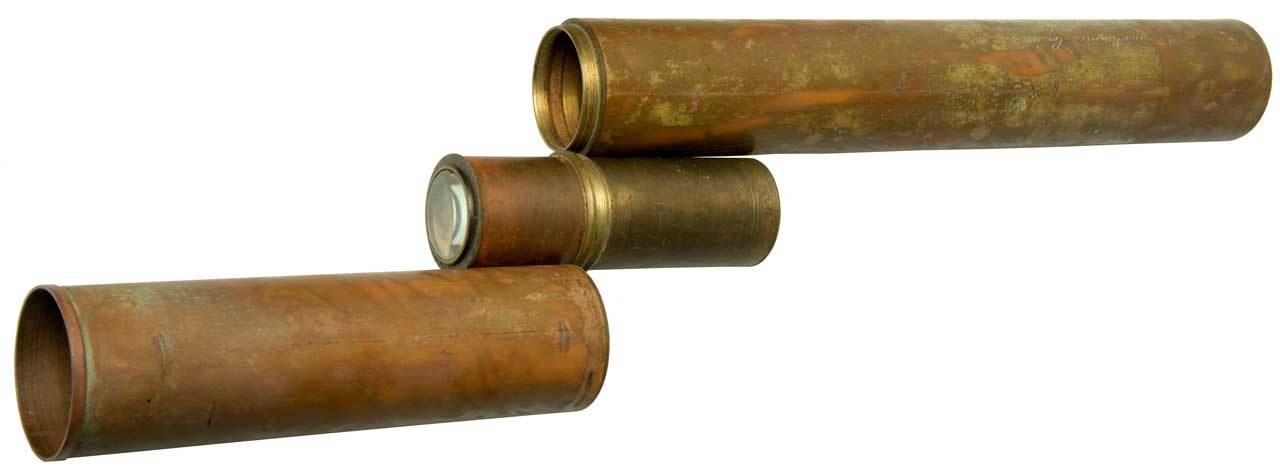

Fig 3 Draw Tube Objective end to left

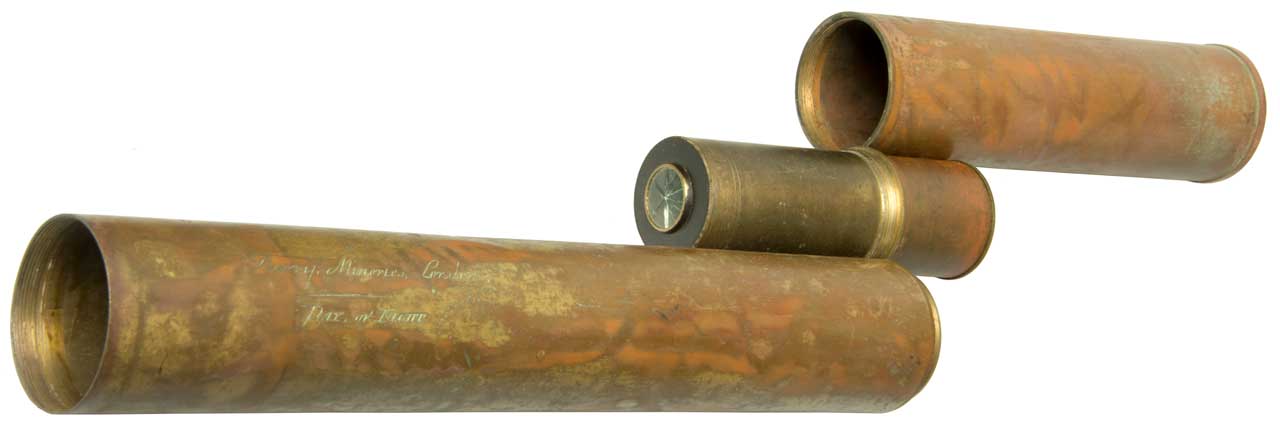

Day or Night Single Draw Telescope		 Fig 4 Draw Tube Objective end to right
Day or Night Single Draw Telescope

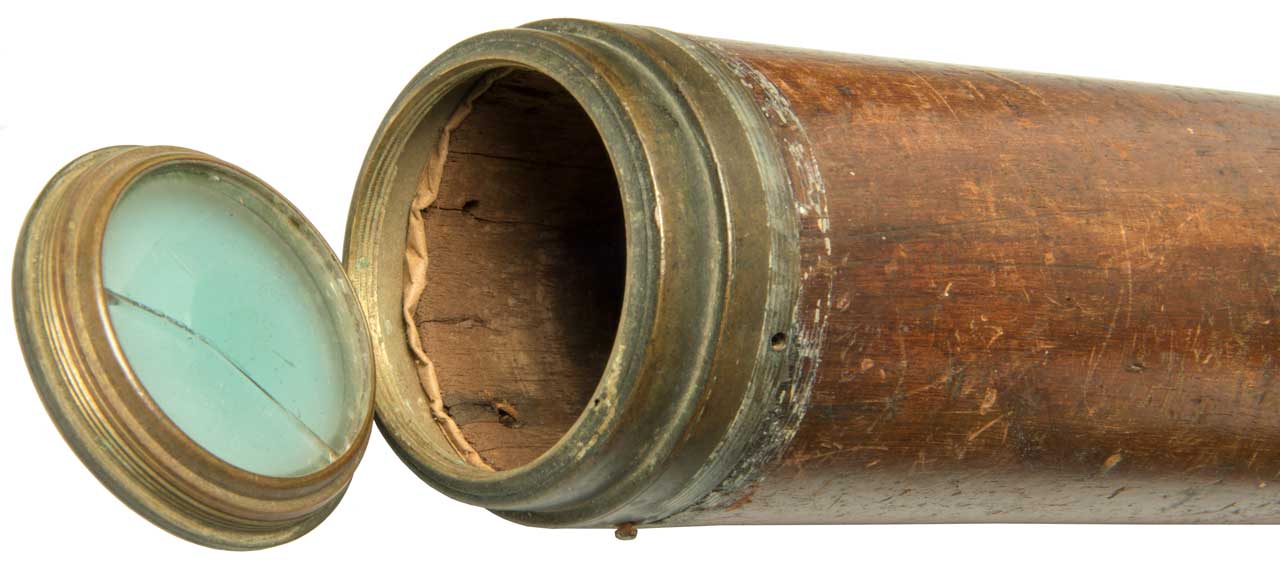

Fig 5 Objective

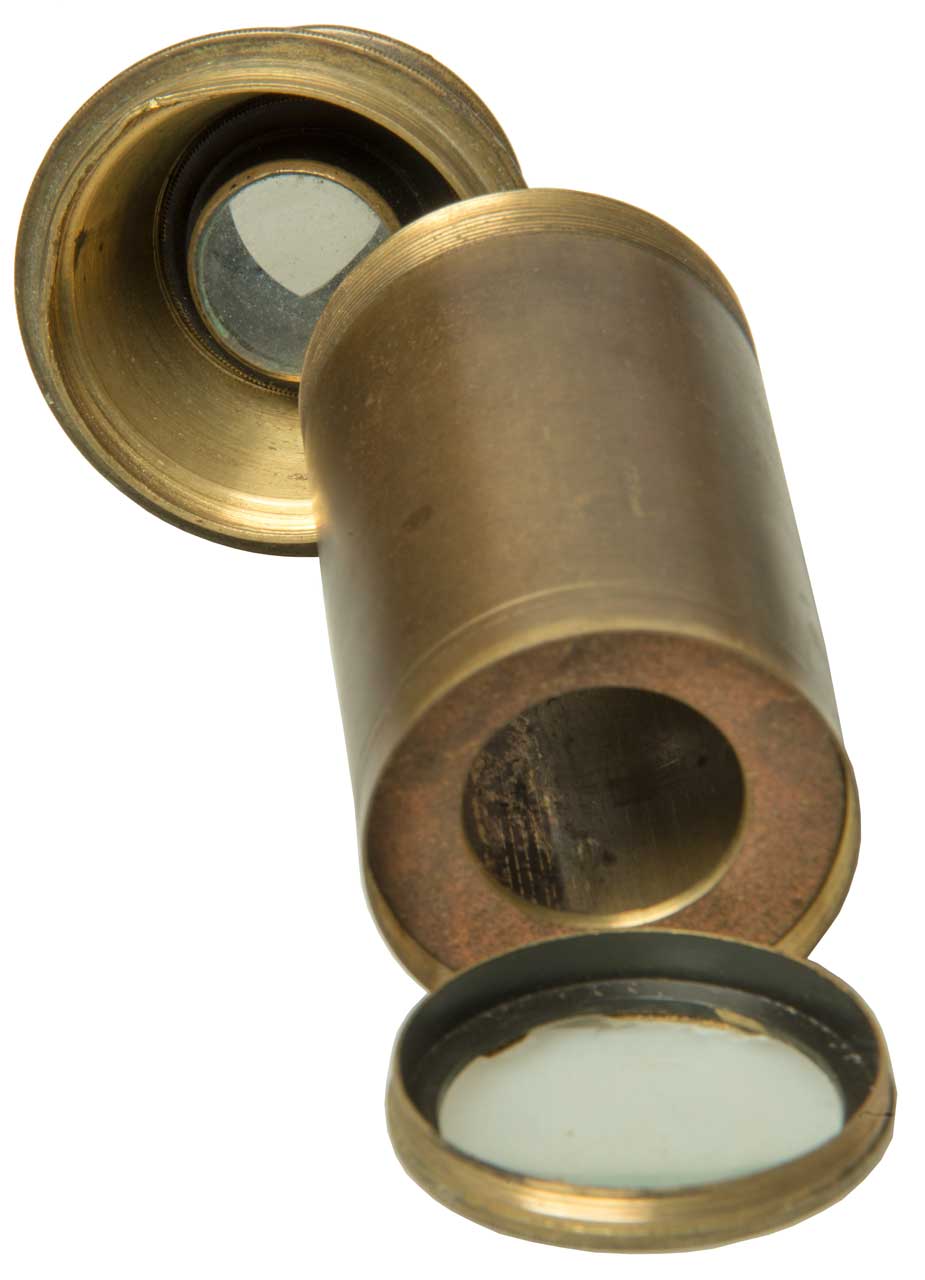

Day or Night Single Draw Telescope		 Fig 6 Huygens Eyepiece
Day or Night Single Draw Telescope

Drawing

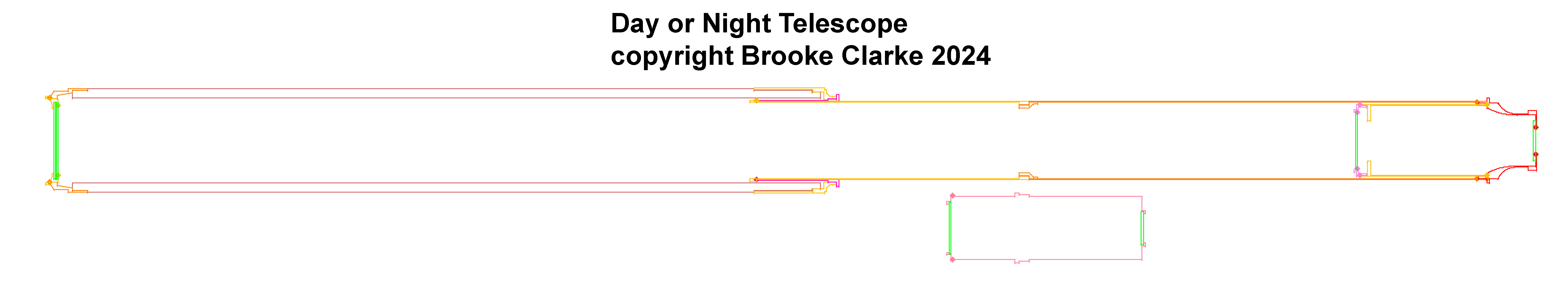

Note:  I'm showing all the lenses as green rectangles since I don't have a way to measure their optical properties.
I can not find my Geneva Lens Clock.  If you have lens specs let me know.

2024 July 6  - Rough drawing DNTelescope.jpg
2024 July 8 - Kroil opened Erector Assy.
