Background

Saw this on eBay for $40 from seller east_sector. The interesting thing was the Off-Volume control even though there in only a U-229 type audio connector. So expected the center pin (F) to be a DC input. But that's not what it is. This speaker was designed to work with the VIC-3 intercom system, not radios. That explains the OFF-Volume knob and lack of internal amplifier.

Description

This is a passive loudspeaker with an OFF (DC open) and volume control (quiet is 535 Ohms and loud is the 5 Ohm speaker).

Photos

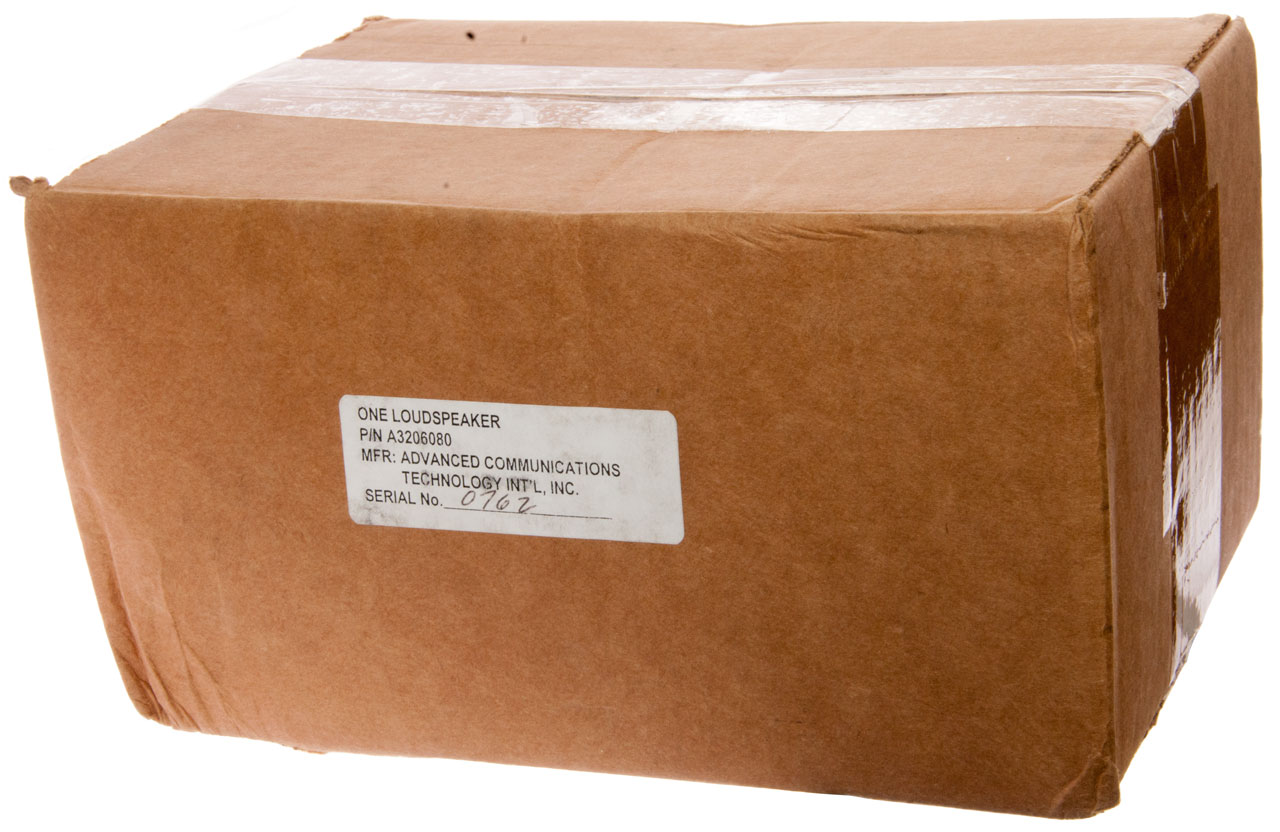

Fig 1 New in box:
One Loudspeaker
P/n A3206080
Mfr: Advanced Communications Technology Int'l Inc
Serial No. 0762

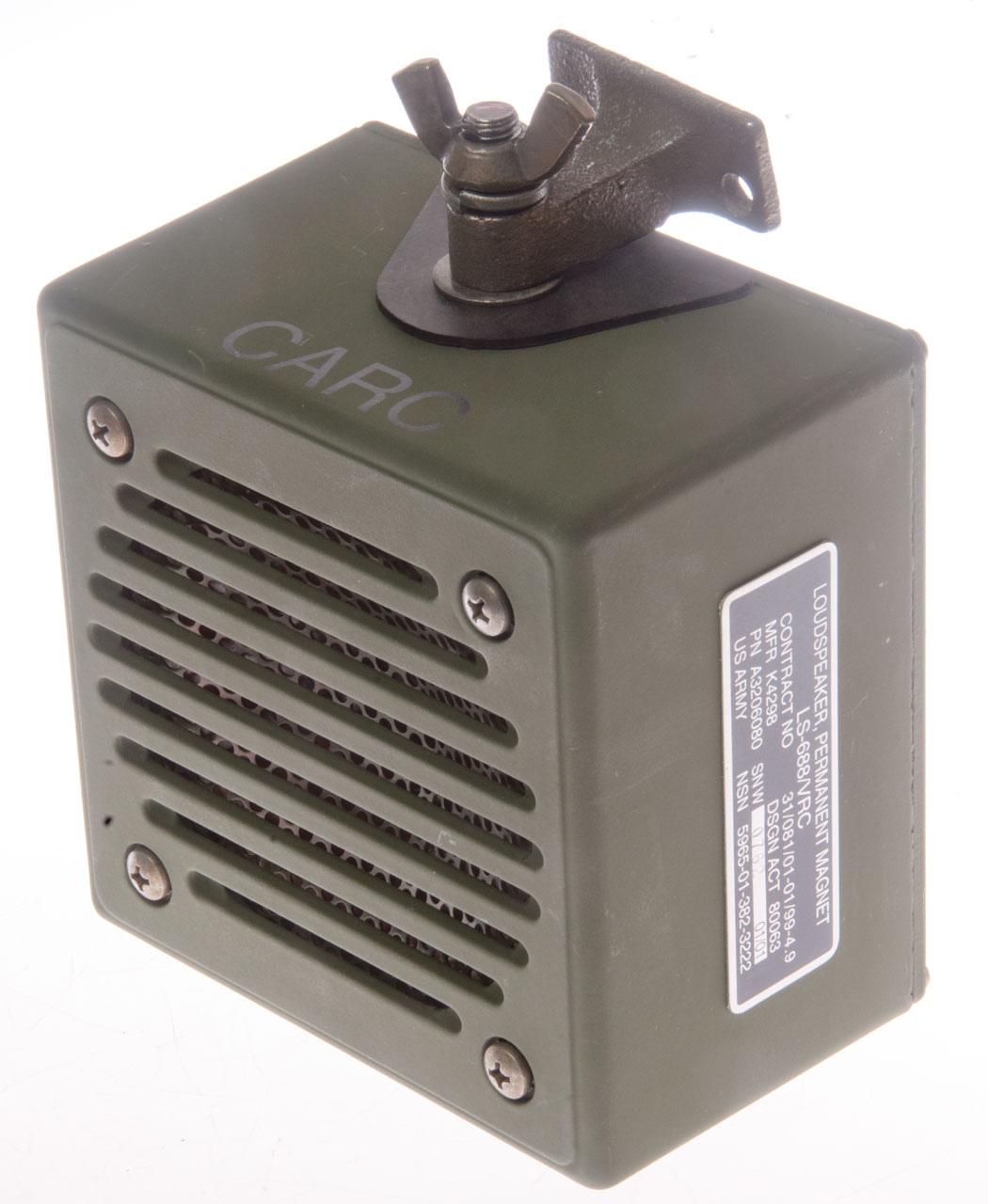

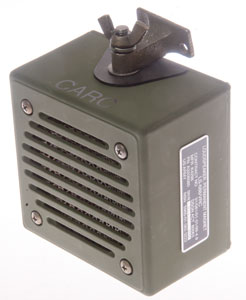

Fig 2 Label:
Loudspeaker Permanent Magnet
LS-688/VRC
Contract No. 31/081/01-01/99-4.9
Mfr: K0239          Dsgn Act 80083
pn: A3206080       sn W0762    01/01
US Army      NSN: 5965-01-382-3222

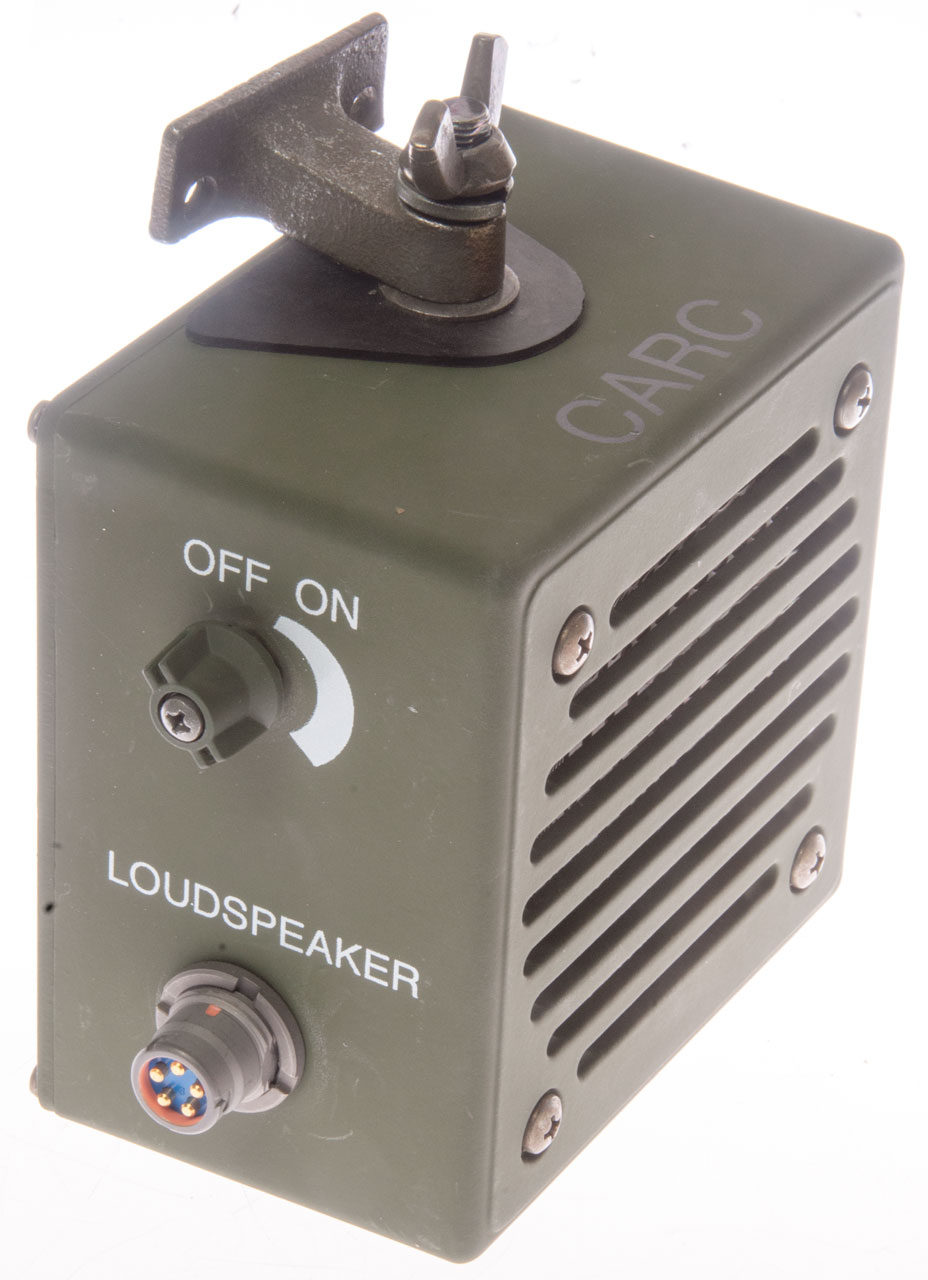

Fig 3 There is no index paint on Off-Vol knob

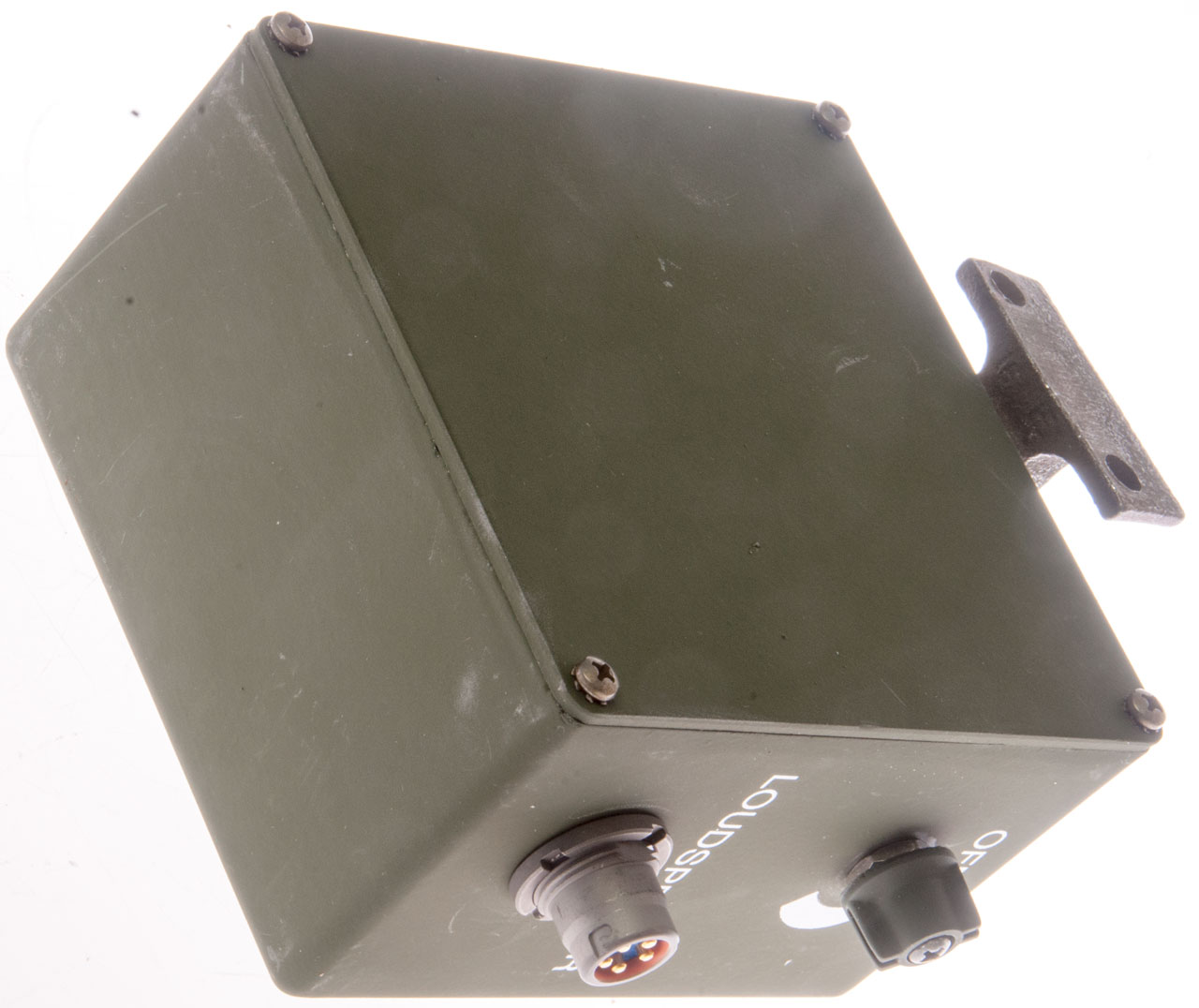

Fig 4 4 screws hold on back - no gasket

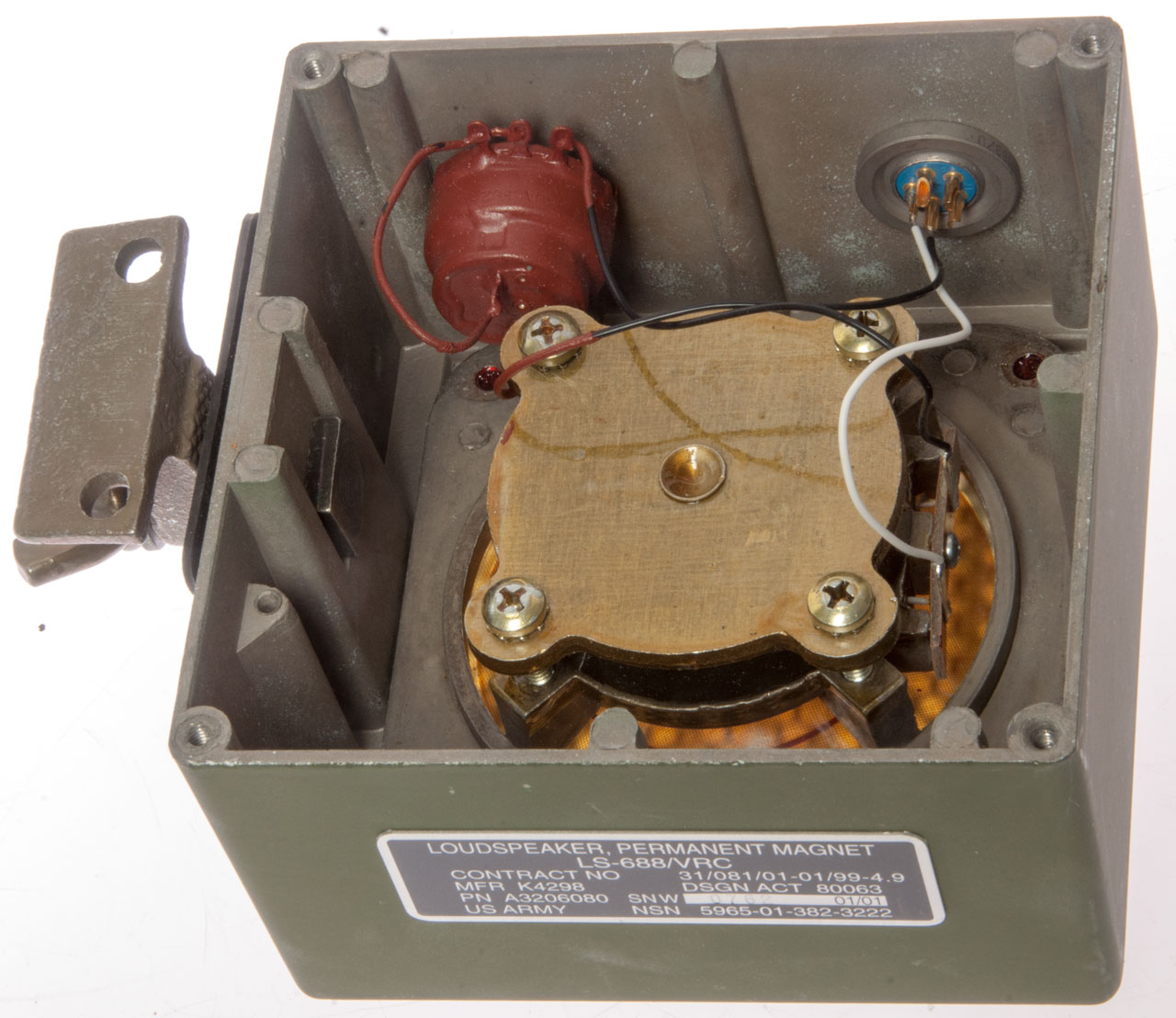

Fig 5 Wired to pins A (ground) and B (speaker)
No markings on speaker.

Patents

AM-4979/GR Amplified Speaker
Audio Connectors & Military Cloning - Fill - Retransmission
BS302 Bell System 302 Dial Telephone
BS500 Bell System 500 Dial Telephone
Beltone 12D Audiometer
E-89-A Telephone Repeater
EM200 Ear Mike
Harris TSP-21 Telephone Test Set Plus (like but set, but belt-clip & operators headset
H-161E/U Headset used in Crew Served Vehicles (2 connectors)
H-207A/VRC Handset
H-250/U Handset with Noise Canceling mike
H-251A/U Headset (earphones)
H-33F/PT Handset
H-350/U Handset
HP 204 Audio Oscillator from HP 3350 Carrier Test Set (AN/USM-181 Telephone Test Set
HP 241A Audio Oscillator w/Radio Buttons
HS-30-A Headphones
KS8455 KS8455L2 Line Loop Tester Telephone Installers & Repairman's Meter
KY68 KY-68 Secure Field Telephone
LS-454/U Loudspeaker
LS-685/U Crystal Loudspeaker
M-80/U Handset (Microphone)
M-153/U Microphone, Voice Silencer (court reporter)
MAA Military Audio Accessories
Military Radio Headset/Mic Test Harness - U-229 breakout box
MRC-67A Amplifier-Speaker
Panasonic KX-TA824 Telephone System
PatchP Audio Patch Panel
Phones - telephones, telephone patents
Plantronics Supra SHS1585-01NC operator's head set
PRC-25 & PRC-77 Test Adapter (POWER connector breakout box)
SB-22 Field Telephone Switchboard
SB4170 Military Telephone Switchboard
SDAR Signal Design, Inc. 65630 Audio Recorder RD-609/TSQ-164 Communications Recorder
SidekickTandN Tempo Sidekick T&N Telephone Line Tester
TA1 TA-1 Military Field Telephone Set
TA1042 TA-1042A/U Digital Non-Secure Voice Terminal (DNVT)
TA312 TA-312 Military Field Telephone Set
TA341 TA-341/TT Military Touch Tone Desk Set
TA838 TA-838/TT Military Field Telephone Set
Telegraph
TelephoneToolKit Telephone Tool Kit
Telephone Poles - Utility, Power, Cable TV Poles
Telephone Tone and Probe
TS-585 Audio Level Meter
TS-2839
TS-3647/G, Control Orderwire Unit (COU), Telephone Test Set
U-229AA Audio Accessories
U-229 Pin Out
VIC-1 Vehicle Inter Communication
WE202 Western Electric 202 Dial Telephone Set
WE500 Western Electric 500 Dial Telephone (same as Bell System 500)
WE2500 Western Electric Touch Tone Phone
WE2554 Western Electric Wall Touch Tone Phone

References

TM 11-5830-263-10 Operator's Manual, Intercommunications Set, Vehicular, AN/VIC-3(V), Including:
Control, Indicator CD-82/VRC - NSN 5895-01-382-3221
Control, Intercommunication Set C-12357/VRC - NSN: 5830-01-382-3218
Control, Intercommunication Set C-12358/VRC - NSN: 5830-01-382-3209
Interface Unit, Communication Equipment C-12359/VRC - NSN: 5830-01-382-3209
Loudspeaker, Permanent Magnet, LS-688/VRC - NSN: 5965-01-382-3222
1 May 1997

TM 11-5830-263-20&P Unit Maintenance Manual, (Including Repair Parts and Special Tools List), Intercommunication Set, Vehicular, AN/VIC-3(V), Including:
Control, Indicator CD-82/VRC - NSN 5895-01-382-3221
Control, Intercommunication Set C-12357/VRC - NSN: 5830-01-382-3218
Control, Intercommunication Set C-12358/VRC - NSN: 5830-01-382-3209
Interface Unit, Communication Equipment C-12359/VRC - NSN: 5830-01-382-3209
Loudspeaker, Permanent Magnet, LS-688/VRC - NSN: 5965-01-382-3222
1 April 2000 (Including C1 2004)

The 20&P manual has a lot of technical information on the system and it's parts.
The following headsets are covered:
Combat Vehicle Crewman (CVC) H374
ACAPS and CAPS
Command and Control Headset (single earphone & Boom mike)
